Starting System & Charging System: Location

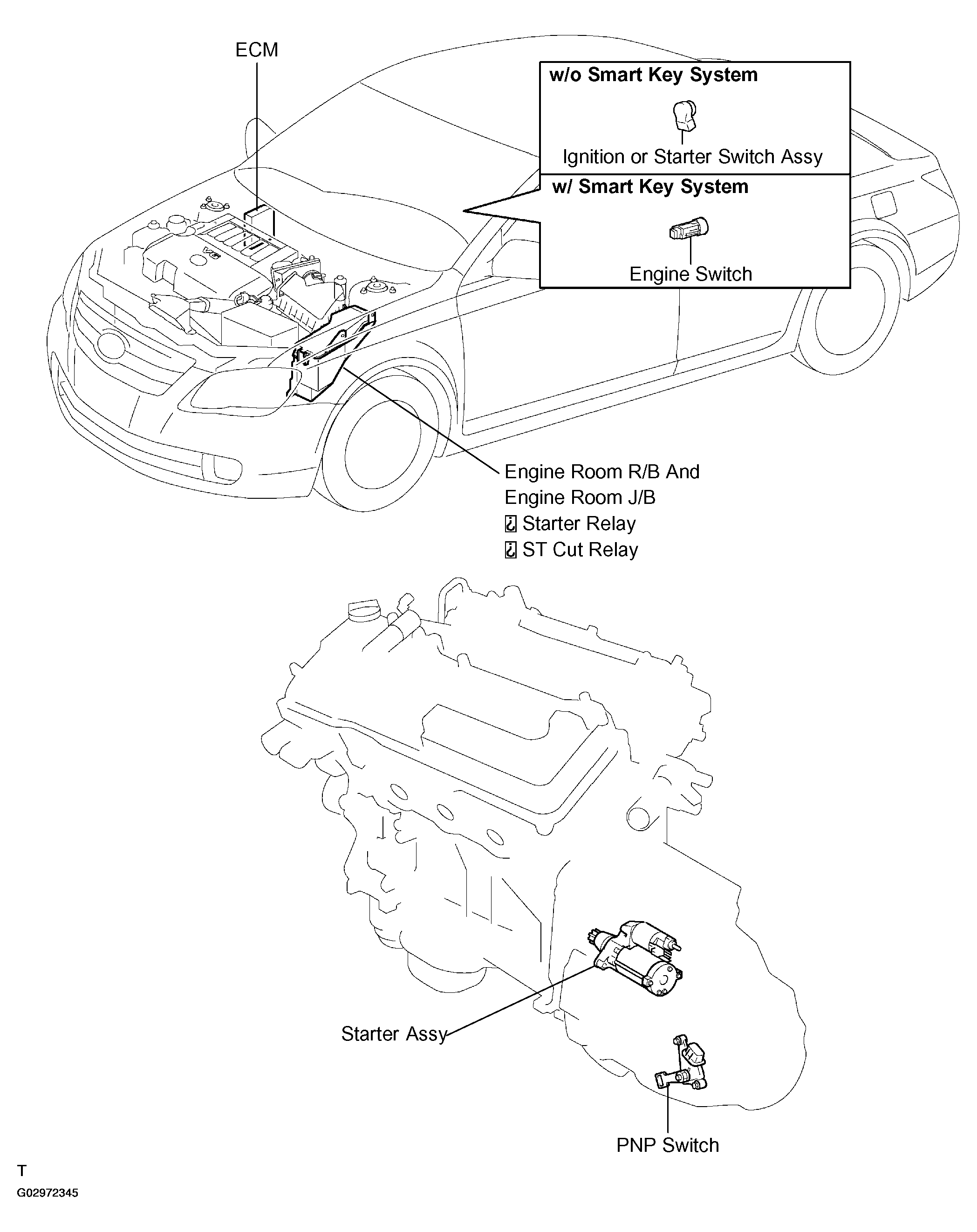

Fig 1: Identifying Starting System (2GR-FE) Parts Location
G02972345Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
