Engine Exhaust Assembly: Components

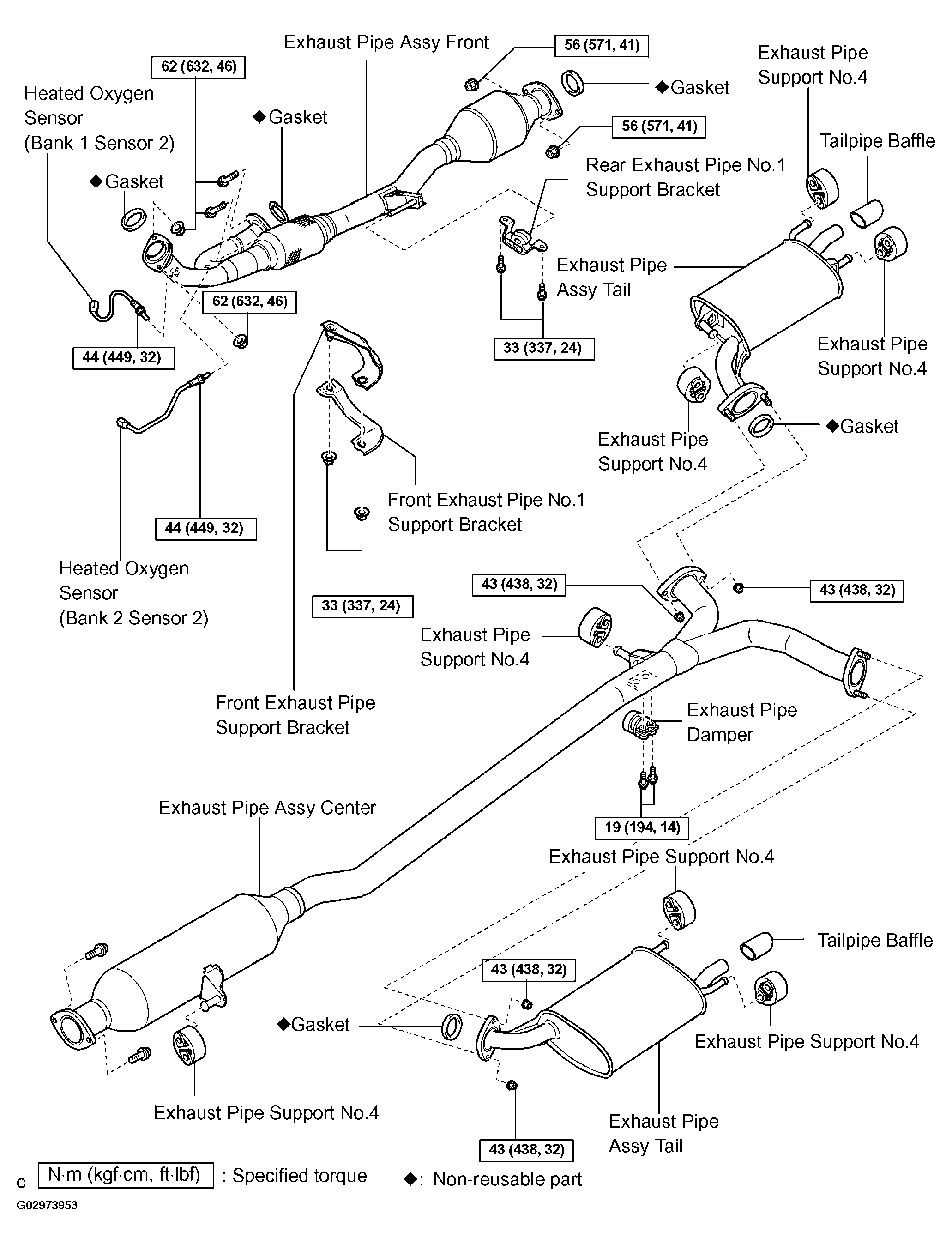

Fig 1: Identifying Exhaust Pipe Assy Components (2GR-FE)
G02973953Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
