Remote Operation Via Master Switch Is Impossible In The Other Door (Operation Via Each Door Switch Is Possible): Wiring Diagram

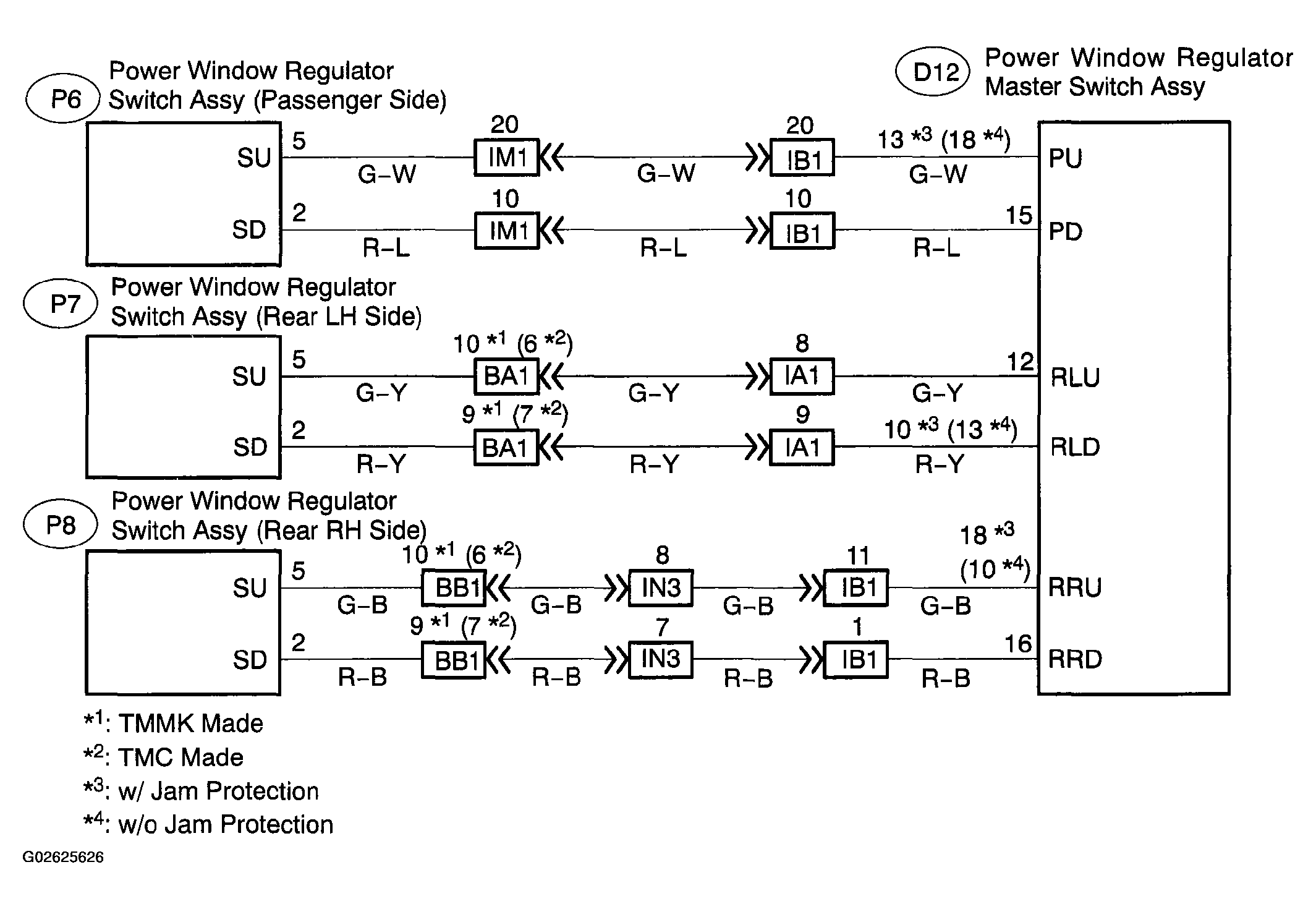

Fig 1: Remote Operation Via Master Switch Impossible In Other Door Wiring Diagram
G02625626Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
