Key Lock-In Prevention Function Does Not Work Properly (Manual Operation And Interlocked With Key Are Active): Wiring Diagram

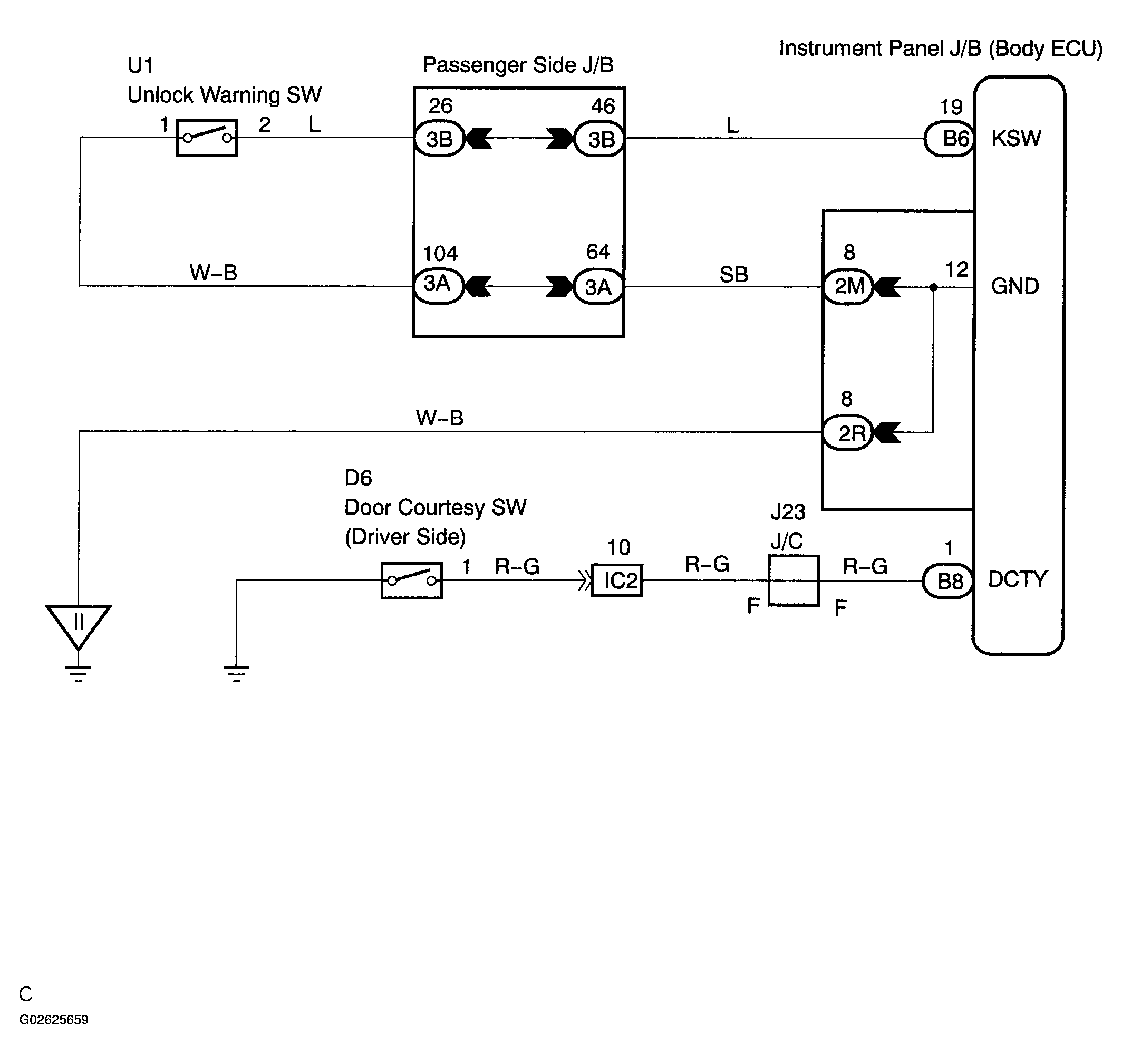

Fig 1: Key Lock-In Prevention Function Not Work Properly Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
