Circuit Description

The CAN main bus line and DLC3 sub bus line may have a disconnection when the resistance between terminals 6 (CANH) and 14 (CANL) of the DLC3 is more than 69 Ω.

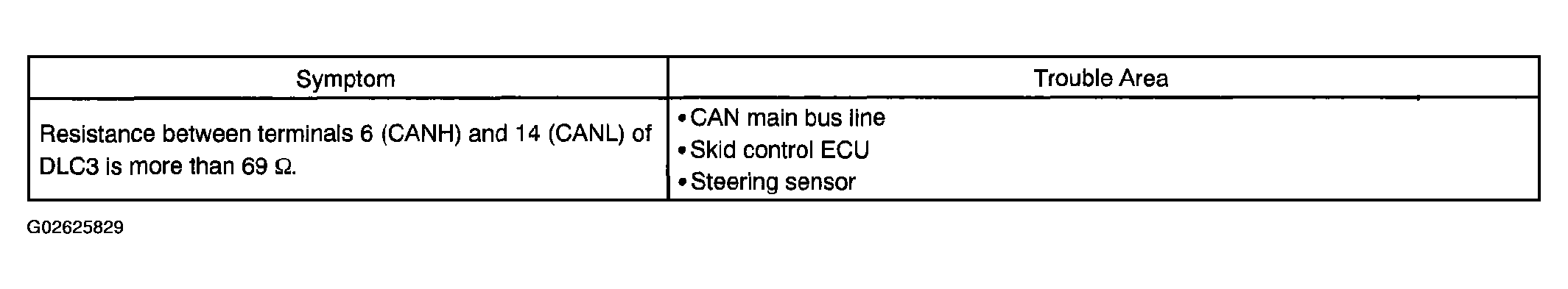

Fig 1: DTC Detecting Condition Chart

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
