Circuit Description

This circuit indicates failure of the stop lamp switch signal and the cruise control signal inside ECM.

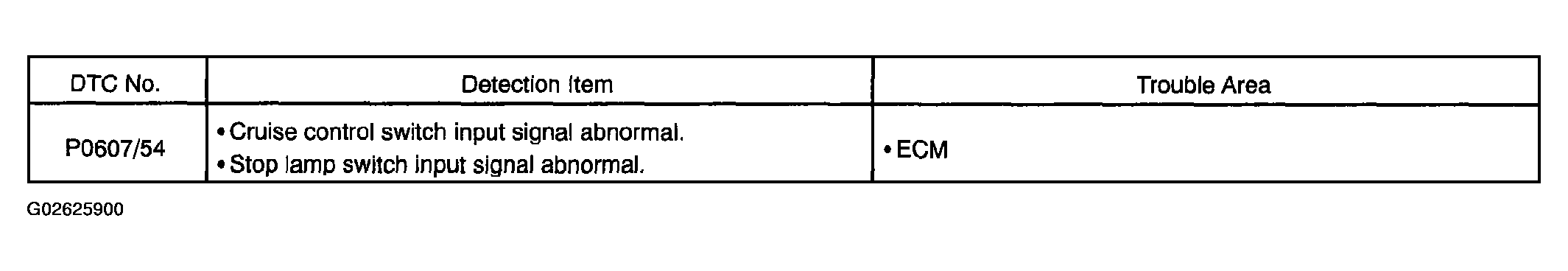

Fig 1: DTC P0607/54 Detection Condition And Trouble Area
G02625900Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
