DTC P2014, P2016, P2017: Intake Manifold Runner Position Sensor/Switch Circuit Low/High (Bank 1): Wiring Diagram

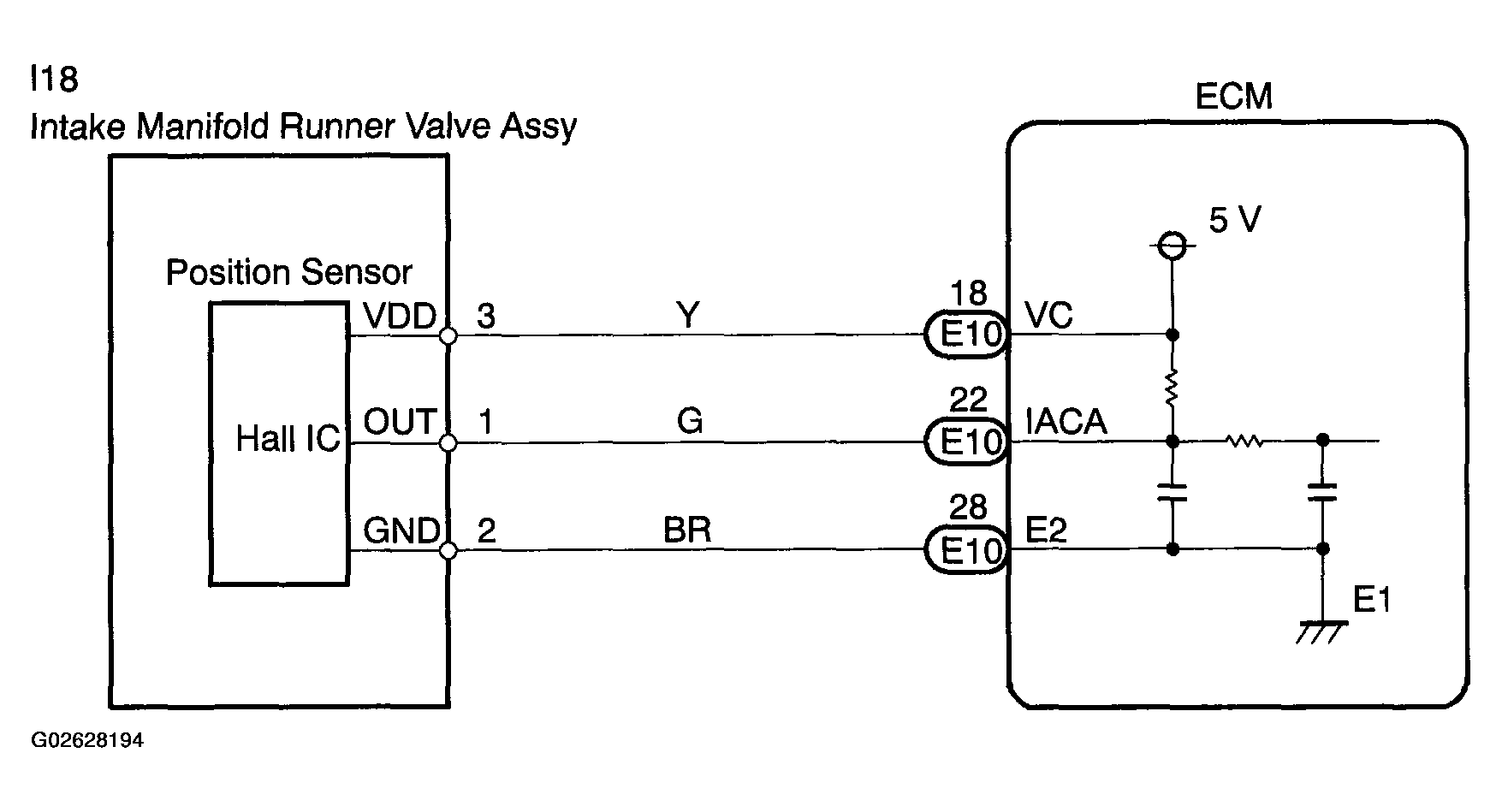

Fig 1: Intake Manifold Runner Position Sensor/Switch Circuit Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
