Circuit Description

The Intake Air Temperature (IAT) sensor, mounted on the Mass Air Flow (MAF) meter, monitors the intake air temperature. The IAT sensor has a thermistor that varies its resistance depending on the temperature of the intake air. When the air temperature is low, the resistance in the thermistor increases. When the temperature is high, the resistance drops. The variations in resistance are reflected as voltage changes to the ECM terminal (see Fig 1).

The IAT sensor is connected to the ECM (see below). The 5 V power source voltage in the ECM is applied to the IAT sensor from terminal THA via resistor R.

That is, the resistor R and the IAT sensor are connected in series. When the resistance value of the IAT sensor changes in accordance with changes in the IAT, the voltage at terminal THA also changes. Based on this signal, the ECM increases the fuel injection volume to improve the driveability during cold engine operation.

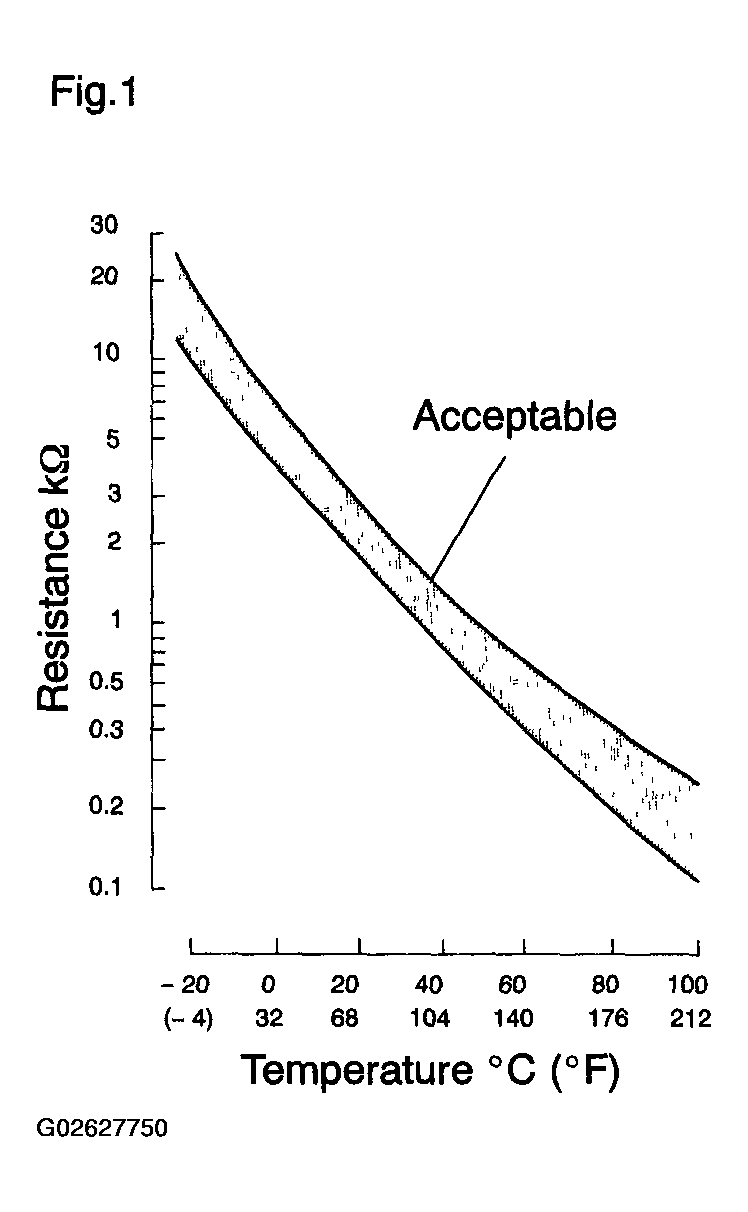

Fig 1: DTC P0113 Intake Air Temperature - Circuit Description Graph
G02627750Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

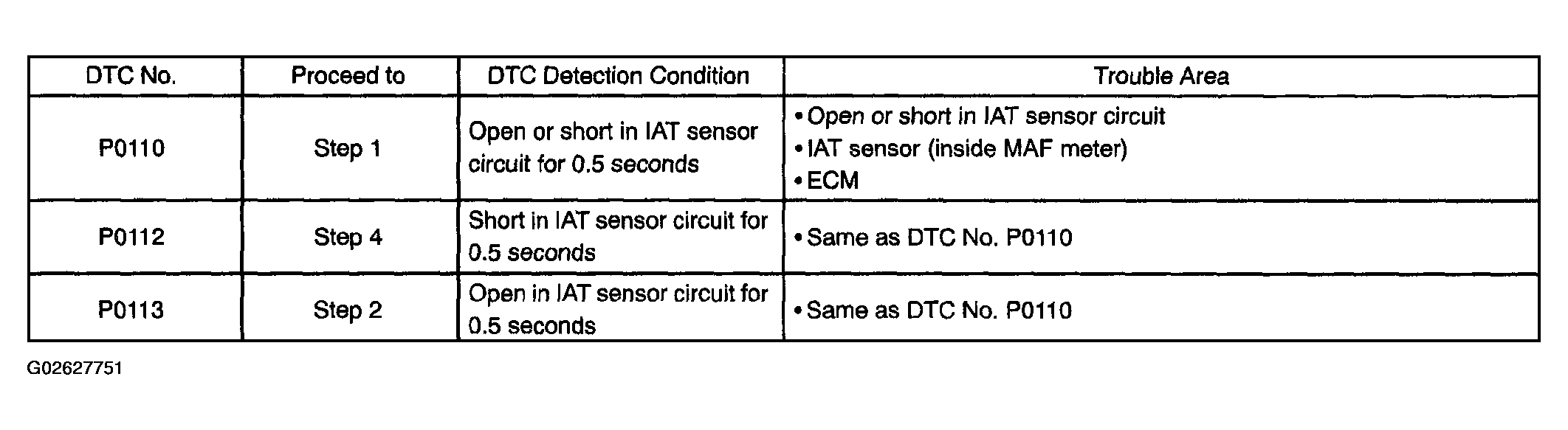

Fig 2: DTC P0113 Intake Air Temperature - DTC Detection Chart
G02627751Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

After confirming DTC P0110, P0112 or P0113, use the hand-held tester or the OBD II scan tool to confirm the IAT from the ALL menu (to reach the ALL menu: DIAGNOSIS / ENHANCED OBD II / DATA LIST / ALL).

DATA LIST

Temp. Displayed Malfunction
-40°C (-40°F) Open circuit
140°C (284°F) or more Short circuit
