Circuit Description

Refer to DTC P2120  .

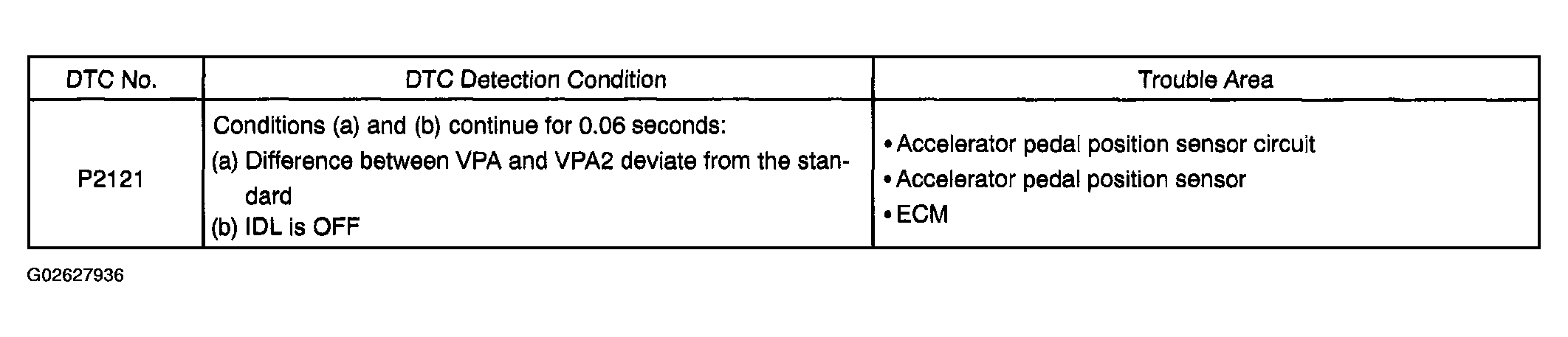

Fig 1: DTC P2121 - DTC Trouble Detection Chart
G02627936Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
