Starting & Charging: Preparation

SST

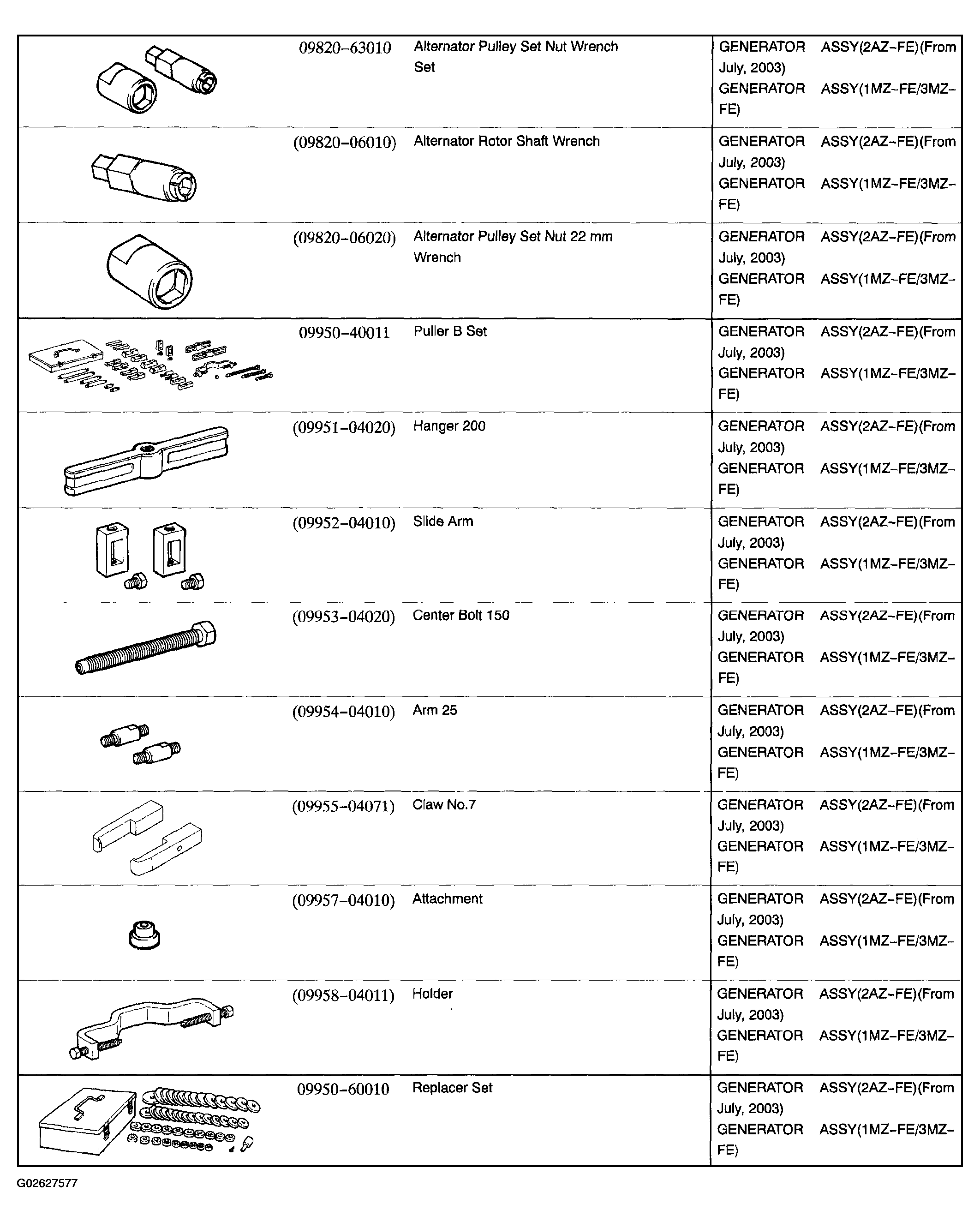

Fig 1: Starting And Charging Special Tool Description Chart (1 Of 2)
G02627577Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

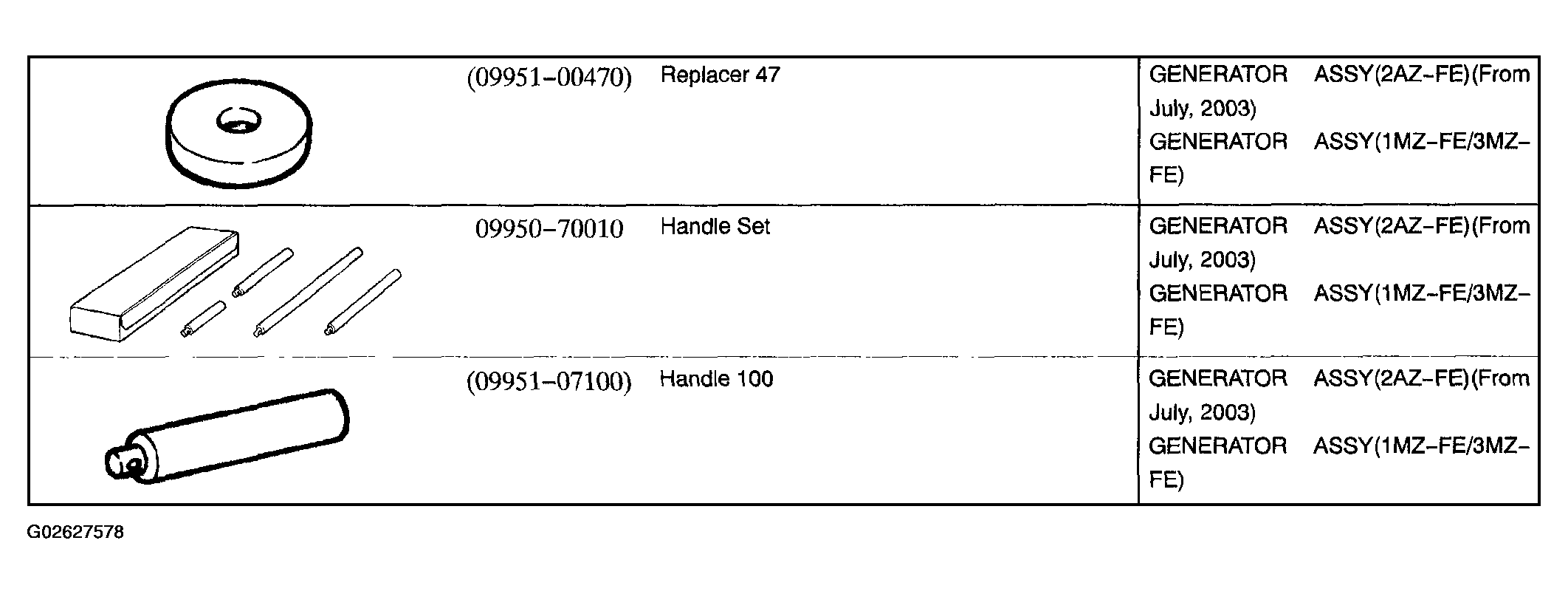

Fig 2: Starting And Charging Special Tool Description Chart (2 Of 2)
G02627578Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Recommended Tools

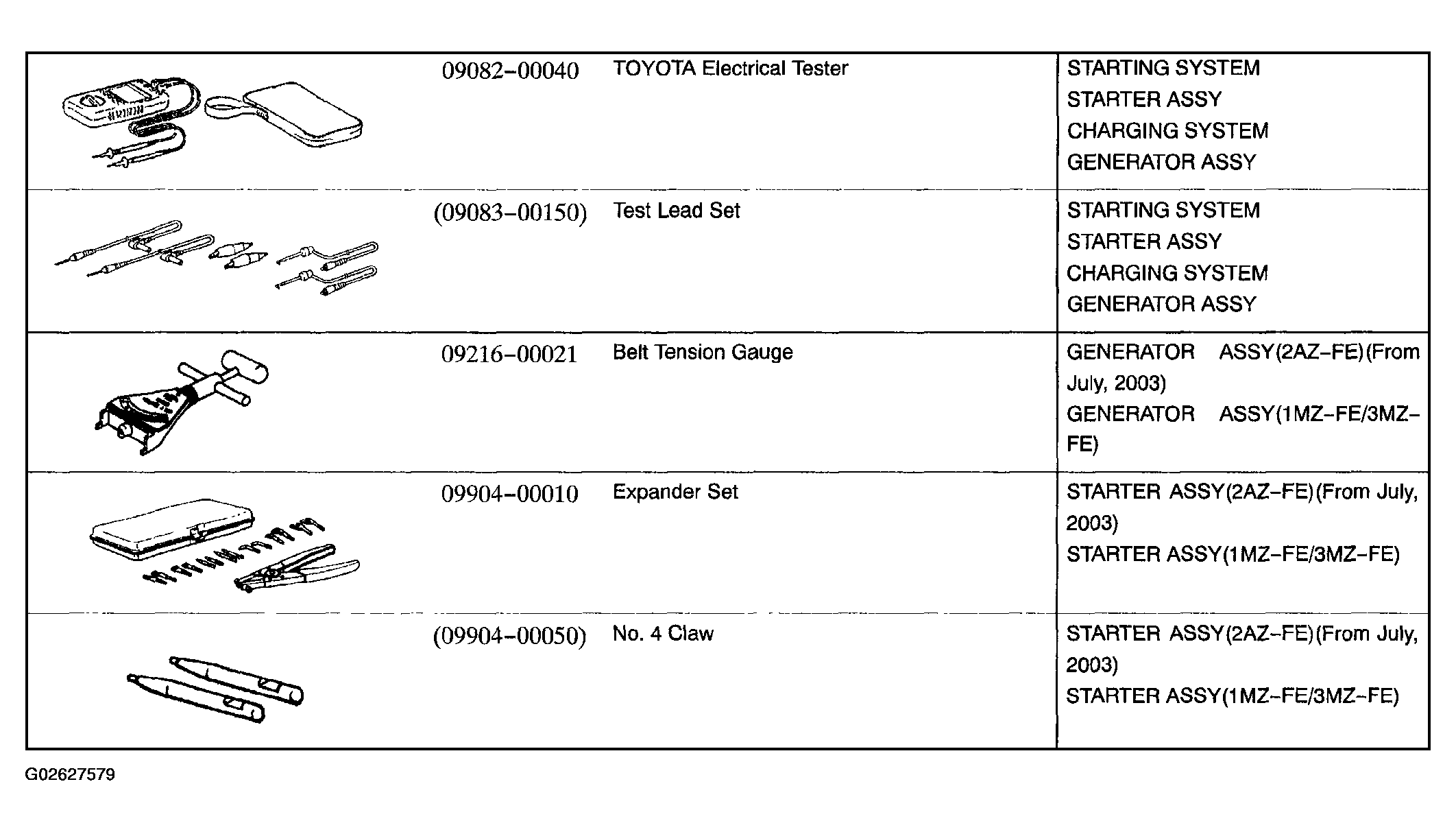

Fig 3: Starting And Charging Recommended Tools Chart
G02627579Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Equipment

STARTING AND CHARGING EQUIPMENT DESCRIPTION

Ammeter (A)
Dial indicator
Ohmmeter
Sandpaper (#400)
Service Wire Harness
Torque wrench
Vernier calipers
