Inspection Procedure

  1. CHECK ALL WINDOW SWITCH OPERATION
    1. Check that the power windows operate when the all window switch is operated.

    Result:

    RESULT

    Result Proceed to
    All windows do not operate A
    Only driver side power window does not operate B

    A: Go to next step.

    B: Go to step 8

  2. CHECK POWER WINDOW BASIC OPERATION
    1. Check that the power windows operate when the power window regulator master switch or power window regulator switch is operated.

    OK: Power windows operate normally.

    NG: OTHER PROBLEM (See  PROBLEM SYMPTOMS TABLE   )

    OK: Go to next step.

  3. CHECK CONVERTIBLE ROOF CONTROL SWITCH OPERATION
    1. Check that all windows operate when convertible roof switch is operated.

    OK: All windows operate normally.

    NG: OTHER PROBLEM (See  PROBLEM SYMPTOMS TABLE   )

    OK: Go to next step.

  4. INSPECT ALL WINDOW SWITCH (See  INSPECTION   )

    NG: REPLACE ALL WINDOW SWITCH

    OK: Go to next step.

  5. CHECK WIRE HARNESS (ALL WINDOW SWITCH - CONVERTIBLE ROOF CONTROL ECU AND BODY GROUND)
    1. Disconnect the P19 switch connector.
    2. Disconnect the C18 ECU connector.
    3. Measure the resistance of the wire harness side connectors.

    Standard:

    RESISTANCE CHECK SPECIFIED CONDITION (1 OF 4)

    Tester Connection Specified Condition
    P19-3 (CLS)-C18-3 (SU) Below 1 Ω
    P19-5 (OPEN) - C18-8 (SD) Below 1 Ω
    P19-6 (E) - Body ground Below 1 Ω
    P19-3 (CLS) or C18-3 (SU) - Body ground 10 kΩ or higher
    P19-5 (OPEN) or C18-8 (SD) - Body ground 10 kΩ or higher

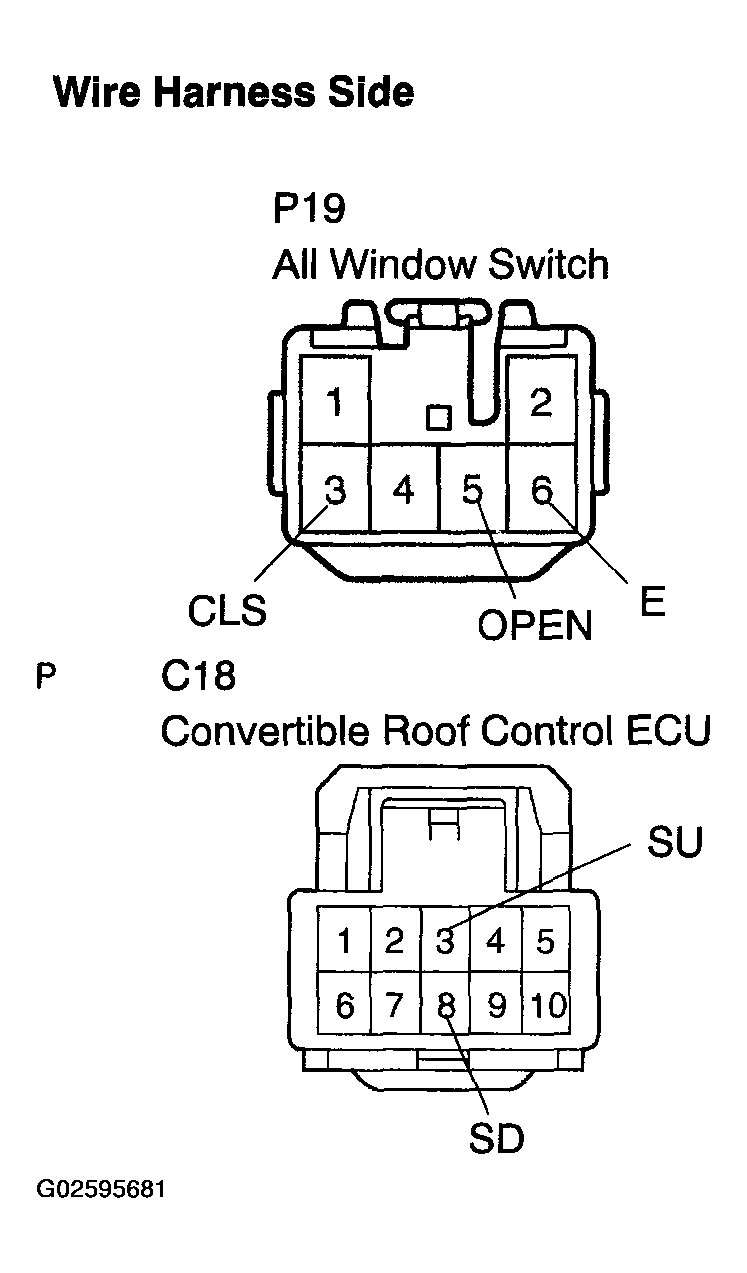

    Fig 1: Checking Wire Harness (All Window Switch - Convertible Roof Control ECU And Body Ground)
    G02595681Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG: REPAIR OR REPLACE HARNESS AND CONNECTOR

    OK: Go to next step.

  6. INSPECT QUARTER WINDOW MOTOR LH/RH (See  INSPECTION   )

    NG: REPLACE QUARTER WINDOW MOTOR LH/RH

    OK: Go to next step.

  7. CHECK WIRE HARNESS (QUARTER WINDOW MOTOR LH/RH - CONVERTIBLE ROOF CONTROL ECU)
    1. Check the wire harness between the quarter window motor LH and convertible roof control ECU.
      1. Disconnect the Q1 motor connector.
      2. Disconnect the C17 ECU connector.
      3. Measure the resistance of the wire harness side connectors.

      Standard:

      RESISTANCE CHECK SPECIFIED CONDITION (2 OF 4)

      Tester Connection Specified Condition
      Q1-1 - C17-5 (LRU) Below 1 Ω
      Q1 - 2 - C17-1 (LRD) Below 1 Ω
      Q1-1 or C17-5 (LRU) - Body ground 10 kΩ or higher
      Q1-2 or C17 1 (LRD) - Body ground 10 kΩ or higher

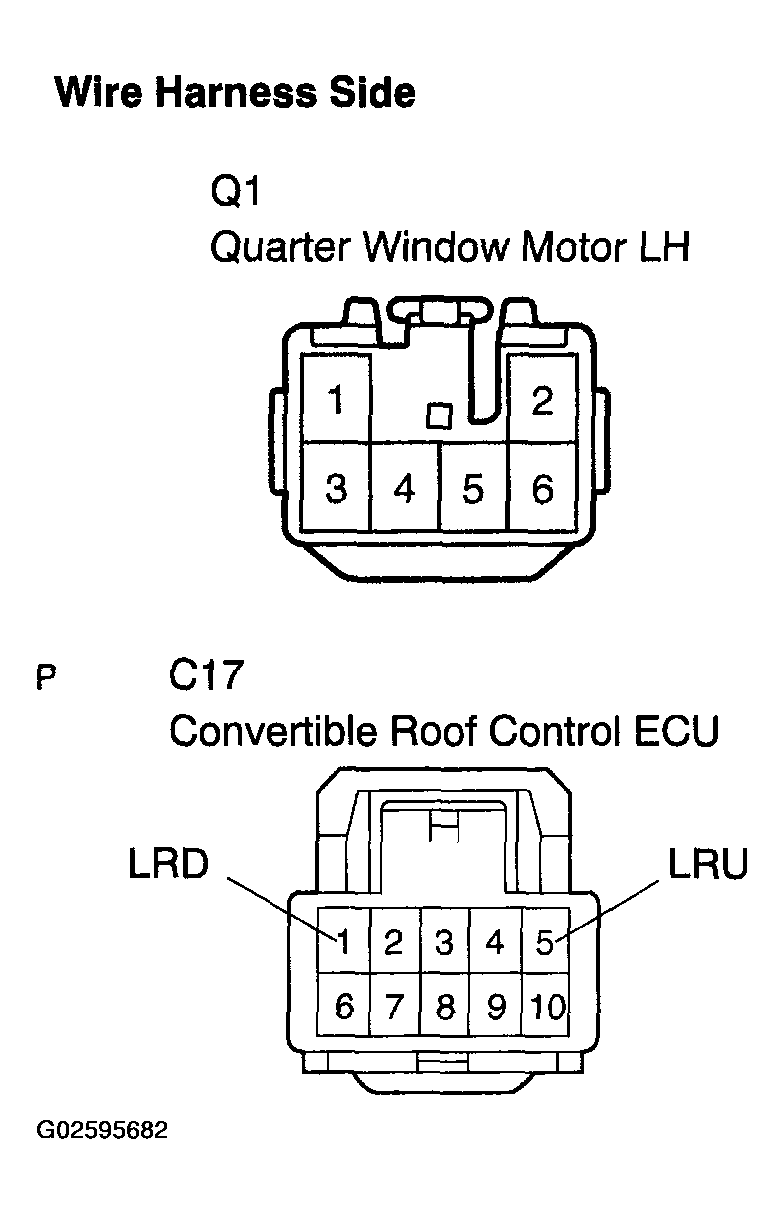

      Fig 2: Checking Wire Harness (Quarter Window Motor LH/RH - Convertible Roof Control ECU)
      G02595682Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Check the wire harness between the quarter window motor RH and convertible roof control ECU.
      1. Disconnect the Q2 motor connector.
      2. Disconnect the C19 ECU connector.
      3. Measure the resistance of the wire harness side connectors.

    Standard:

    RESISTANCE CHECK SPECIFIED CONDITION (3 OF 4)

    Tester Connection Specified Condition
    Q2-1 - C19-12 (RRU) Below 1 Ω
    Q2-2 - C19-5 (RRD) Below 1 Ω
    Q2-1 or C19-12 (RRU) - Body ground 10 kΩ or higher
    Q2-2 or C19 5 (RRD) - Body ground 10 kΩ or higher

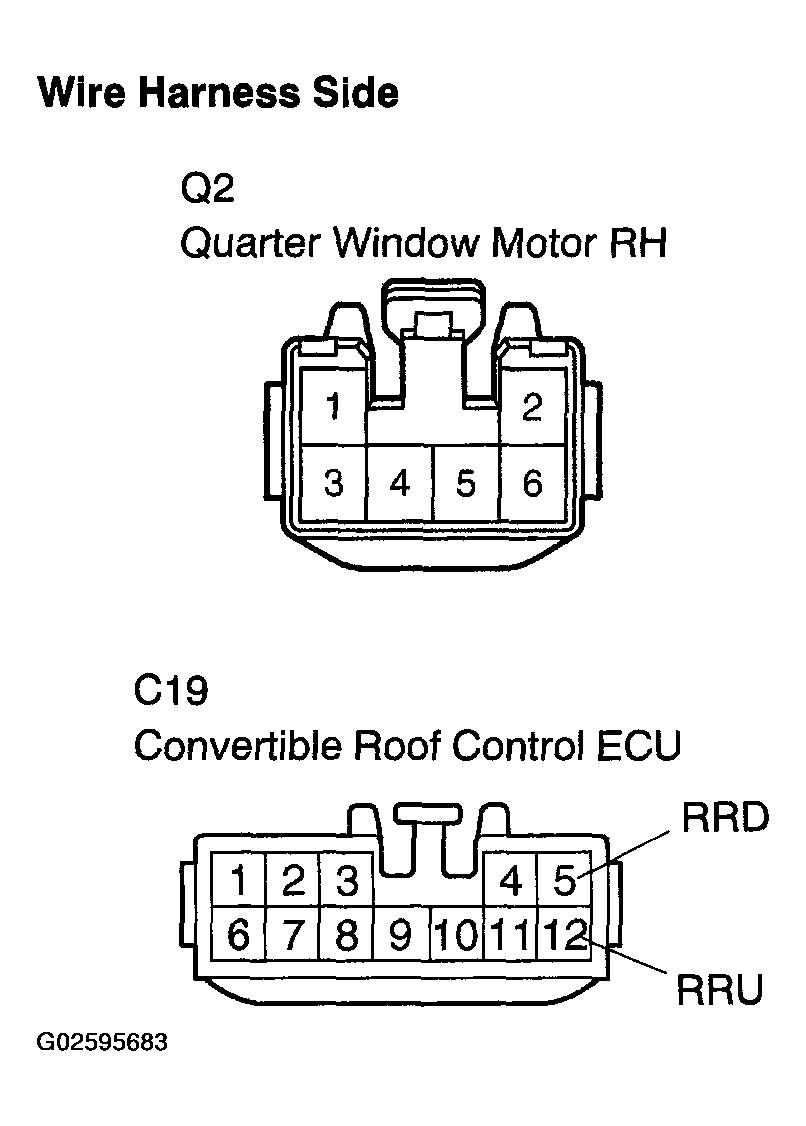

    Fig 3: Identifying Quarter Window Motor RH And Convertible Roof Control ECU Connector Terminals
    G02595683Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG: REPAIR OR REPLACE HARNESS AND CONNECTOR

    OK: REPLACE CONVERTIBLE ROOF CONTROL ECU

  8. INSPECT POWER WINDOW REGULATOR MASTER SWITCH ASSY (See  INSPECTION   )

    NG: REPLACE POWER WINDOW REGULATOR MASTER SWITCH ASSY

    OK: Go to next step.

  9. CHECK WIRE HARNESS (POWER WINDOW REGULATOR MASTER SWITCH ASSY - CONVERTIBLE ROOF CONTROL ECU)
    1. Disconnect the D8 switch connector.
    2. Disconnect the C18 ECU connector.
    3. Measure the resistance of the wire harness side connectors.

    Standard:

    RESISTANCE CHECK SPECIFIED CONDITION (4 OF 4)

    Tester Connection Specified Condition
    D8-5 (PDD) - C18-4 (DD) Below 1 Ω
    D8-9 (PDU) - C18-7 (TDU) Below 1 Ω
    D8-5 (PDD) or C18-4 (DD) - Body ground 10 kΩ or higher
    D8-9 (PDU) or C18-7 (TDU) - Body ground 10 kΩ or higher

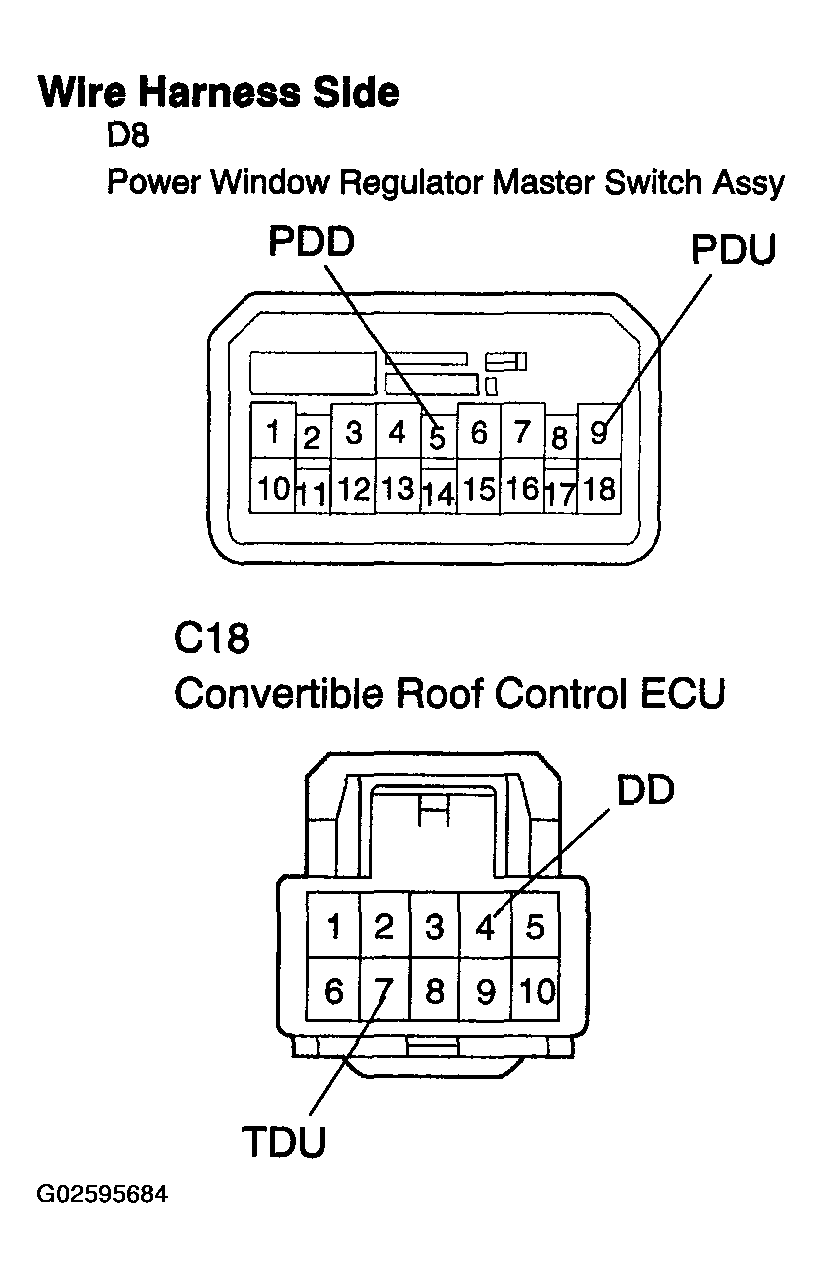

    Fig 4: Checking Wire Harness (Power Window Regulator Master Switch Assy - Convertible Roof Control ECU)
    G02595684Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG: REPAIR OR REPLACE HARNESS AND CONNECTOR

    OK: REPLACE CONVERTIBLE ROOF CONTROL ECU
