Power Windows Do Not Operate Using Master Switch: Wiring Diagram

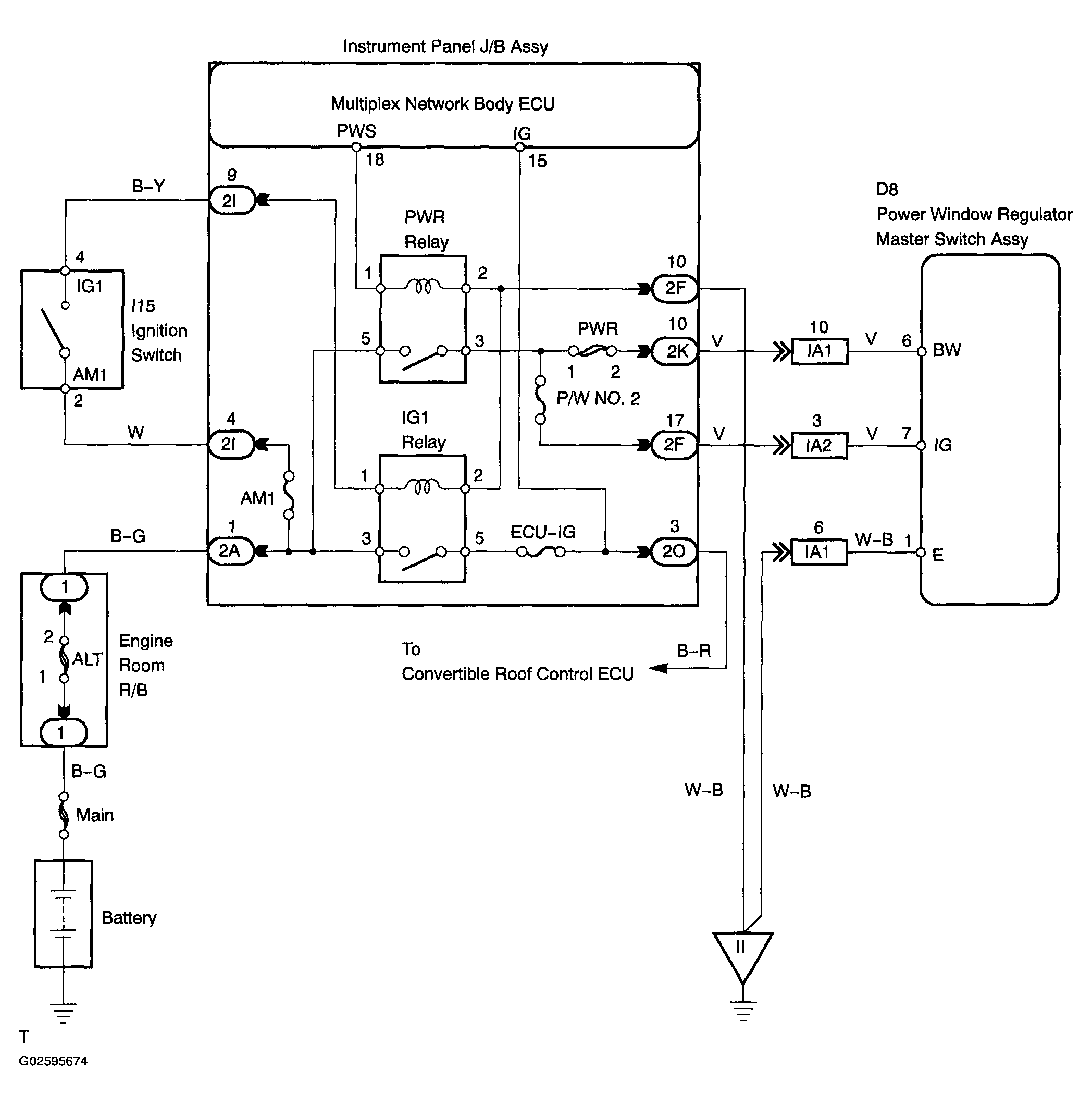

Fig 1: Wiring Diagram - Power Windows Do Not Operate Using Master Switch
G02595674Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
