Power Window Control System: Inspection

INSPECT POWER WINDOW MASTER SWITCH CONTINUITY

Driver's switch:

TESTER CONNECTOR SPECIFIED CONDITION

Switch position	Tester connection	Specified condition
UP	2 - 9, 17 - 18	Continuity
OFF	9 - 17, 17 - 18	Continuity
DOWN	2 - 18, 9 - 17	Continuity
DOWN AUTO	2 - 18, 9 - 17	Continuity

Passenger's switch (Window unlock):

TESTER CONNECTOR SPECIFIED CONDITION

Switch position	Tester connection	Specified condition
UP	1 - 11, 10 - 17	Continuity
OFF	1 - 17, 10 - 17	Continuity
DOWN	10 - 11, 1 - 17	Continuity

Passenger's switch (Window lock):

TESTER CONNECTOR SPECIFIED CONDITION

Switch position	Tester connection	Specified condition
UP	1 - 11	Continuity
OFF	1 - 10	Continuity
DOWN	10 - 11	Continuity

If continuity is not as specified, replace the switch.

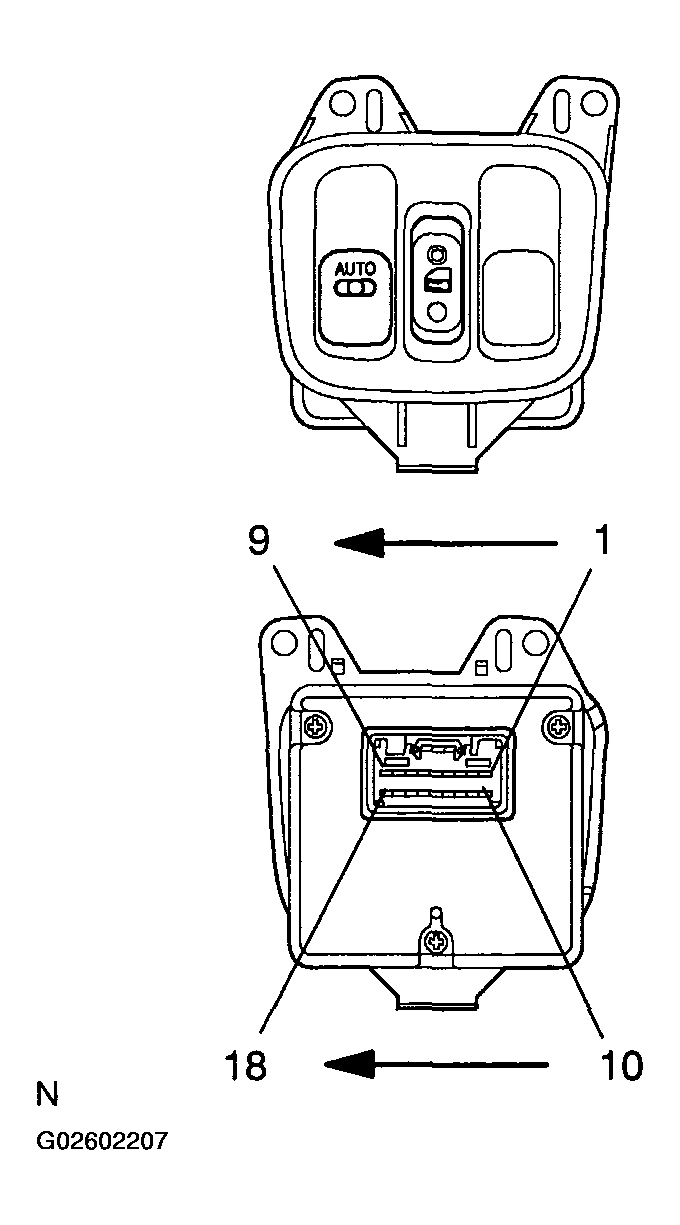

Fig 1: Inspecting Power Window Master Switch

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

INSPECT POWER MAIN RELAY CONTINUITY

TESTER CONNECTOR SPECIFIED CONDITION

Condition	Tester connection	Specified condition
Constant	1 - 2	Continuity
Apply B+ between terminals 1 and 2.	3 - 5	Continuity

If continuity is not as specified, replace the relay.

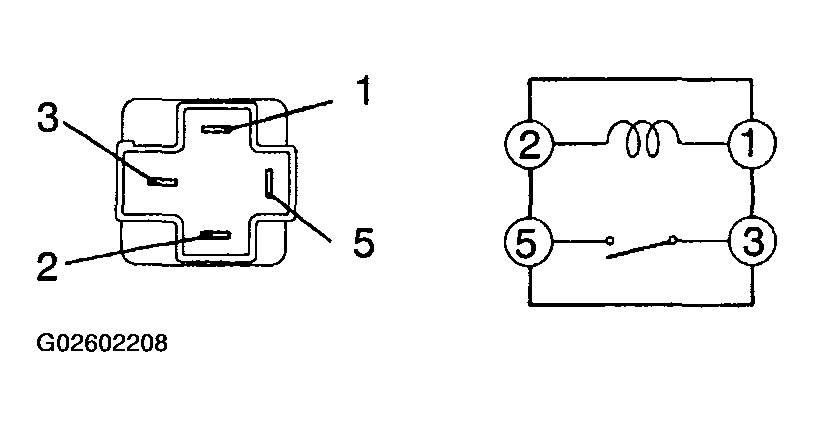

Fig 2: Inspecting Power Main Relay

Driver's door:
INSPECT POWER WINDOW MOTOR OPERATION
1. Connect the battery positive (+) lead to terminal 1 and the battery negative (-) lead to terminal 2, then check that the motor turns clockwise.

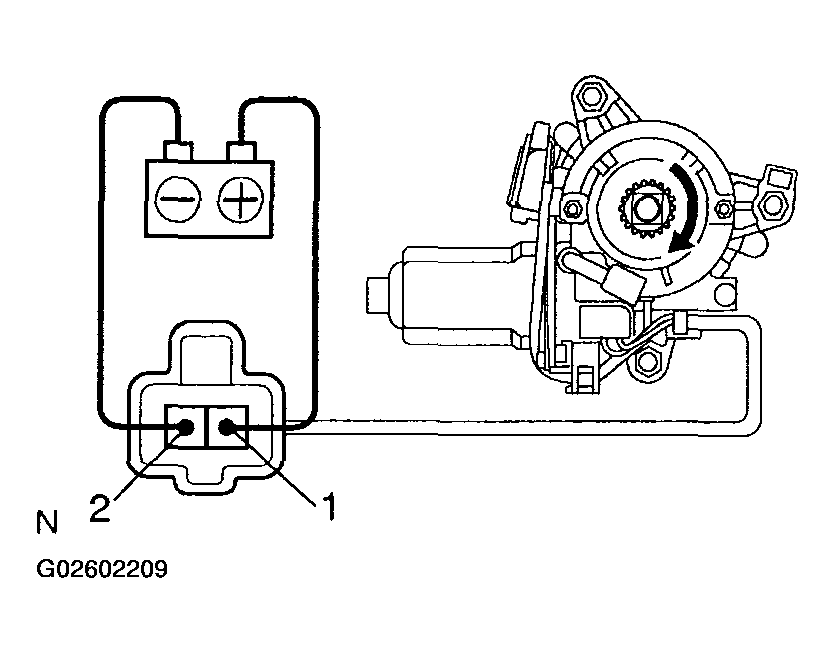

  Fig 3: Connecting Battery (+) Lead To Terminal 1 & Battery (-) Lead To Terminal 2
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Reverse the polarity, check that the motor turns counterclockwise.
If operation is not as specified, replace the motor.

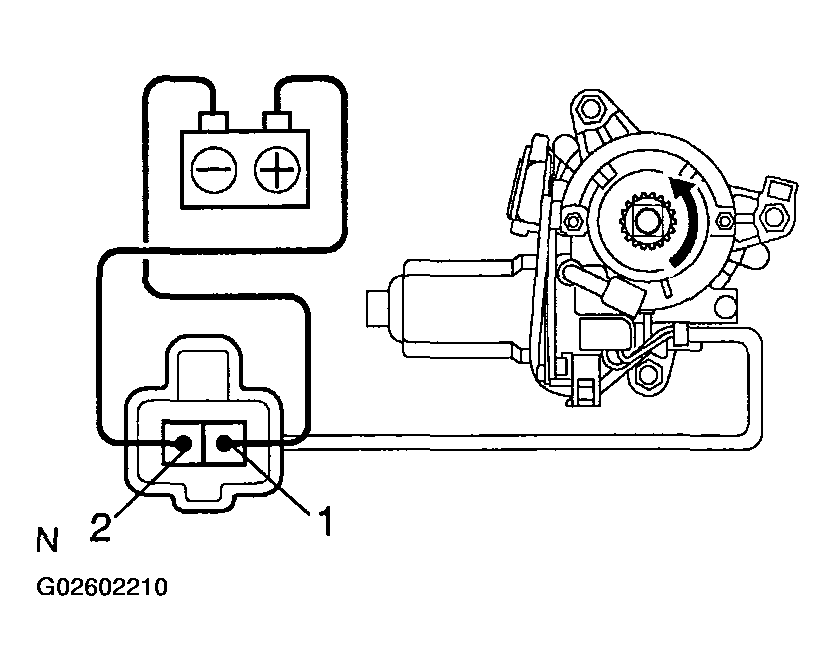

Fig 4: Checking Motor Turns Counterclockwise
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Passenger's door:
INSPECT POWER WINDOW MOTOR OPERATION
1. Connect the battery positive (+) lead to terminal 1 and the battery negative (-) lead to terminal 2, check that the motor turns clockwise.

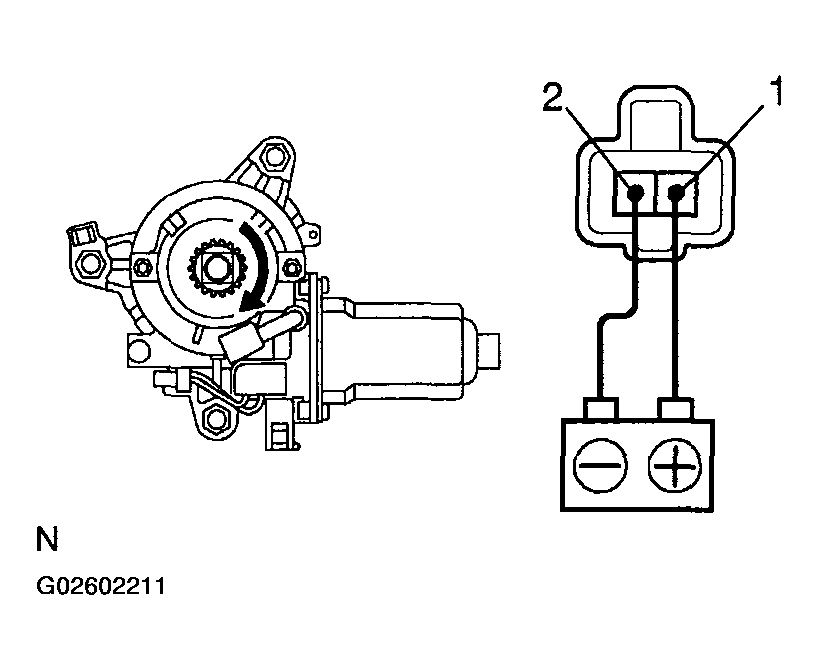

  Fig 5: Connecting Battery (+) Lead To Terminal 1 & Battery (-) Lead To Terminal 2
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Reverse the polarity, and check that the motor turns counterclockwise.
If operation is not as specified, replace the motor.

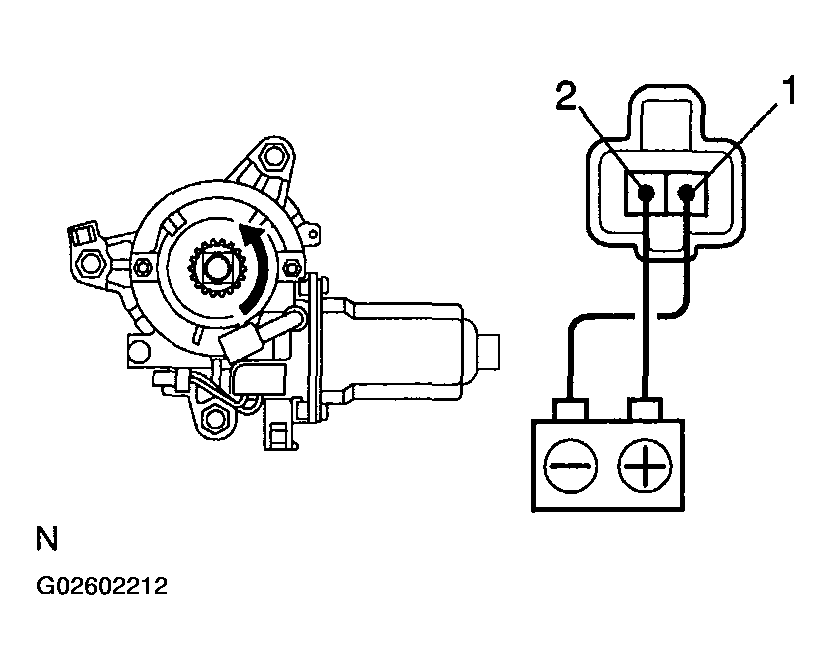

Fig 6: Checking Motor Turns Counterclockwise
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Driver's door:
INSPECT PTC OPERATION
1. Disconnect the connector from the window motor.
2. Connect the ammeter positive (+) lead to terminal 1 of the wire harness side connector and the negative (-) lead to ammeter negative terminal of the battery.
3. Connect the battery positive (+) lead to terminal 2 of the wire harness side connector, and raise the window to the fully closed position.

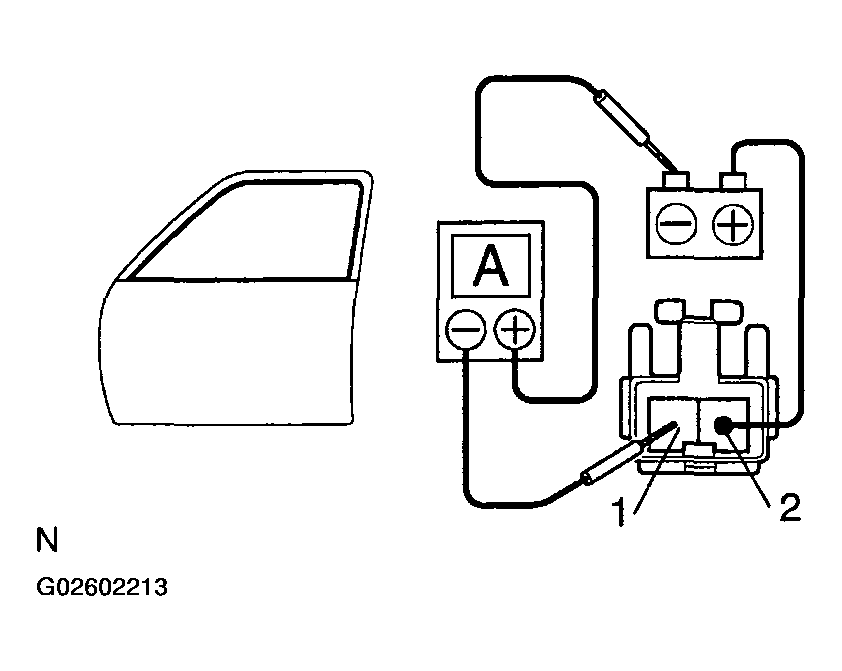

  Fig 7: Connecting Ammeter Positive (+) Lead To Terminal 1 & Battery Positive (+) Lead To Terminal 2
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Continue to apply voltage, and check that the current changes from approximately 14 A to less than 1 A within 4 to 90 seconds.
5. Disconnect the leads from terminals.
6. Approximately 90 seconds later, connect the battery positive (+) lead to terminal 1 and battery negative (-) lead to terminal 2, then check that the window begins to descend.

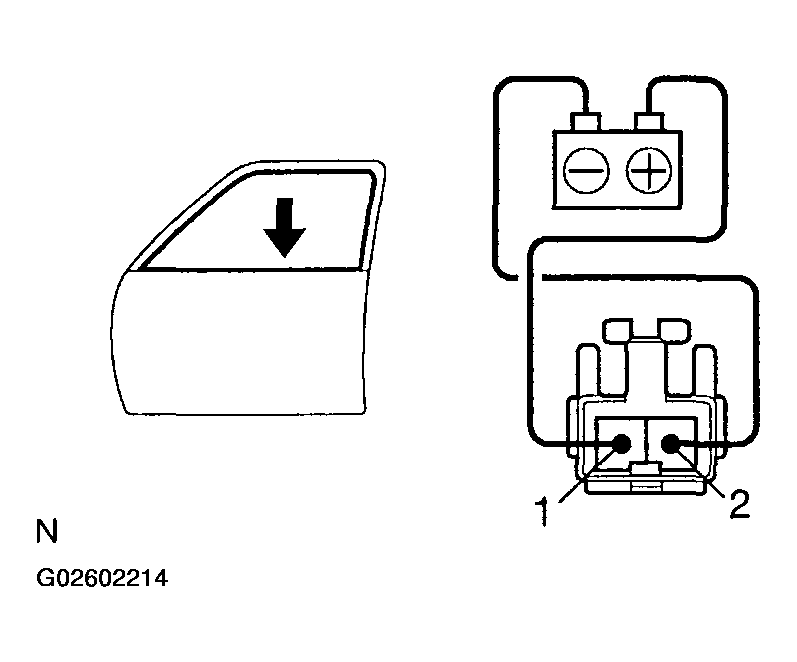

Fig 8: Connecting Battery (+) Lead To Terminal 1 & Battery (-) Lead To Terminal 2
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

If operation is not as specified, replace the motor.
Passenger's door:
INSPECT PTC OPERATION
1. Disconnect the connector from the power window switch.

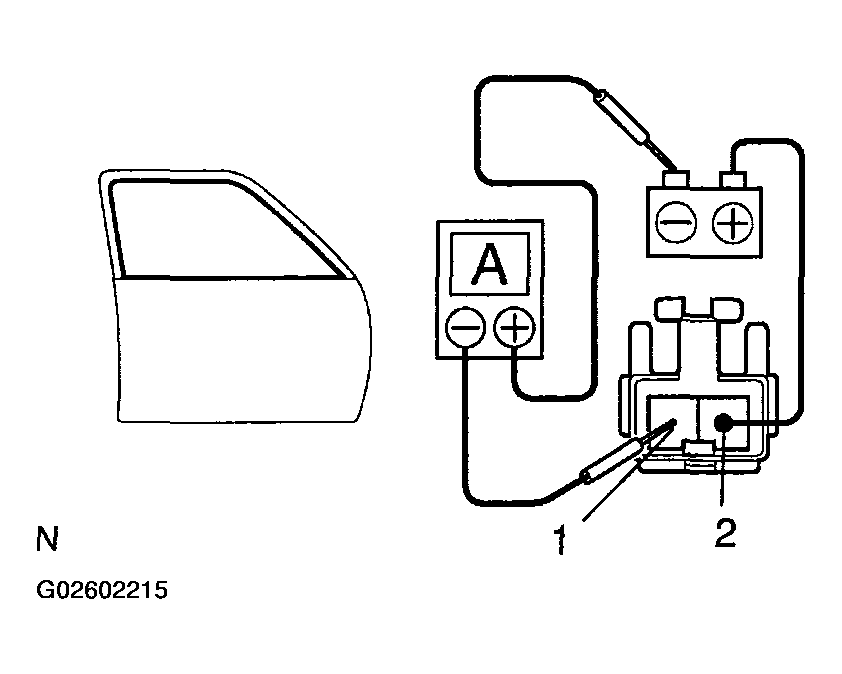

2. Connect the ammeter positive (+) lead to terminal 1 of the wire harness side connector and the ammeter negative (-) lead to negative terminal of the battery.
3. Connect the positive (+) lead from the battery to terminal 2 of the wire harness side connector, and raise the window to the fully closed position.

  Fig 9: Connecting Ammeter Positive (+) Lead To Terminal 1 & Battery Positive (+) Lead To Terminal 2
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Continue to apply voltage, and check that the current changes from approximately 14 A to less than 1 A within 4 to 90 seconds.
5. Disconnect the leads from terminals.

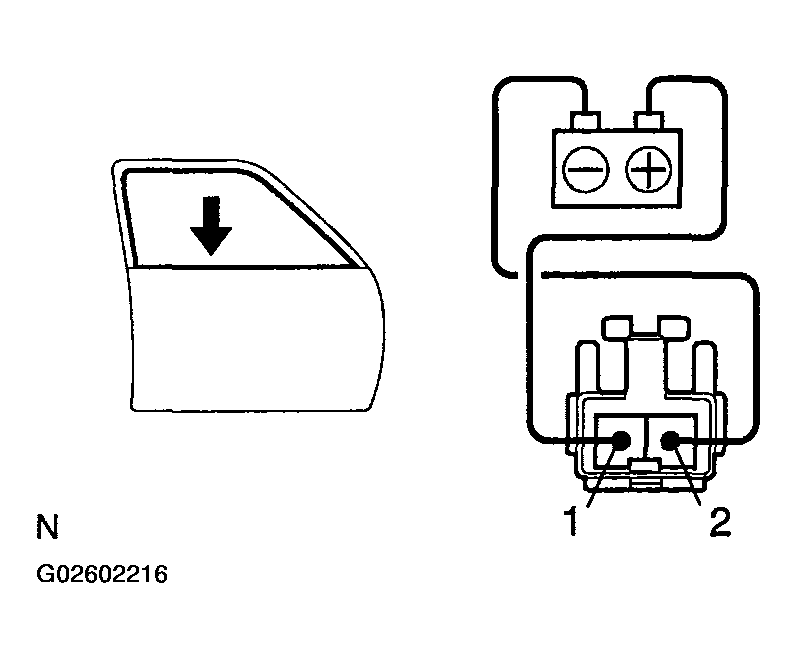

6. Approximately 90 seconds later, connect the battery positive (+) lead to terminal 1 and the battery negative (-) lead to terminal 2, then check that the window begins to descend.
Fig 10: Connecting Battery (+) Lead To Terminal 1 & Battery (-) Lead To Terminal 2
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

If operation is not as specified, replace the motor.
