Fuel Tank And Line: Components

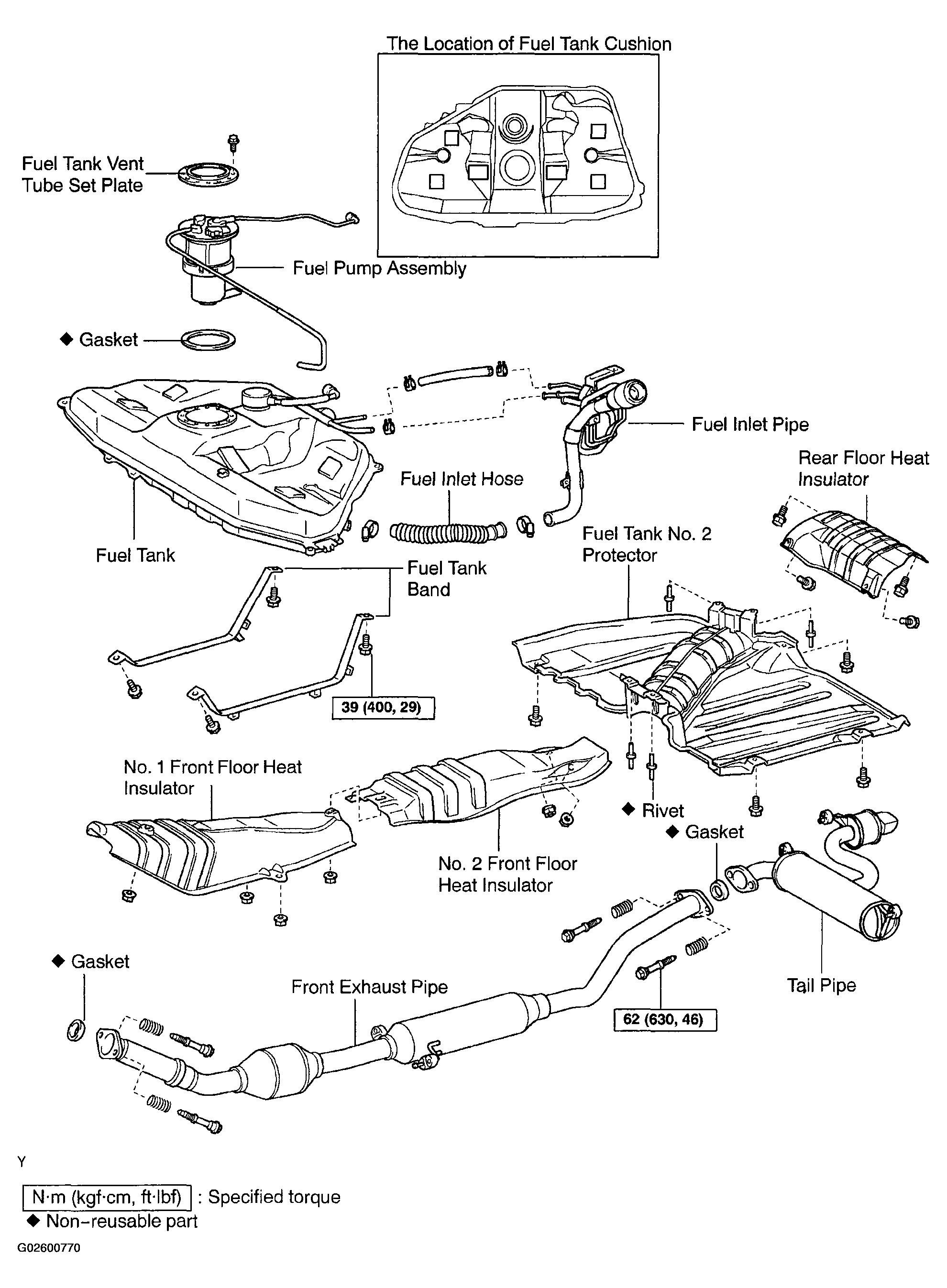

Fig 1: Identifying Fuel Tank & Line Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
