Knock Sensor: Components

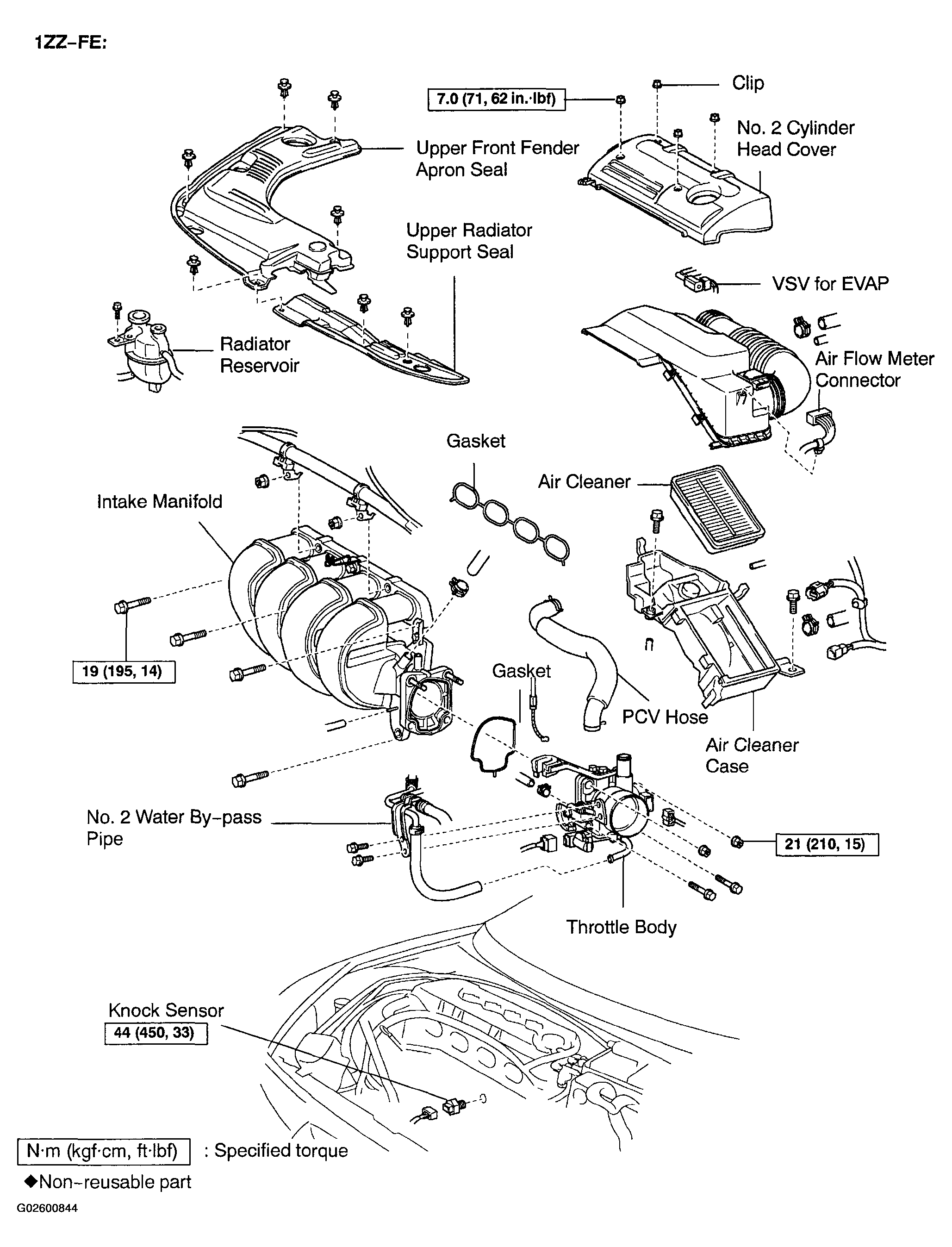

Fig 1: Identifying Knock Sensor Components (1ZZ-FE)
G02600844Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

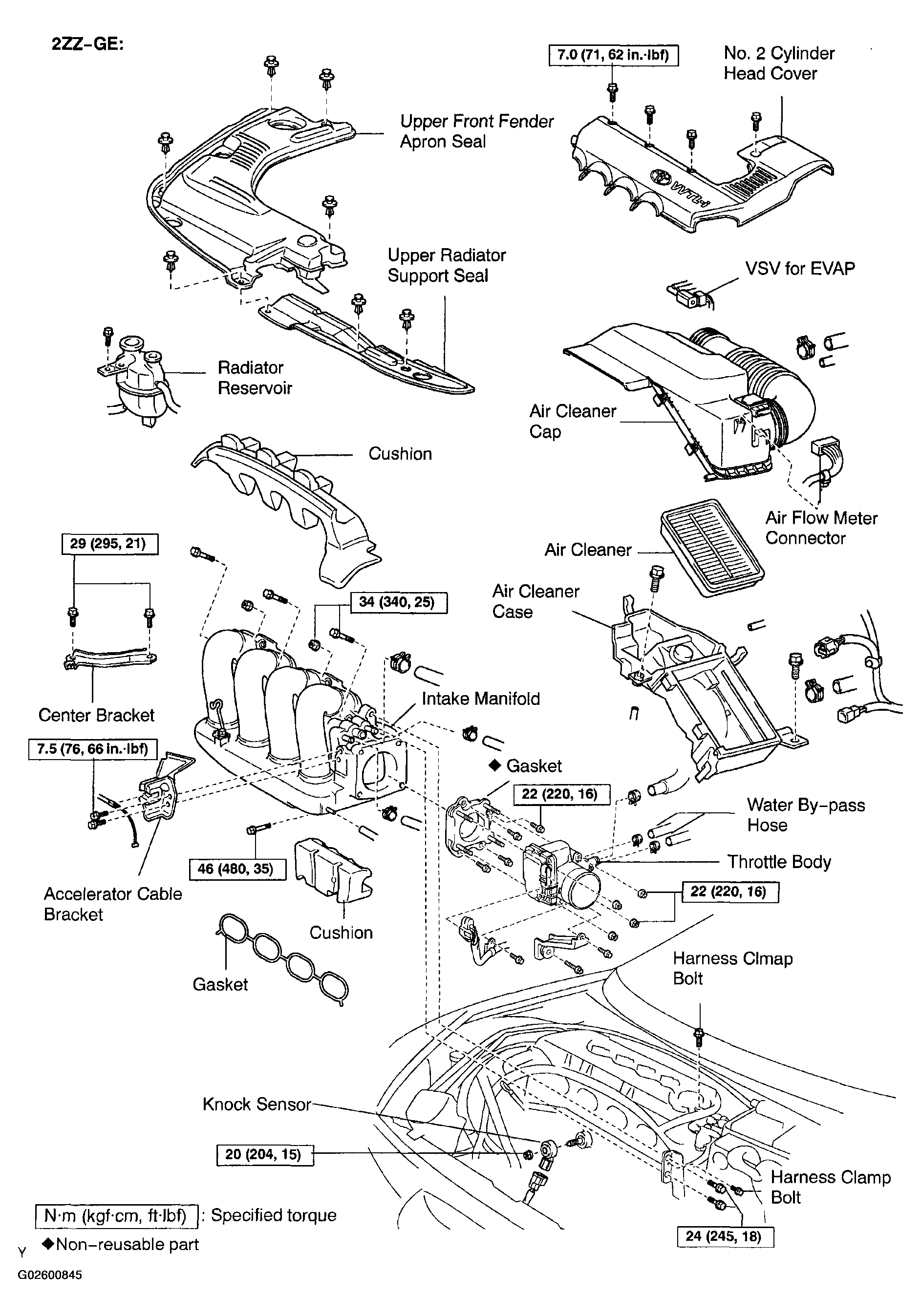

Fig 2: Identifying Knock Sensor Components (2ZZ-GE)
G02600845Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
