Knock Sensor: Inspection

(See  REMOVAL   or  REMOVAL   )

(See  REMOVAL  )

(See  REMOVAL  )

REMOVE KNOCK SENSOR

1. Disconnect the knock sensor connector.
2. Using SST, remove the knock sensor.

   SST 09816-30010

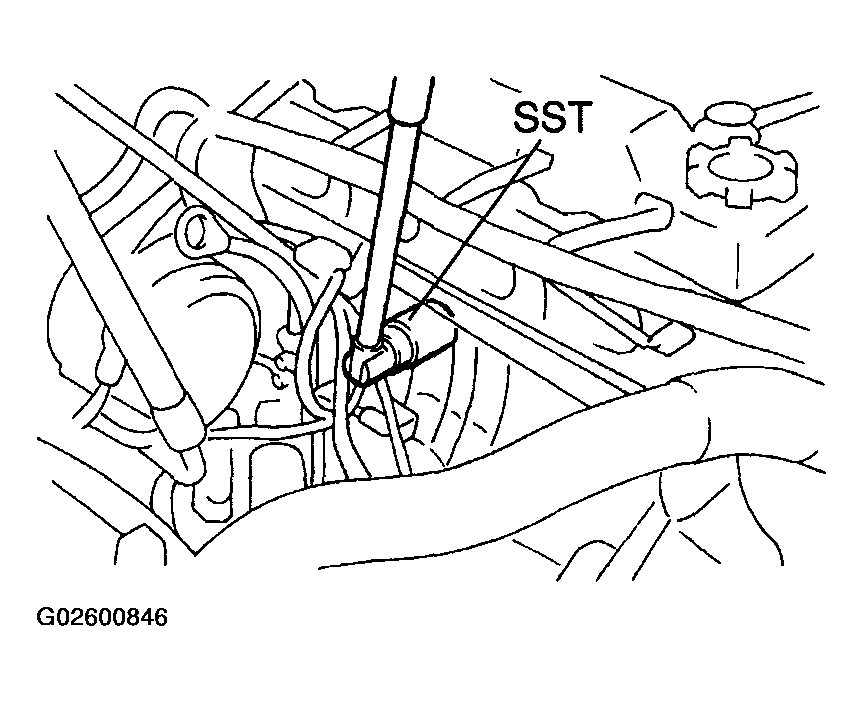

Fig 1: Removing Knock Sensor (1ZZ-FE)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE KNOCK SENSOR

1. Disconnect the knock sensor connector.
2. Remove the nut and knock sensor.

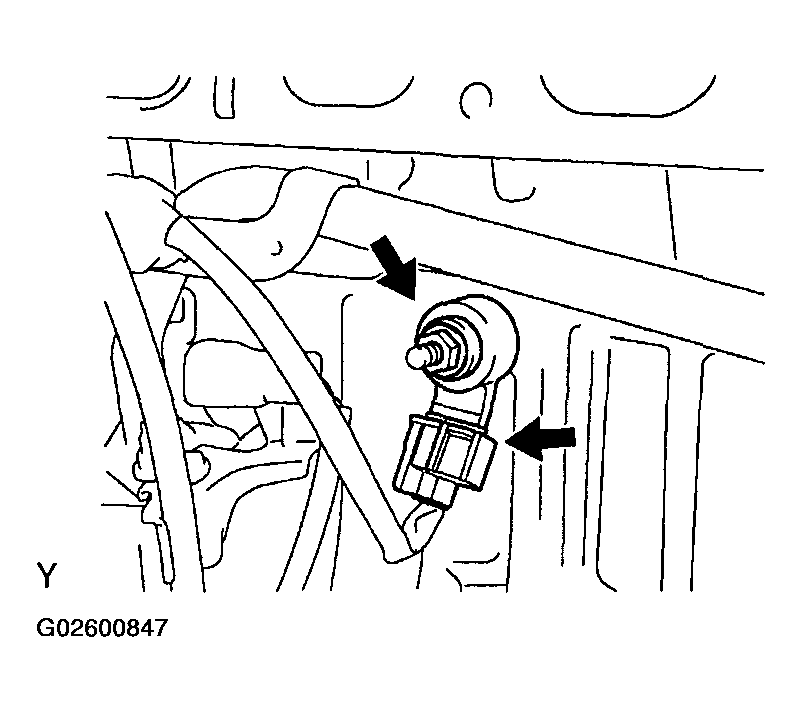

Fig 2: Removing Knock Sensor (2ZZ-GE)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

INSPECT KNOCK SENSOR

Using an ohmmeter, check that there is continuity between the terminal and body.

If there is continuity, replace the sensor.

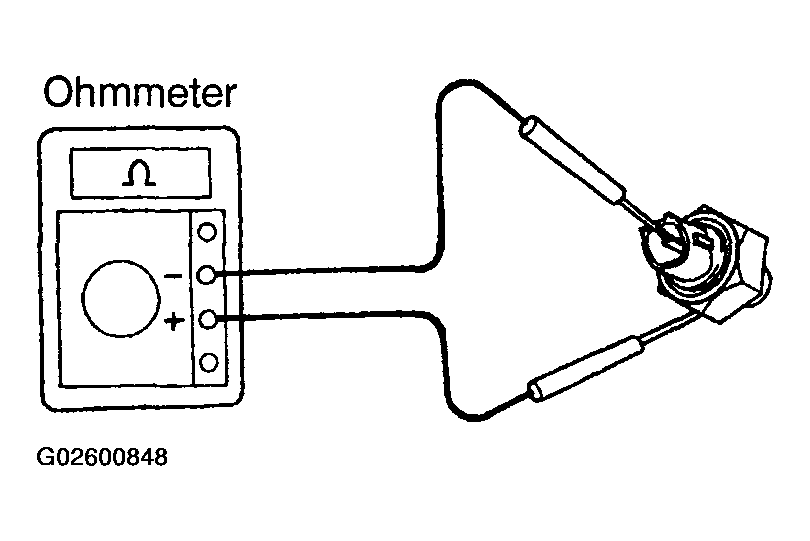

Fig 3: Checking Continuity Between Knock Sensor Terminals & Body (1ZZ-FE)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

INSPECT KNOCK SENSOR

Using an ohmmeter, measure the resistance between terminals.

Resistance: 120 - 280 kΩ at 20°C (68°F)

If the resistance is not specified, replace the sensor.

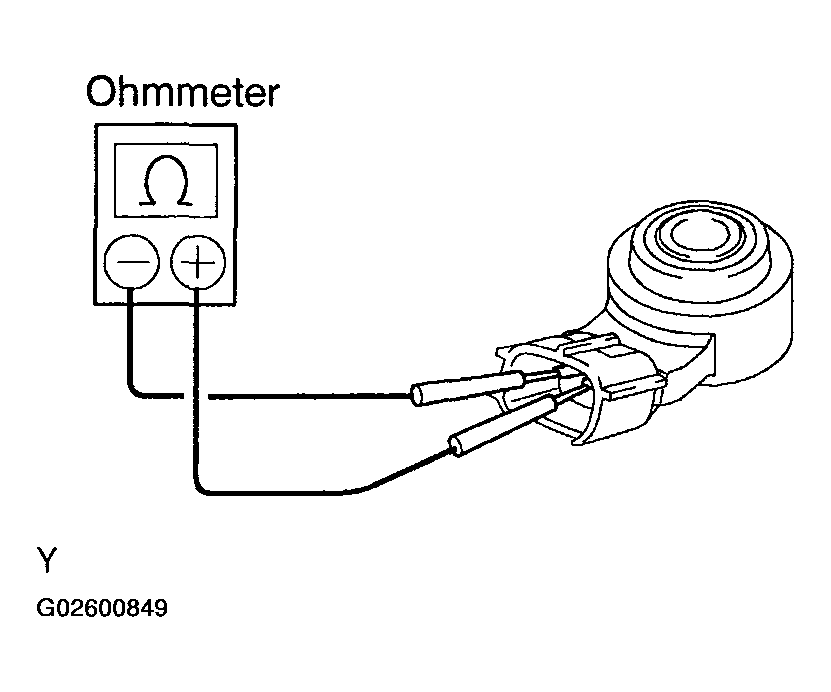

Fig 4: Checking Resistance Between Knock Sensor Terminals (2ZZ-GE)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REINSTALL KNOCK SENSOR

1. Using SST, install the knock sensor.

   SST 09816-30010

2. Connect the knock sensor connector.

REINSTALL KNOCK SENSOR

1. Install the knock sensor with the nut.
2. Connect the knock sensor connector.
