Front Suspension System: Repair

HINT:

This is a flow chart for vehicle pull.

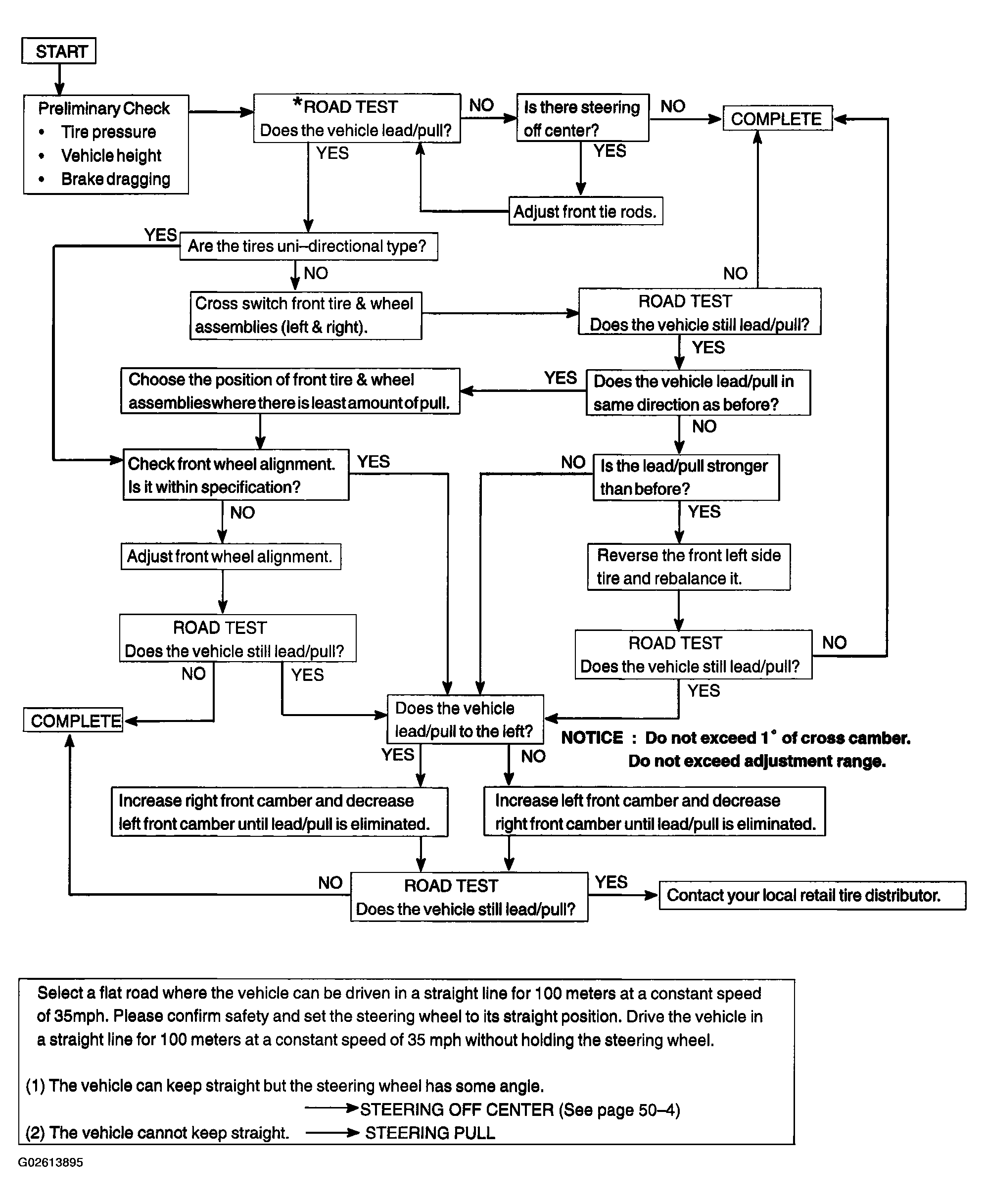

Fig 1: Vehicle Pull Flow Chart
G02613895Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
