Parts Location

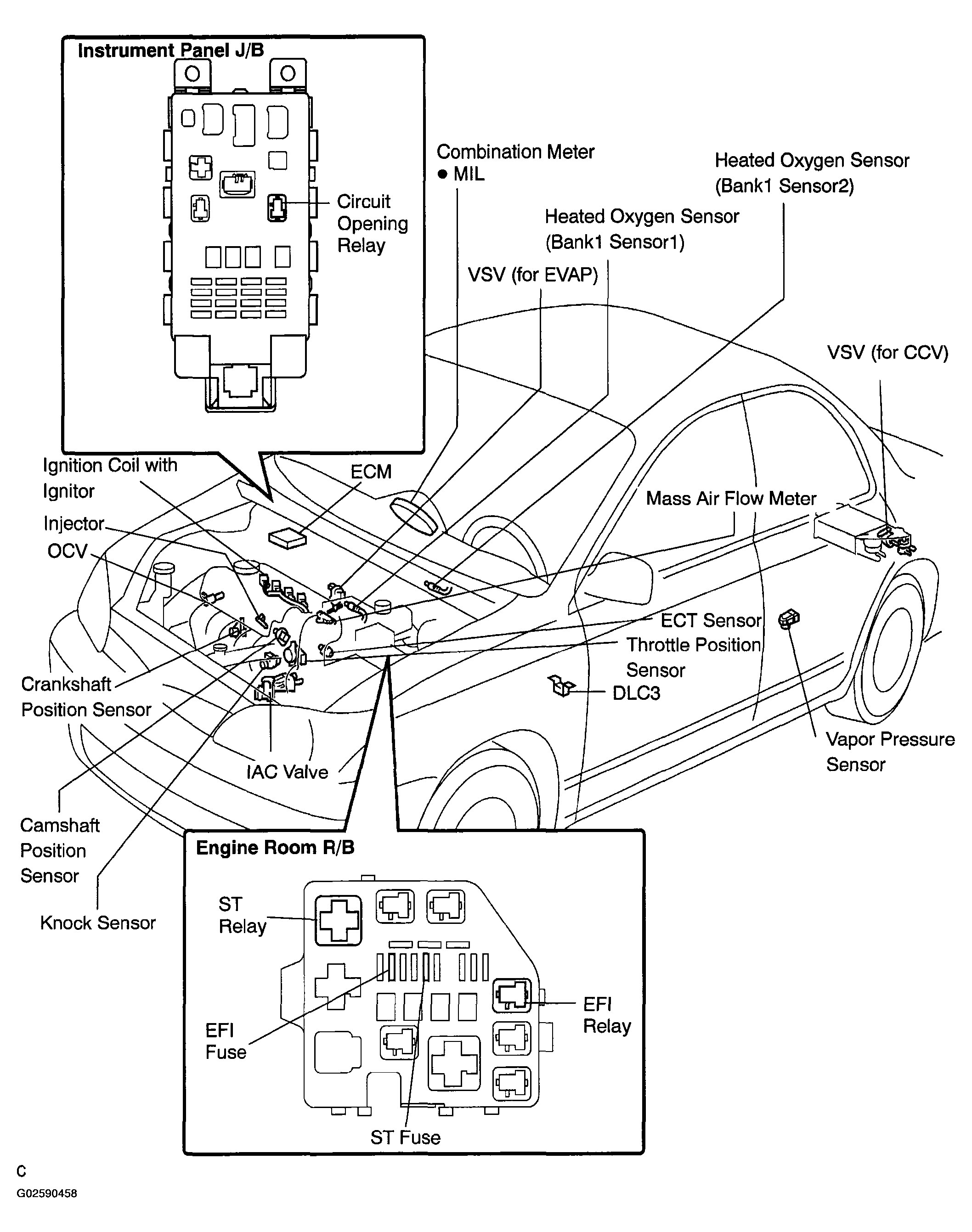

Fig 1: Identifying Parts Location (Instrument Panel J/B And Engine Room R/B)
G02590458Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
