How To Use The Diagnostic Chart And Inspection Procedure

  1. CONNECTOR CONNECTION AND TERMINAL INSPECTION
    • For troubleshooting, diagnostic trouble code (DTC) charts or problem symptom table are provided for each circuit with detailed inspection procedures in this article.

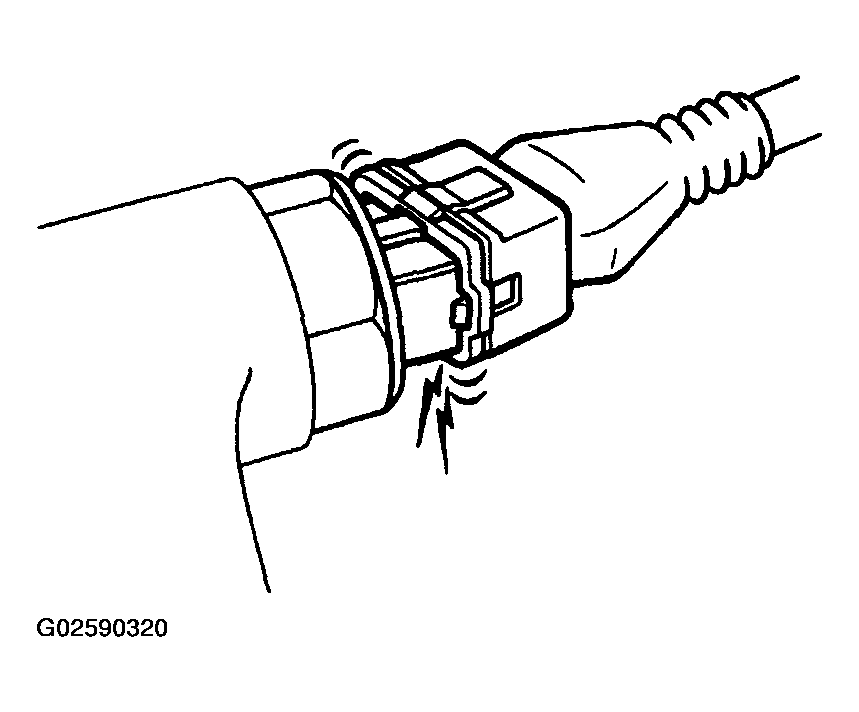

      Fig 1: Connecting Connector
      G02590320Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    • When component parts, wire harnesses and connectors of each circuit are found to be normal in troubleshooting, the problem is most likely in the ECU. Accordingly, if diagnosis is performed without the problem symptoms occurring, refer to Step 8 to replace the ECU. Always confirm that the problem symptoms are occurring, or proceed with inspection while using the symptom simulation method.
    • The instructions "Check wire harness and connector" and "Check and replace ECU" which appear in the inspection procedure are common and applicable to all DTCs. Follow the procedure outlined below whenever these instructions appear.

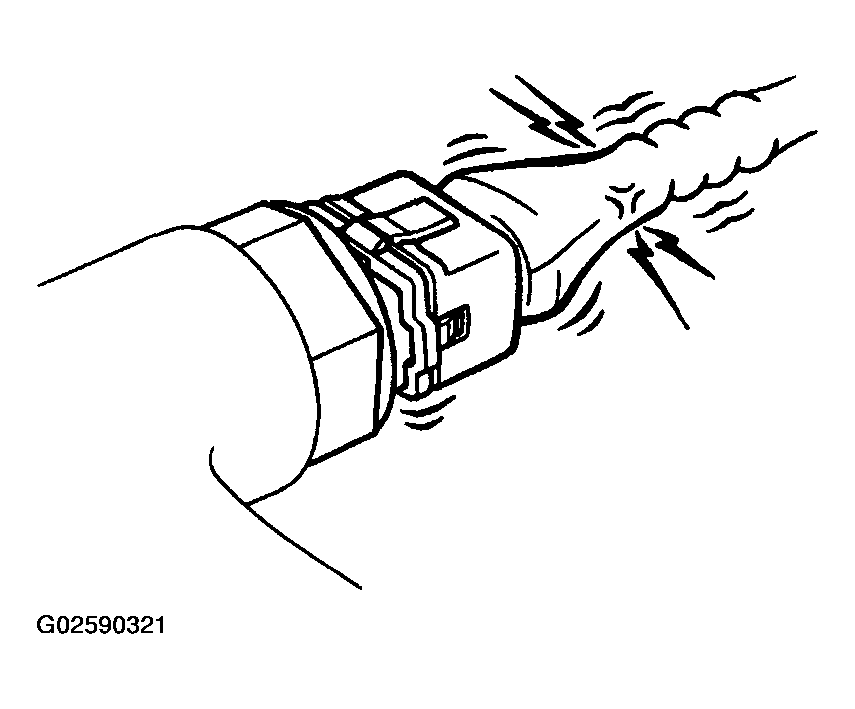

      Fig 2: Removing Connection
      G02590321Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    OPEN CIRCUIT:

    An open circuit the result of a disconnected wire harness, a faulty contact in the connector, a connector terminal pulled out, etc.

    NOTE:
    • A wire is rarely broken in its middle. Most problem occur at the wire ends. Carefully check the connectors of sensors and actuators.

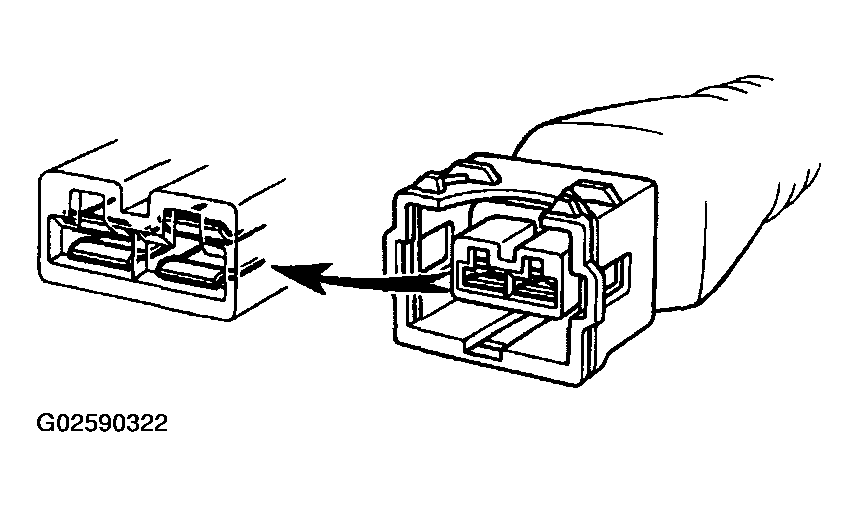

      Fig 3: Pulling Connector Terminal
      G02590322Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    • Faulty contacts could be due to the rusting, contamination, and/or deformation of connector terminals. In some cases: 1) simply disconnecting and reconnecting the connectors will fix the problem, or 2) even though no abnormality is found in the wire harness or connector, the problem disappears after the check (meaning the cause was most likely in the wire harness or connectors).

    SHORT CIRCUIT:

    A short circuit could be the result of contact between the wire harness and the body ground or a short circuits switch.

    NOTE: When there is a short circuit between the wire harness and body ground, check thoroughly it wire harness is caught in the body or is clamped properly.
  2. CONNECTOR HANDLING

    When inserting tester probes into a connector, insert them from the rear of the connector. When necessary, use mini test leads. For water resistant connectors which cannot be accessed from behind, take good care not to deform the connector terminals.

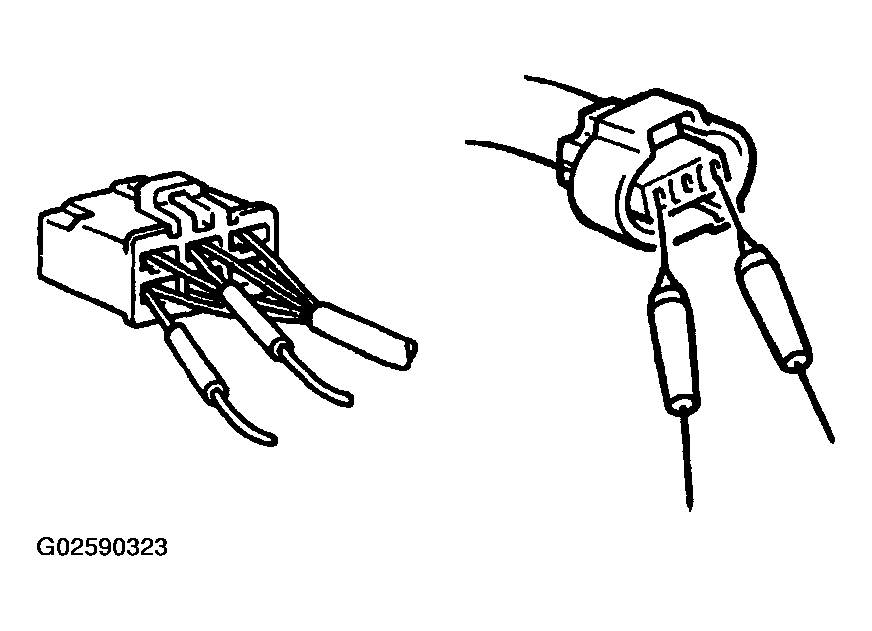

    Fig 4: Inserting Tester Probes Into Connector
    G02590323Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. CONTINUITY CHECK (OPEN CIRCUIT CHECK)
    1. Disconnect the connectors at both ECU and sensor sides.
    2. Measure the resistance between the applicable terminals of the connectors.

      Resistance: 1 Ω or less

    NOTE: Measure the resistance while lightly shaking the wire harness vertically and horizontally.

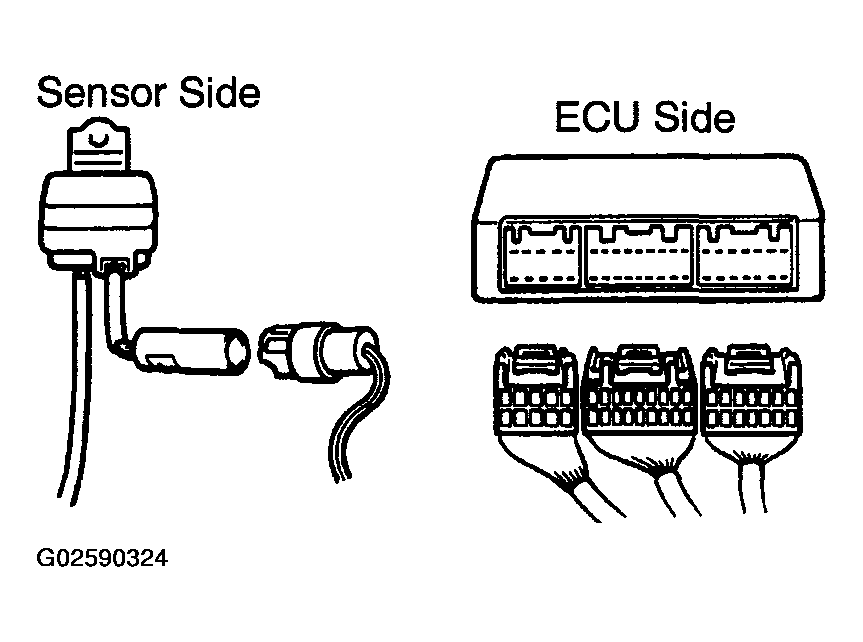

    Fig 5: Disconnecting Connectors
    G02590324Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

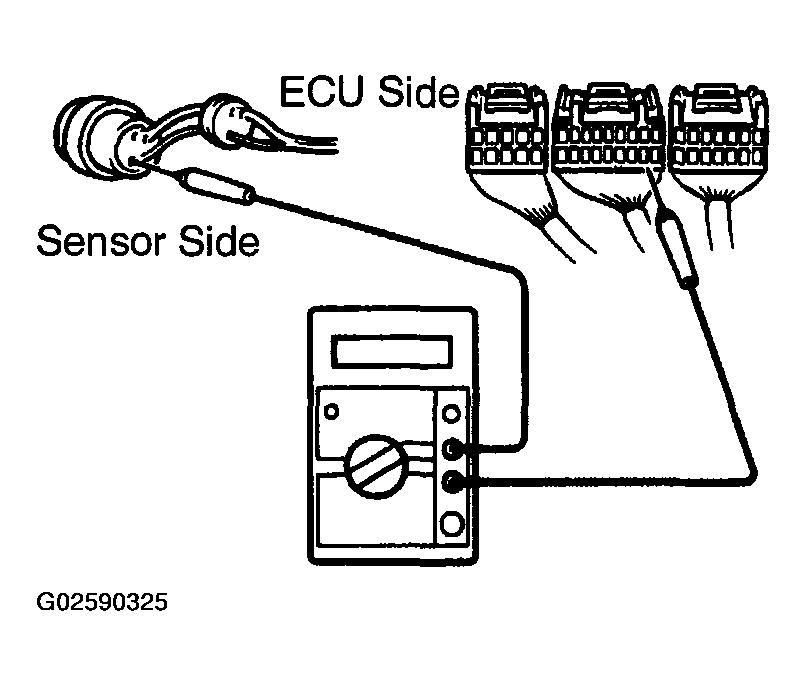

    Fig 6: Measuring Resistance
    G02590325Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. RESISTANCE CHECK (SHORT CIRCUIT CHECK)
    1. Disconnect the connectors on both ends.
    2. Measure the resistance between the applicable terminals of the connectors and body ground. Be sure to carry out this check on the connectors on both ends.

      Resistance: 10 kΩ or higher

    NOTE: Measure the resistance while lightly shaking the wire harness vertically and horizontally.

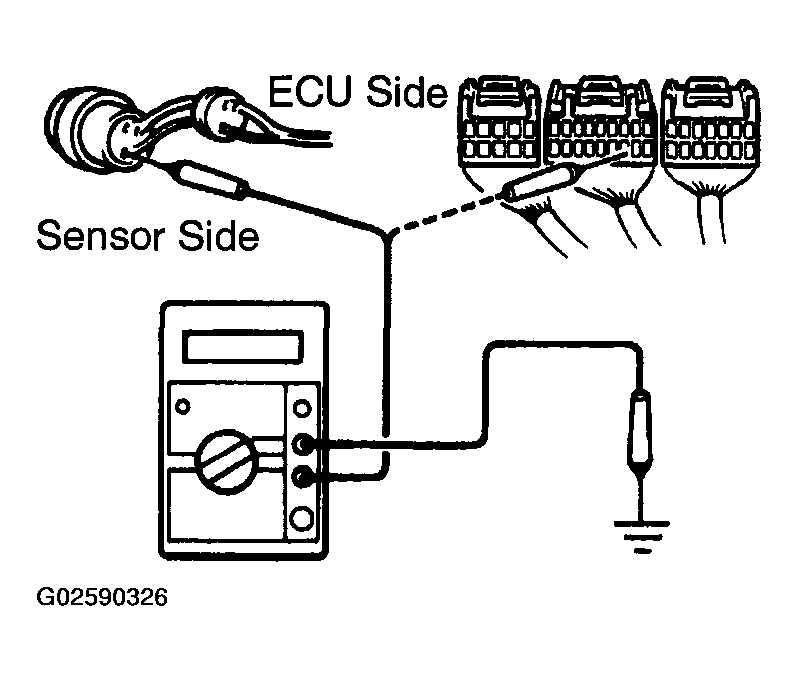

    Fig 7: Measuring Resistance Between Applicable Terminals
    G02590326Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. VISUAL CHECK AND CONTACT PRESSURE CHECK
    1. Disconnect the connectors at both ends.
    2. Check for rust or foreign material, etc. in the terminals of the connectors.
    3. Check crimped portions for looseness or damage and check that the terminals are secured in the lock portion.
      NOTE: The terminals should not come out when pulled lightly from the back.

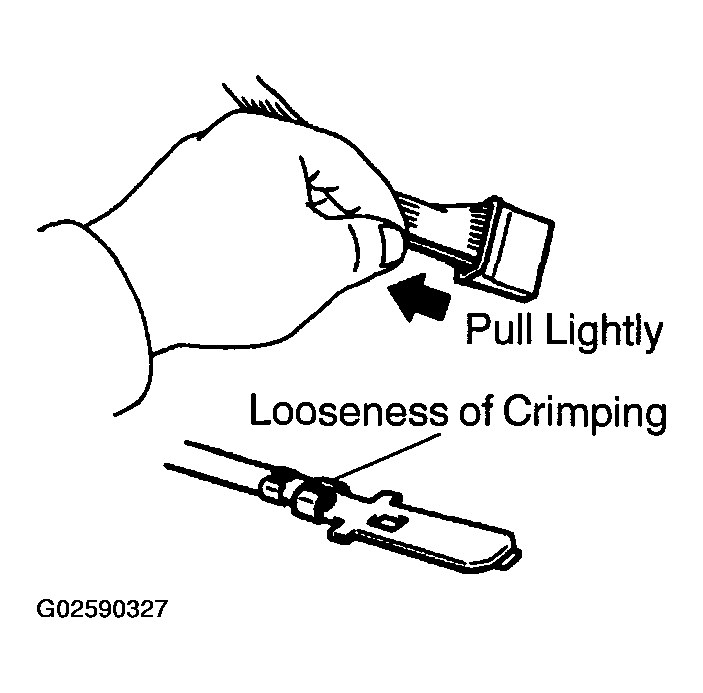

      Fig 8: Loosening Connector
      G02590327Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Prepare a test male terminal and insert it in the female terminal, then pull it out.
    NOTE: When testing a gold-plate female terminal always use a gold-plated male terminal.
    NOTE: If a test terminal is easier to pulled out than others, there may be poor contact in that part.
  6. CHECK OPEN CIRCUIT

    For the open circuit in the wire harness in Fig. 1, performs a continuity Check (step (a) below) or a voltage check (step (b) below).

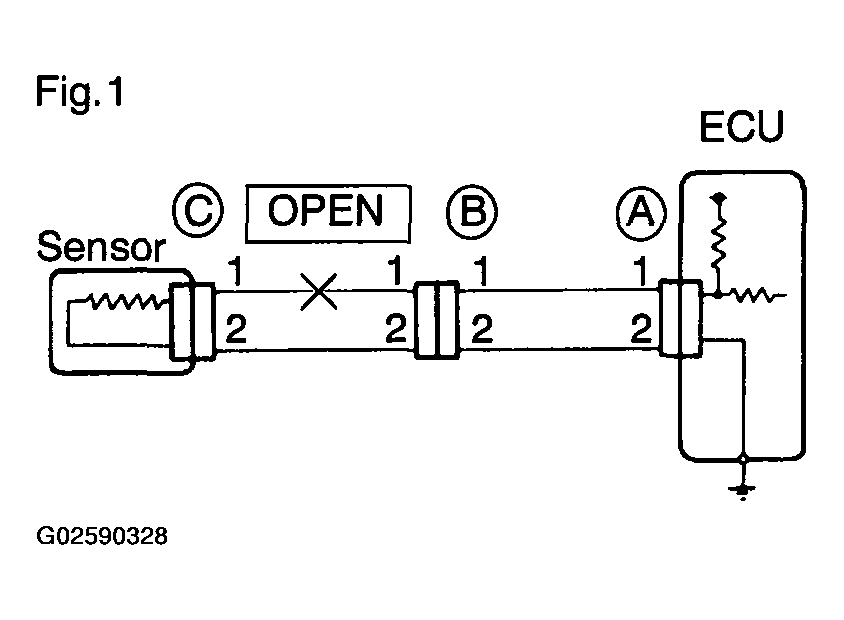

    Fig 9: Checking Open Circuit In Wire Harness
    G02590328Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Check the continuity.
      1. Disconnect connectors A and C and measure the resistance between them.

        In the case of Fig. 2:

        Between terminal 1 of connector A and terminal 1 of connector C --> No continuity (open)

        Between terminal 2 of connector A and terminal 2 of connector C --> Continuity

        An open circuit exists in the wire harness between terminal 1 of A and terminal 1 of C.

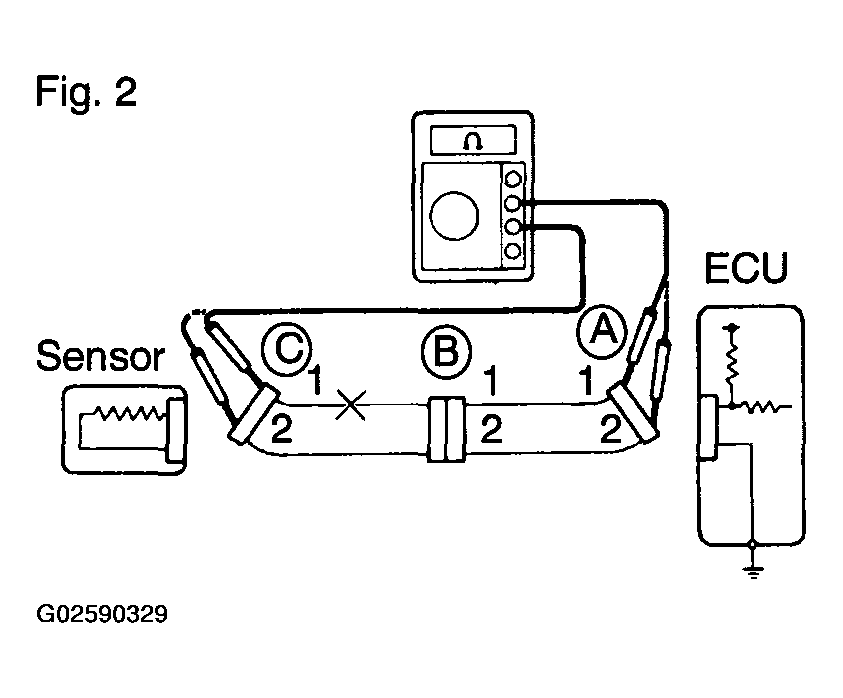

        Fig 10: Checking Terminal Of Connector A And Terminal 1 Of Connector C
        G02590329Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Disconnect connector B and measure the resistance between the connectors.

        In the case of Fig. 3:

        Between terminal 1 of connector A and terminal 1 of connector B1 --> Continuity

        Between terminal 1 of connector B2 and terminal 1 of connector C --> No continuity (open)

        An open circuit exists in the wire harness between terminal 1 of B2 and terminal 1 of C.

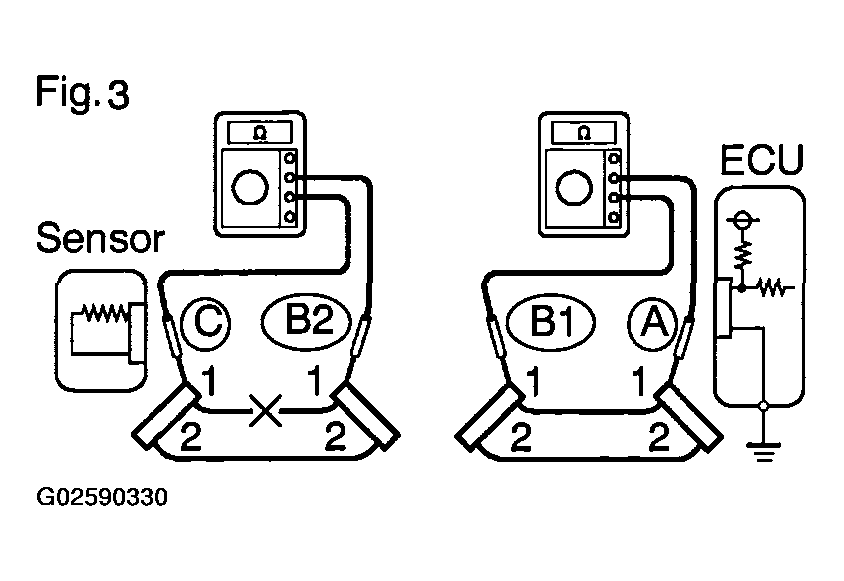

        Fig 11: Checking Terminal 1 Of Connector A And Terminal 1 Of Connector B1
        G02590330Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Check the voltage.

      In a circuit in which voltage is applied to the ECU connector terminal, an open circuit can be checked for by conducting a voltage check.

      As shown in Fig. 4, with each connector still connected, measure the voltage between body ground and terminal 1 of connector A at the ECU 5V output terminal, terminal 1 of connector B, and terminal 1 of connector C (in that order).

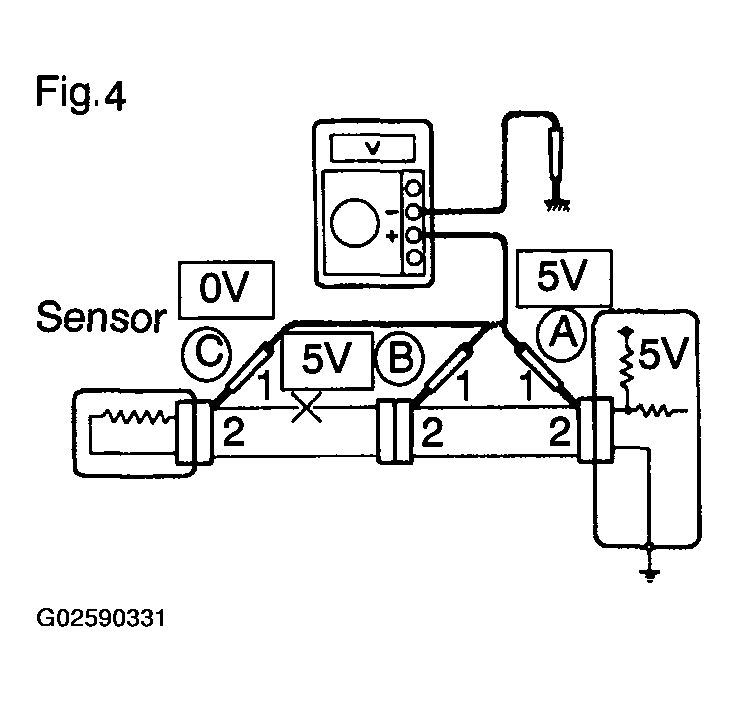

      Fig 12: Checking Voltage
      G02590331Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Example results:

      5V: Between Terminal 1 of connector A and Body Ground

      5V: Between Terminal 1 of connector B and Body Ground

      0V:Between Terminal 1 of connector C and Body Ground

      In the above example, and open circuit is in the wire harness between terminal 1 of B and terminal 1 of C.

  7. CHECK SHORT CIRCUIT

    If the wire harness is ground shorted (Fig. 5), locate the part by conducting a continuity check with ground below.

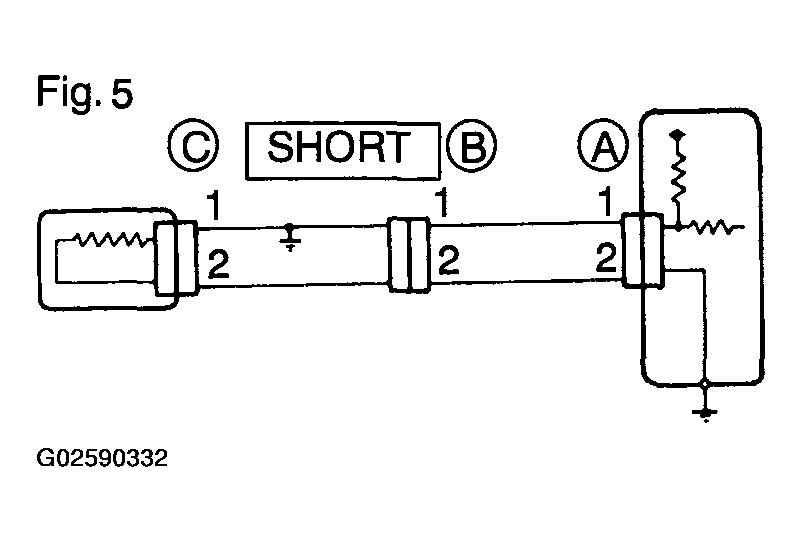

    Fig 13: Checking For Short Circuit
    G02590332Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Check the continuity with ground.

    1. Disconnect connectors A and C and measure the resistance between terminal 1 and 2 of connector A and body ground.

      In the case of Fig. 6:

      Between terminal 1 of connector A and body ground --> Continuity (short)

      Between terminal 2 of connector A and body ground --> No continuity

      A short circuit is between terminal 1 of connector A and terminal 1 of connector C.

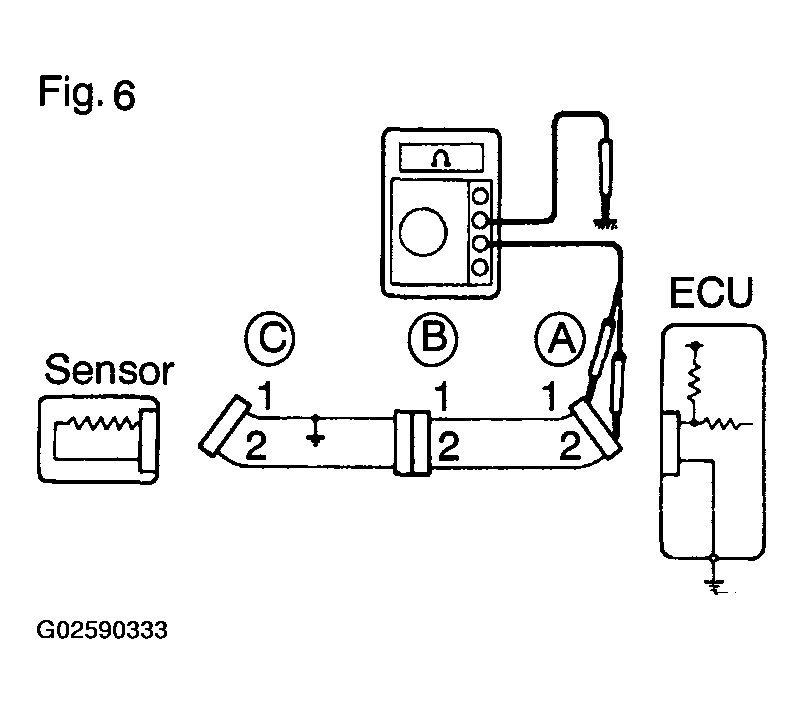

      Fig 14: Checking For Continuity With Ground
      G02590333Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect connector B and measure the resistance between terminal 1 of connector A and body ground, and terminal 1 of connector B2 and body ground.

      In the case of Fig. 7:

      Between terminal 1 of connector A and body ground --> No continuity

      Between terminal 1 of connector B2 and body ground --> Continuity (short)

      A short circuit is between terminal 1 of connector B2 and terminal 1 of connector C.

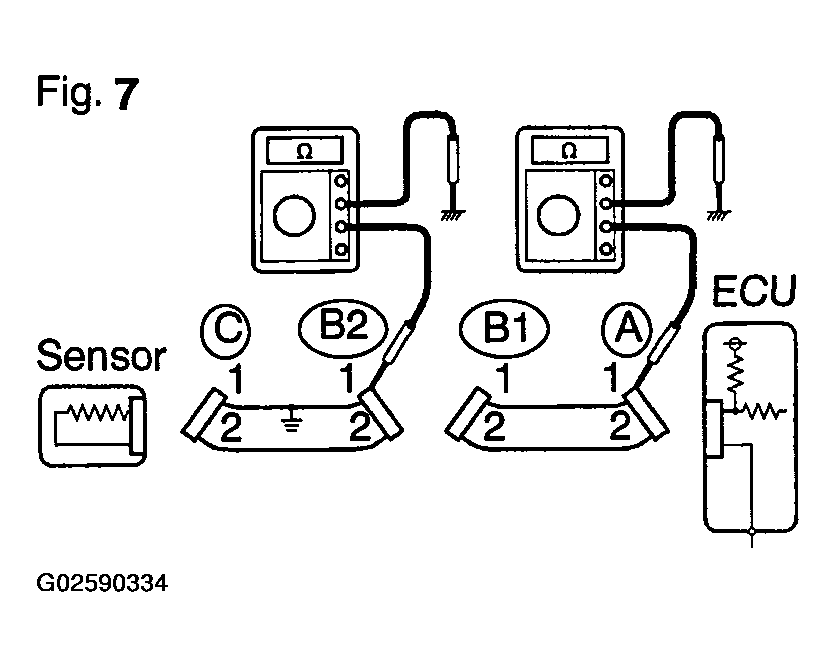

      Fig 15: Measuring Resistance Between Terminal 1 Of Connector A And Body Ground
      G02590334Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. CHECK AND REPLACE ECU

    First check the ECU ground circuit. If it is faulty, repair it. If it is normal, the ECU could be faulty. Replace the ECU with and check if the symptoms appear.

    1. Measure the resistance between the ECU ground terminal and the body ground.

      Resistance: 1 Ω or less

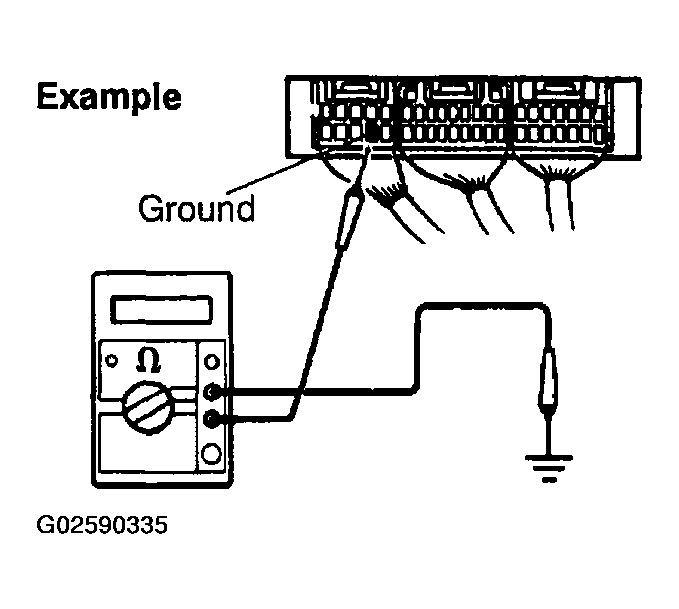

      Fig 16: Measuring Resistance Between ECU Ground Terminal And Body Ground
      G02590335Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the ECU connector. Check for bent ground terminals (on the ECU side and the wire harness side). Lastly, check the contact pressure.

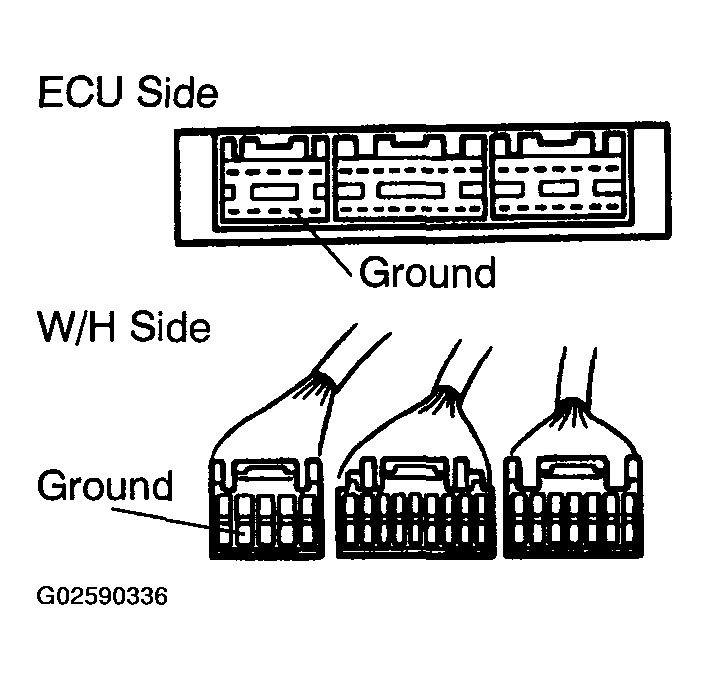

      Fig 17: Disconnecting ECU Connector
      G02590336Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
