Circuit Description

Refer to  DTC P0100, P0102, P0103: Mass or Volume Air Flow Circuit Low/High Input  .

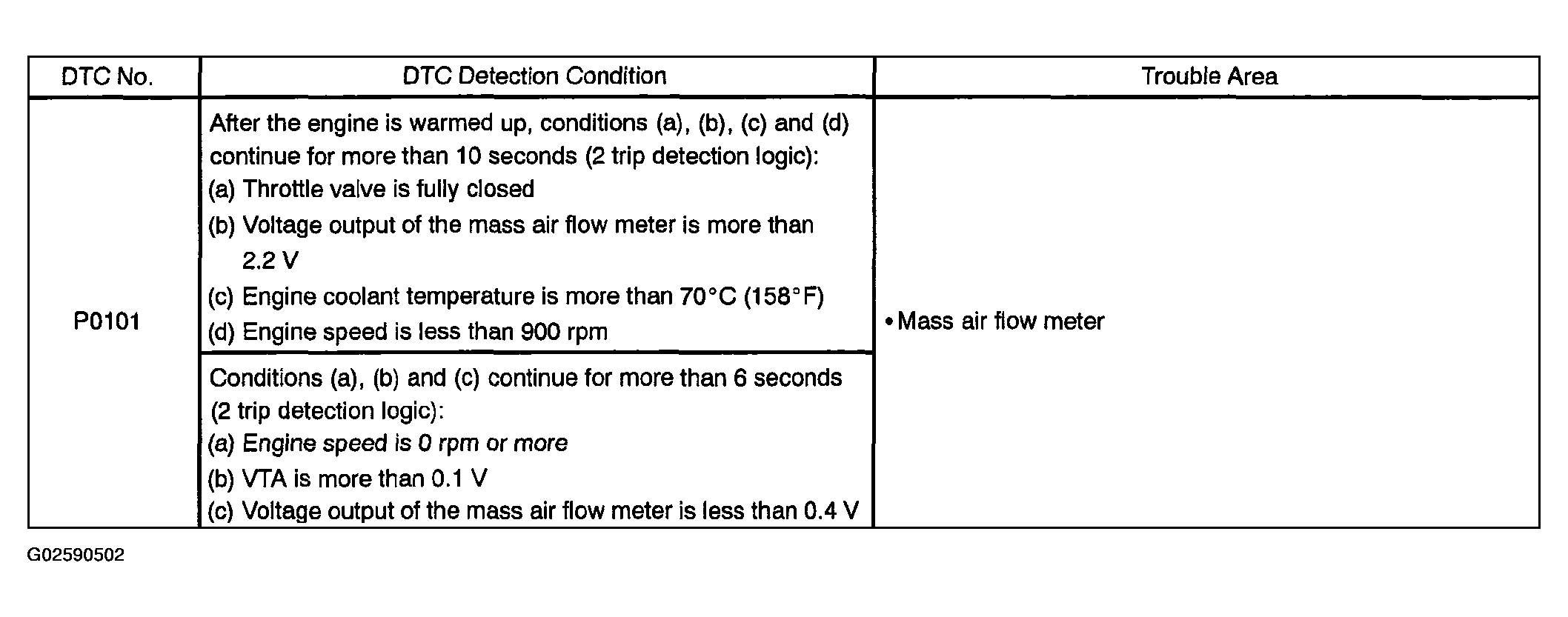

Fig 1: DTC Detecting Condition Table
G02590502Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
