Confirmation Driving Pattern

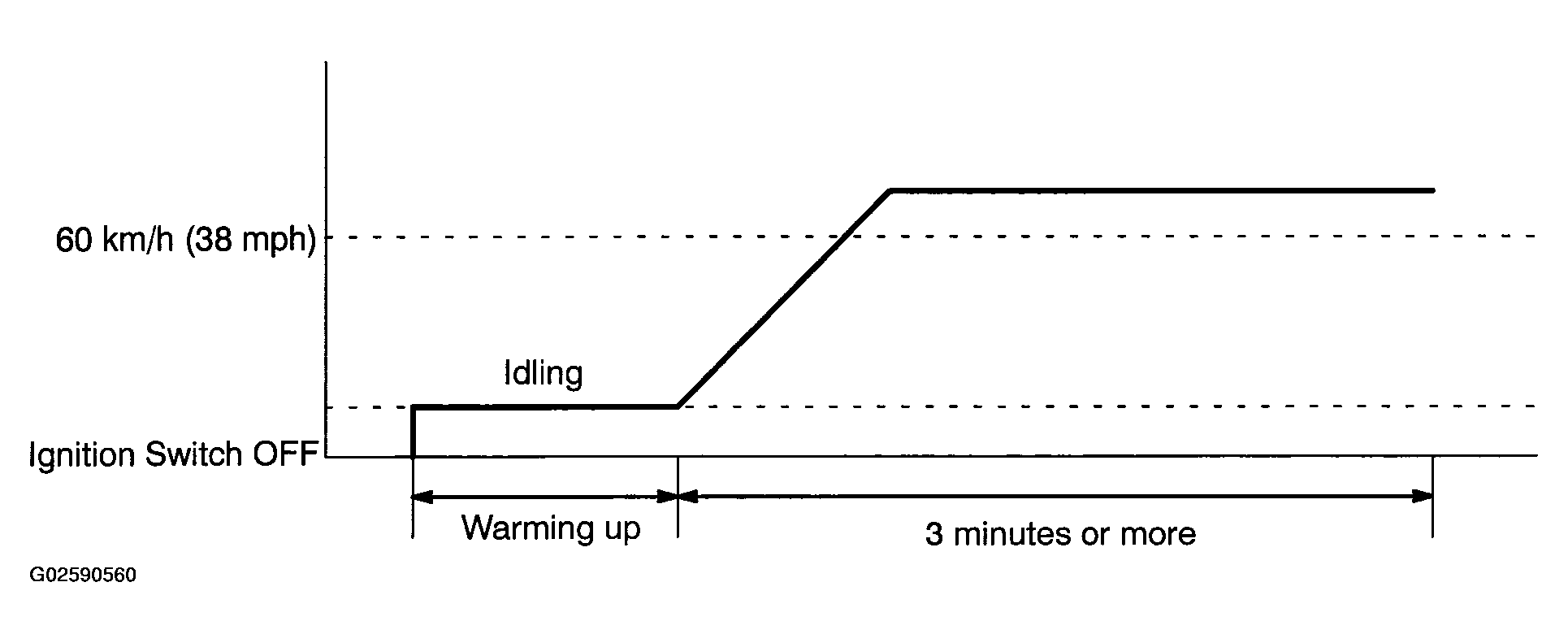

Fig 1: Driving Pattern
G02590560Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  1. Connect the hand-held tester to the DLC3.
  2. Allow the engine to idle until engine coolant temperature reaches 40°C (104°F).
  3. Allow the vehicle to run at 60km/h (38mph) or more for 3 minutes or more
