Circuit Description

The power steering oil pressure sensor is turned ON when a power steering wheel load occurs by turning the steering wheel. The ECM regulates the engine idle RPM according to the voltage output of the sensor.

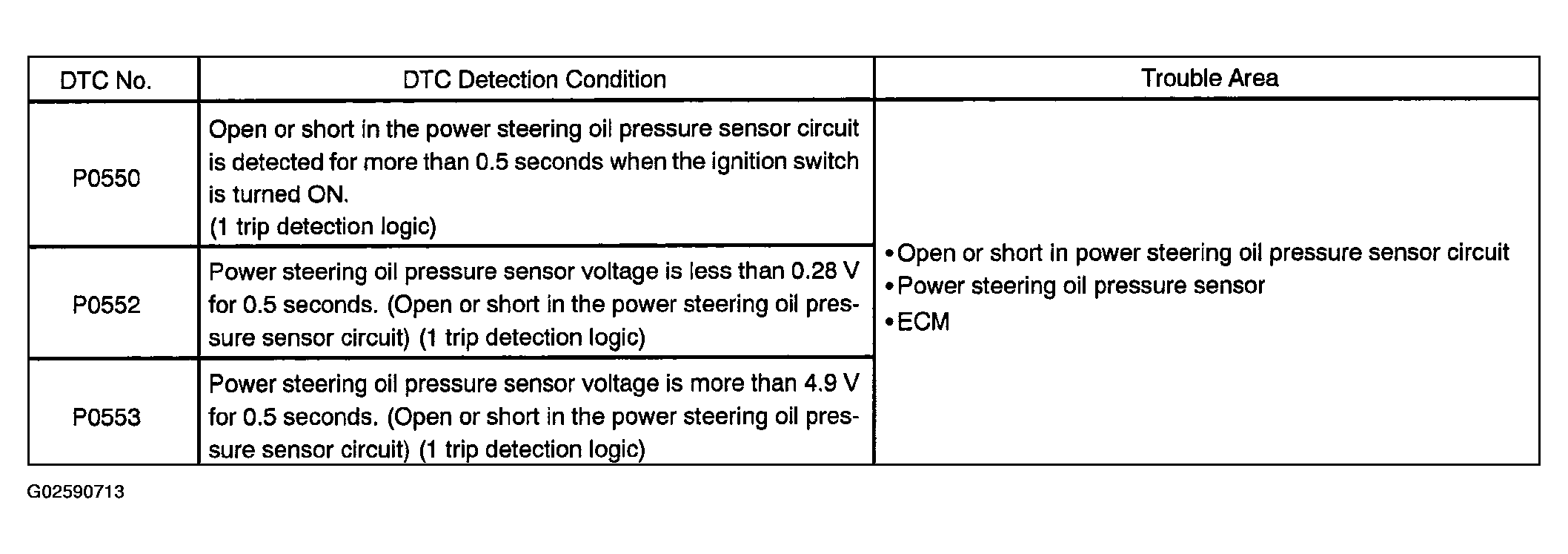

Fig 1: DTC Detection Condition Table
G02590713Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
