Diagnostic Trouble Code Chart

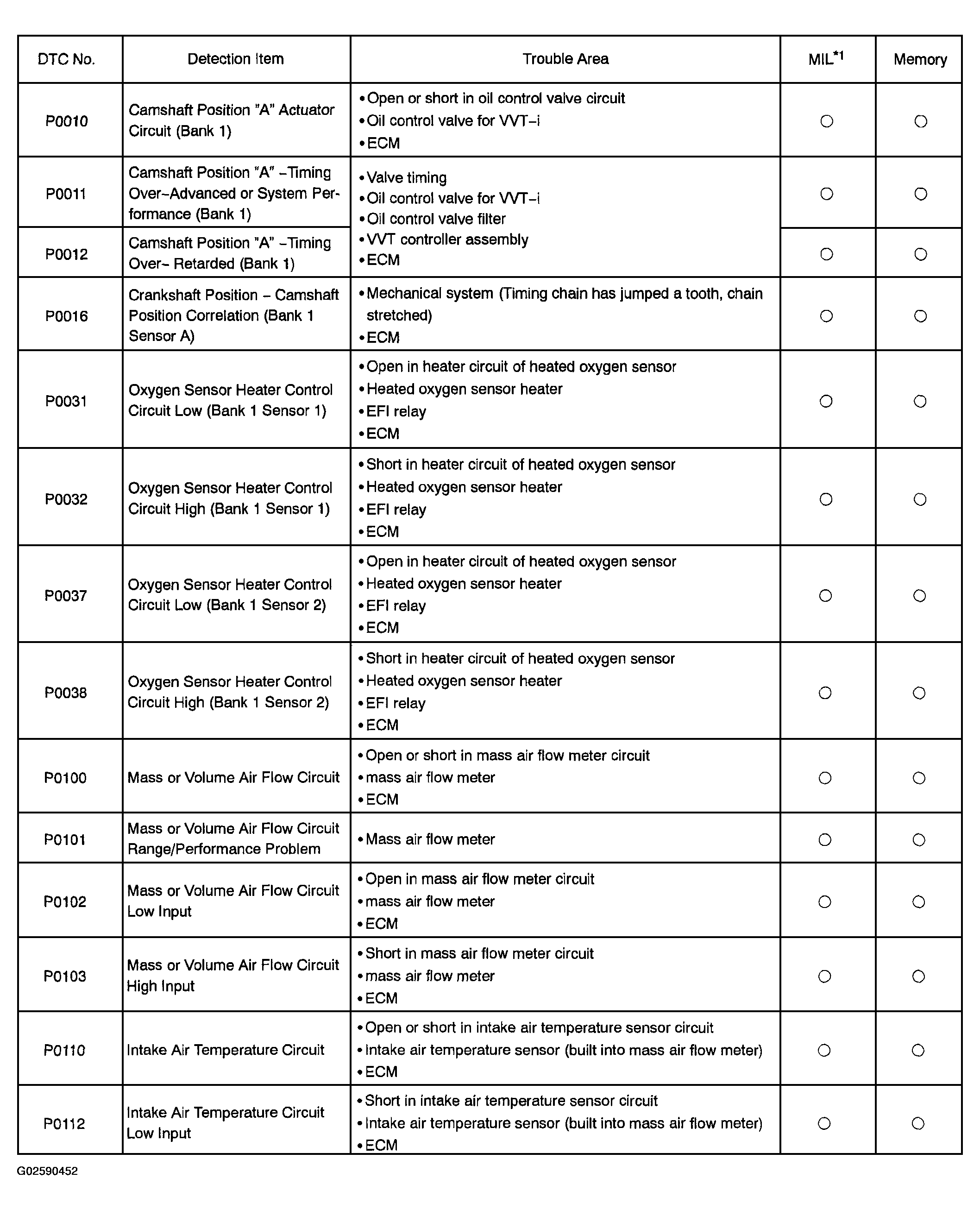

DIAGNOSTIC TROUBLE CODES (DTC) LIST
| DTC | Description |
|---|---|
| DTC P0010 | Camshaft Position "A" Actuator Circuit (Bank 1) |
| DTC P0011, P0012 | Camshaft Position "A" - Timing Over - Advanced or System Performance/Timing Over -Retarded (Bank 1) |
| DTC P0016 | Crankshaft Position - Camshaft Position Correlation (Bank 1 Sensor A) |
| DTC P0031, P0032, P0037, P0038 | Oxygen Sensor Heater Control Circuit Low/High (Bank 1 Sensor 1 & 2) |
| DTC P0100, P0102, P0103 | Mass or Volume Air Flow Circuit Low/High Input |
| DTC P0101 | Mass or Volume Air Flow Circuit Range/ Performance Problem |

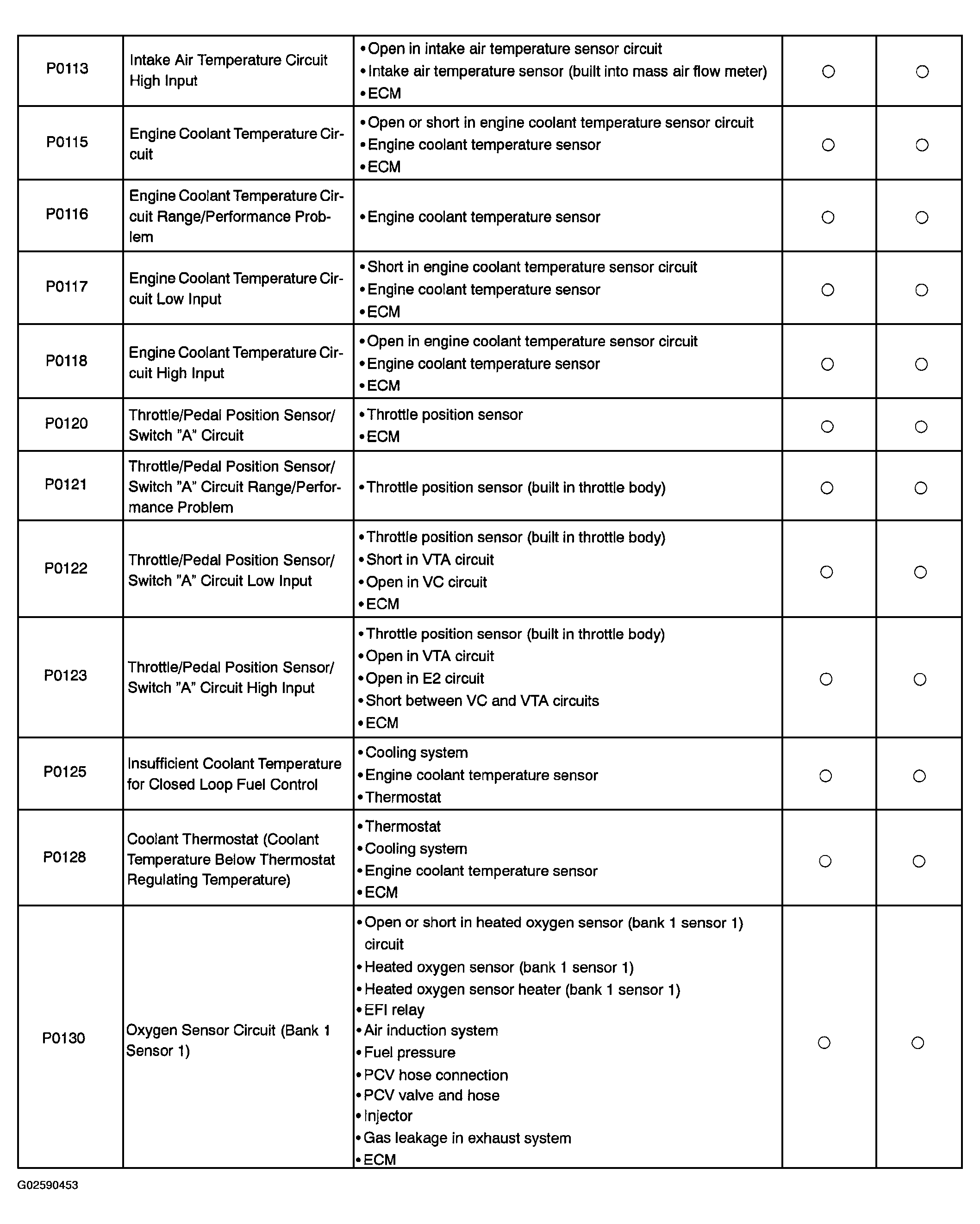

| DTC P0110, P0112, P0113 | Intake Air Temperature Circuit Low/High Input |
| DTC P0115, P0117, P0118 | Engine Coolant Temperature Circuit Low/High Input |
| DTC P0116 | Engine Coolant Temperature Circuit Range/Performance Problem |
| DTC P0120, P0122, P0123 | Throttle/Pedal Position Sensor/Switch "A" Circuit Low/High Input |
| DTC P0121 | Throttle/Pedal Position Sensor/Switch "A" Circuit Range/Performance Problem |
| DTC P0125 | Insufficient Coolant Temperature for Closed Loop Fuel Control |
| DTC P0128 | Coolant Thermostat (Coolant Temperature Below Thermostat Regulating Temperature) |

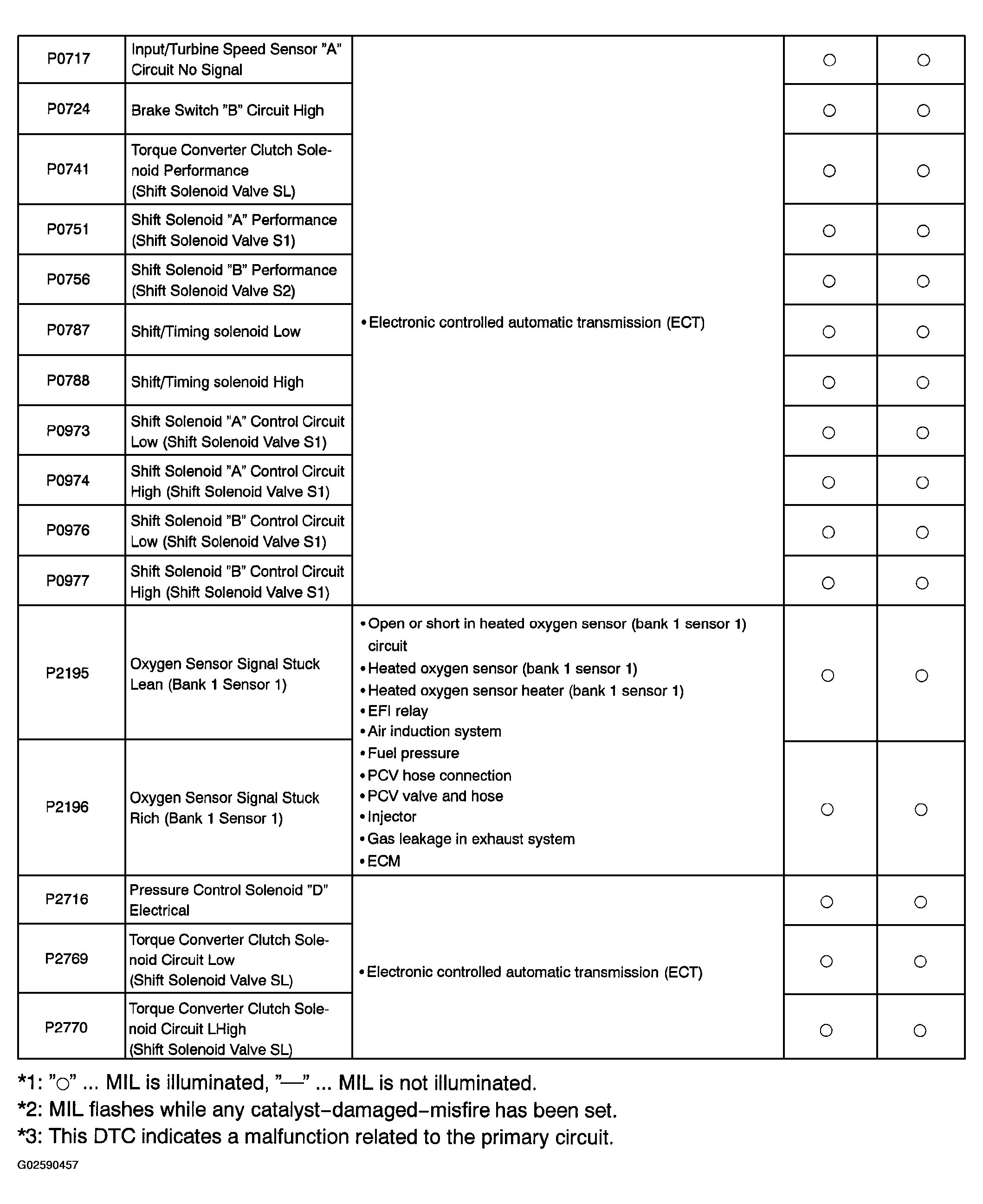

| DTC P0130, P2195, P2196 | Oxygen Sensor Circuit, Signal Stuck Lean/Rich (Bank 1 Sensor 1) |

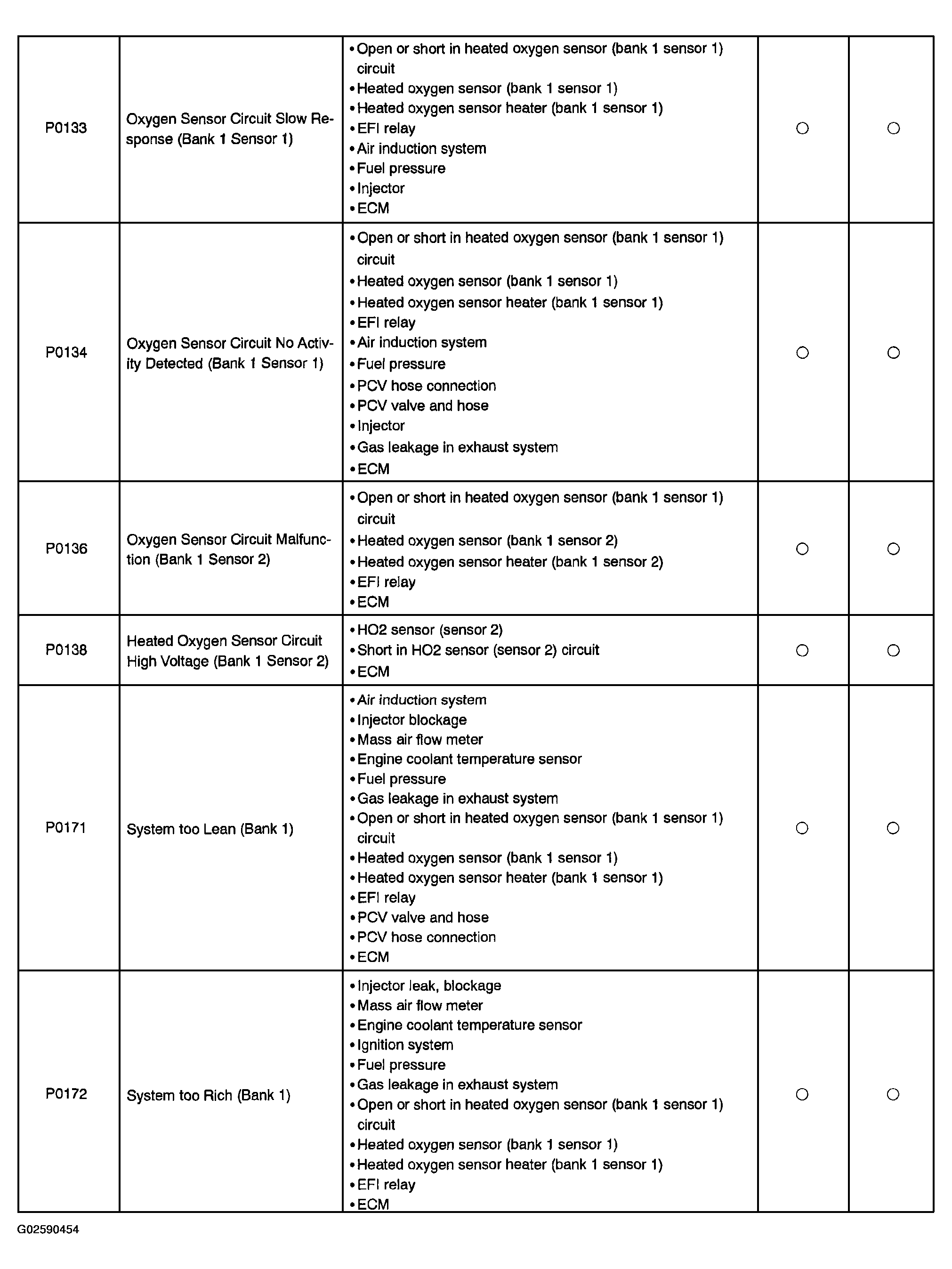

| DTC P0133 | Oxygen Sensor Circuit Slow Response (Bank 1 Sensor 1) |
| DTC P0134 | Oxygen Sensor Circuit No Activity Detected (Bank 1 Sensor 1) |
| DTC P0136, P0138 | Oxygen Sensor Circuit Malfunction/High Voltage (Bank 1 Sensor 2) |
| DTC P0171, P0172 | System too Lean/Rich (Bank 1) |

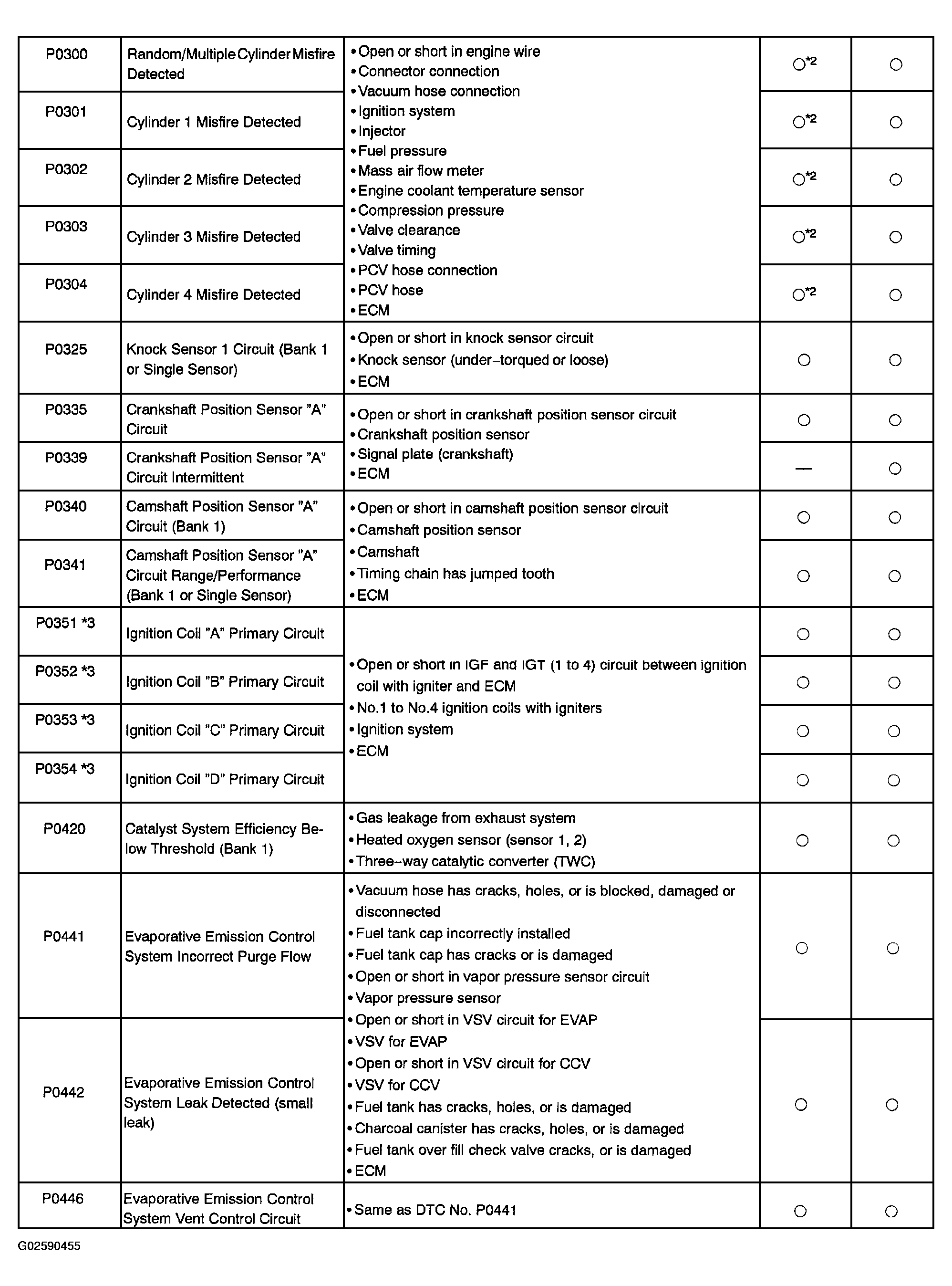

| DTC P0300, P0301, P0302, P0303, P0304 | Random/Multiple Cylinder Misfire Detected & Cylinder 1-4 Misfire Detected |
| DTC P0325 | Knock Sensor 1 Circuit (Bank 1 or Single Sensor) |
| DTC P0335, P0339 | Crankshaft Position Sensor "A" Circuit/Intermittent |
| DTC P0340, P0341 | Camshaft Position Sensor "A" Circuit Range/Performance (Bank 1 or Single Sensor) |
| DTC P0351, P0352, P0353, P0354 | Ignition Coil "A-D" Primary/Circuit |
| DTC P0420 | Catalyst System Efficiency Below Threshold (Bank 1) |
| DTC P0441, P0442, P0446, P0456 | Evaporative Emission Control System Incorrect Purge Flow/Leak Detected/Vent Control Circuit (small leak/very small leak) |

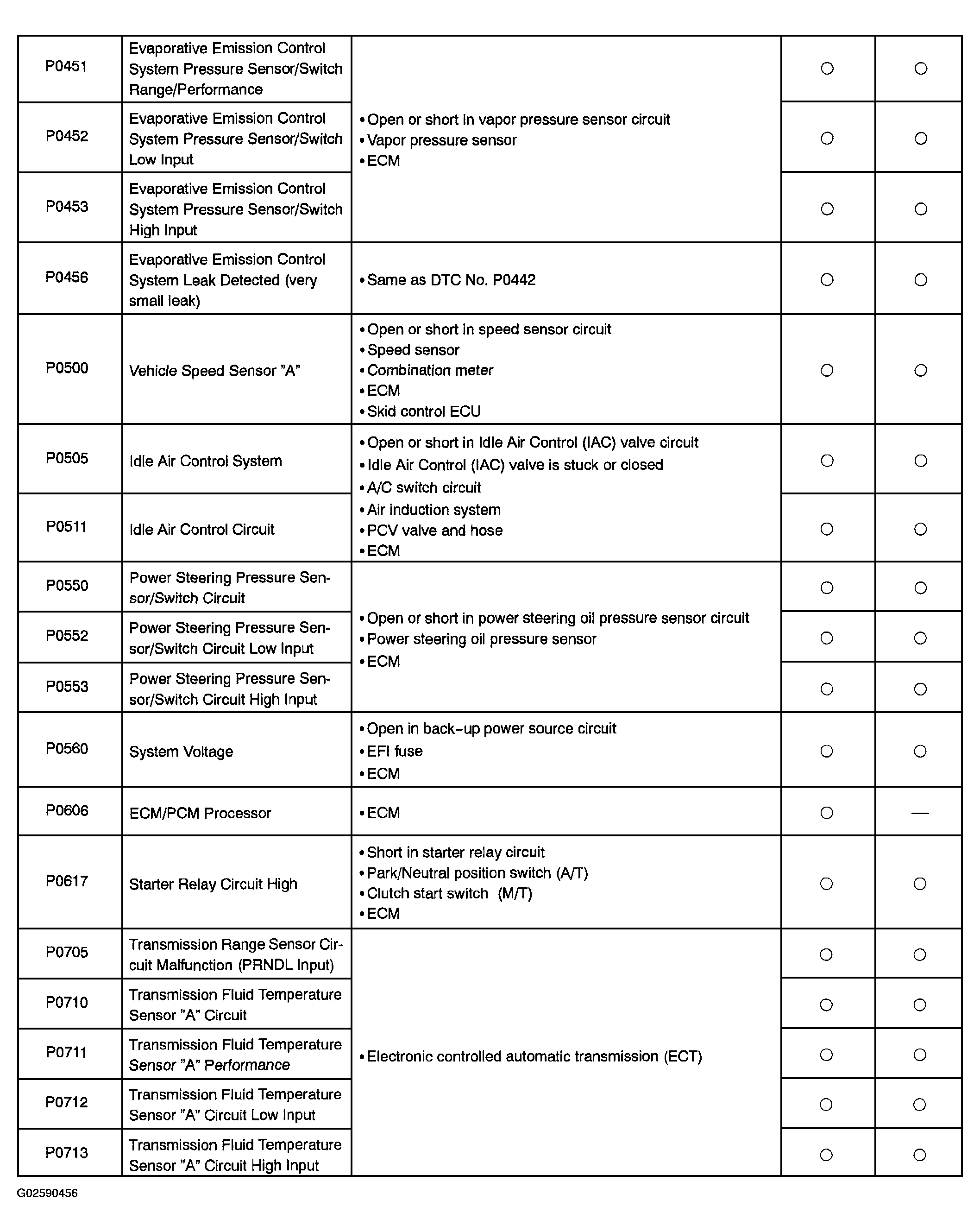

| DTC P0451, P0452, P0453 | Evaporative Emission Control System Pressure Sensor/Switch Range/Performance Low/High Input |
| DTC P0500 | Vehicle Speed Sensor "A" |
| DTC P0505, P0511 | Idle Air Control System Circuit |
| DTC P0550, P0552, P0553 | Power Steering Pressure Sensor/Switch Circuit Low/High Input |
| DTC P0560 | System Voltage |
| DTC P0606 | ECM/PCM Processor |
| DTC P0617 | Starter Relay Circuit High |
NOTE:
Parameters listed in the chart may not be exactly the same as your readings due to factors such as the type of instrument.
If a DTC is displayed during the DTC check in check mode, check the circuit for the DTC listed in the table below. For details of each DTC, refer to the "See page" under the respective "DTC No." in this chart.
