Fuel Pressure Regulator: Installation

  1. INSTALL FUEL PRESSURE REGULATOR
    1. Install the O-ring to the pressure regulator.
      NOTE: Apply a light coat of gasoline to a new O-ring, and install it to the pressure regulator.
    2. Connect the pressure regulator from the fuel filter.

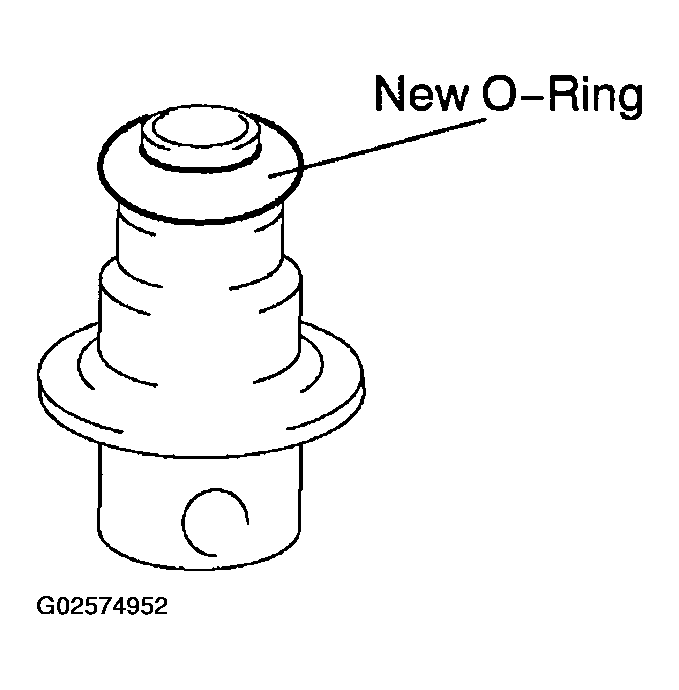

    Fig 1: Installing O-Ring To Pressure Regulator
    G02574952Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL NO.2 FUEL SUCTION SUPPORT (See  REASSEMBLY  )
  3. INSTALL FUEL PUMP ASSEMBLY TO FUEL TANK (See  INSTALLATION  )
