Windows Cannot Be Operated Via Regulator Switch At Each Seat: Wiring Diagram

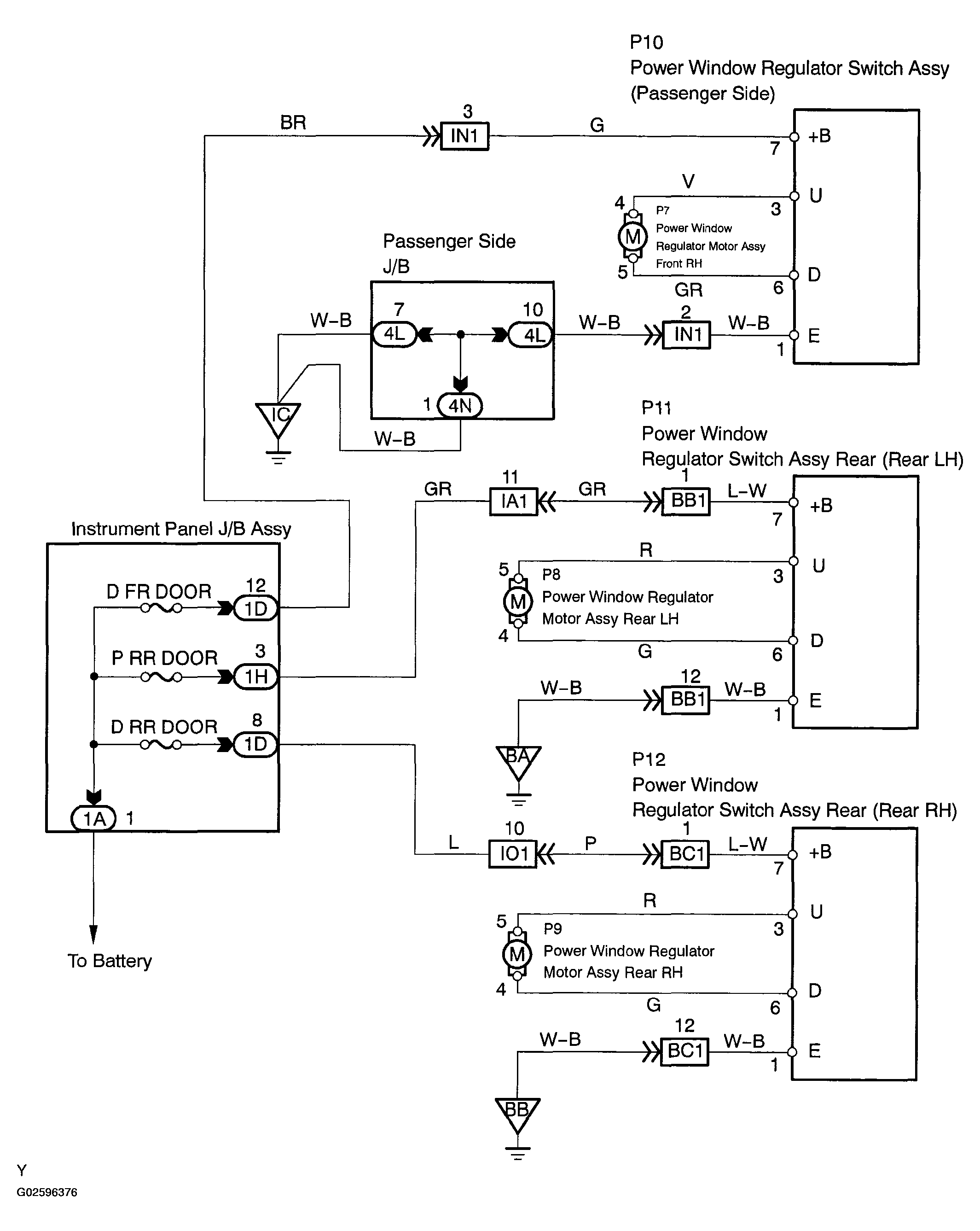

Fig 1: Wiring Diagram - Window Regulator Switches
G02596376Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
