Inspection Procedure

CHECK WIRE HARNESS
1. Disconnect the connectors of the power window regulator master switch assy and power window regulator motor assy LH.
2. Check the continuity between the master switch and regulator motor.
  Standard:

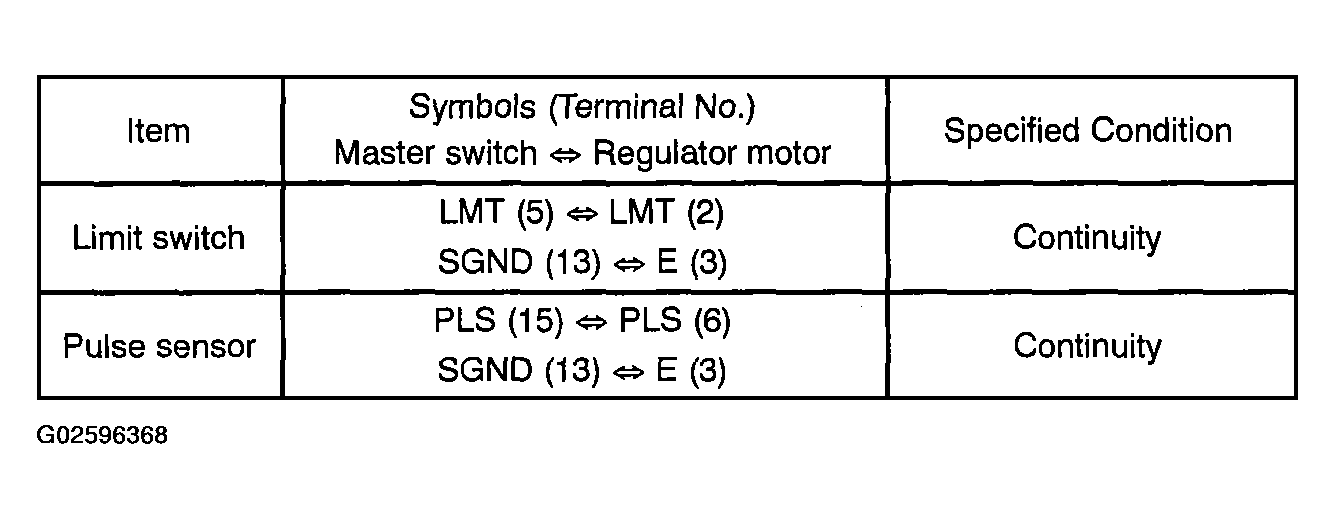

  Fig 1: Checking Power Window Regulator Master Switch Specified Condition
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

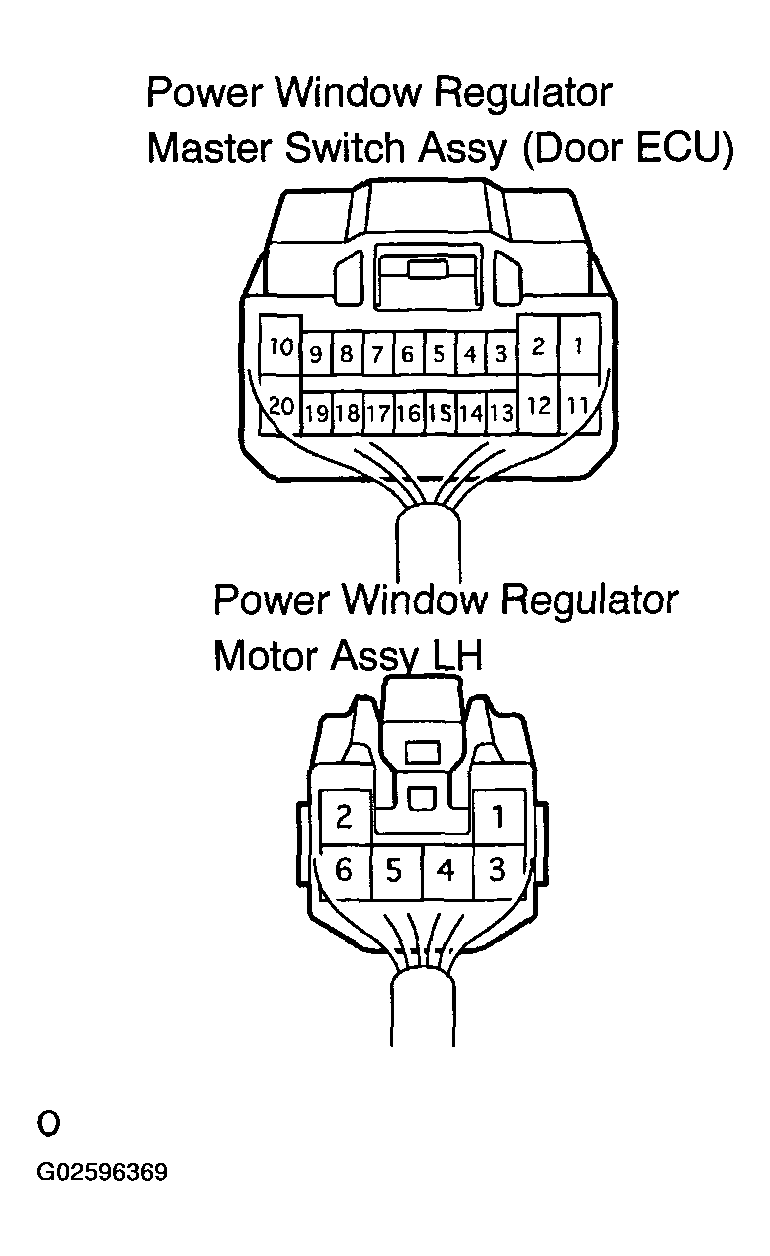

  Fig 2: Identifying Power Window Regulator Master Switch Connector Terminals
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. NG: REPAIR OR REPLACE HARNESS AND CONNECTOR
2. OK: REPLACE POWER WINDOW REGULATOR MOTOR ASSY LH (DRIVER SIDE)
