DTC B1231/31, B1232/32: Jam Protection Limit/Pulse Switch Circuit On Driver Door: Wiring Diagram

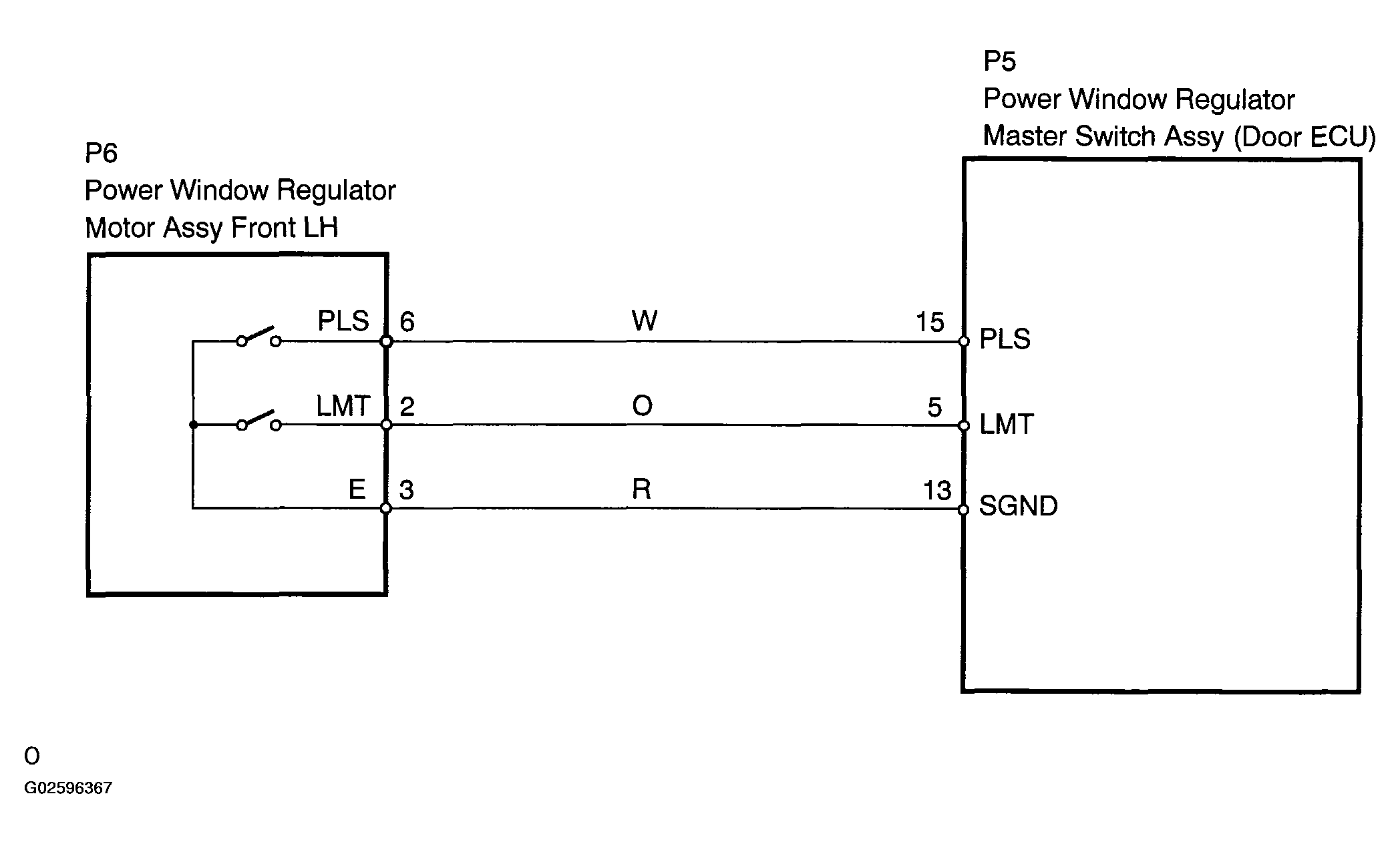

Fig 1: Wiring Diagram - Power Window Regulator Motor
G02596367Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
