Inspection Procedure

1. Check if the P FR DOOR 20 A, ECU B 7.5 A and IG1 7.5 A fuses are normal.

1. NG: REPLACE FUSE
2. OK: Go To Next Step

1. Check the power source voltage.
   1. Disconnect the master switch connector.
   2. Check the voltage of each terminal of the vehicle's side connector of the master switch.

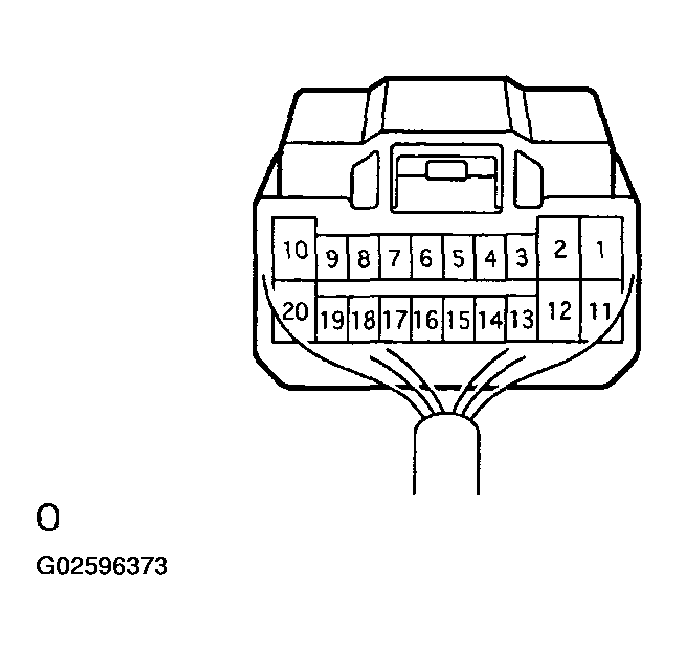

Fig 1: Identifying Power Window Regulator Master Switch Connector Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Standard:

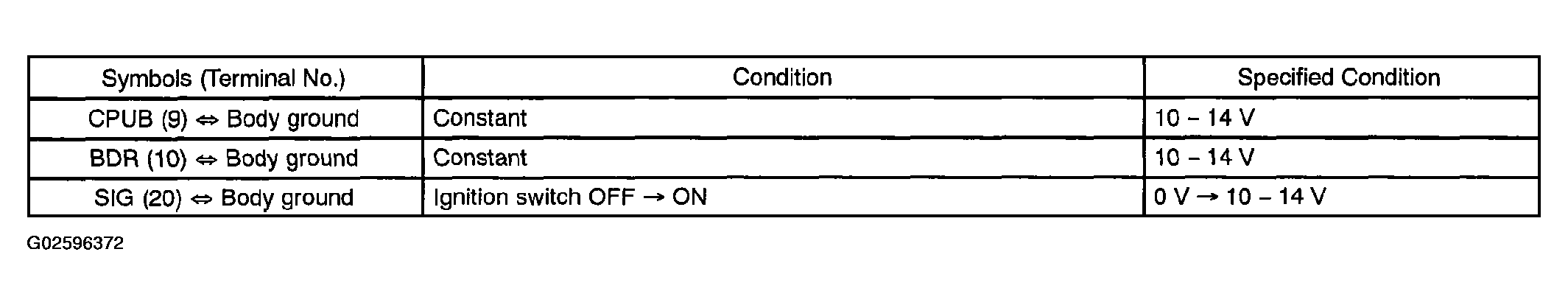

Fig 2: Checking Power Window Regulator Master Switch Specified Condition

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. NG REPAIR OR REPLACE HARNESS AND CONNECTOR
2. OK: Go To Next Step

1. Check the GND.
   1. Disconnect the master switch connector.
   2. Check the continuity between terminal 2 (GND) of the vehicle's side connector of the master switch and the body ground.

   Standard: Continuity (constant)

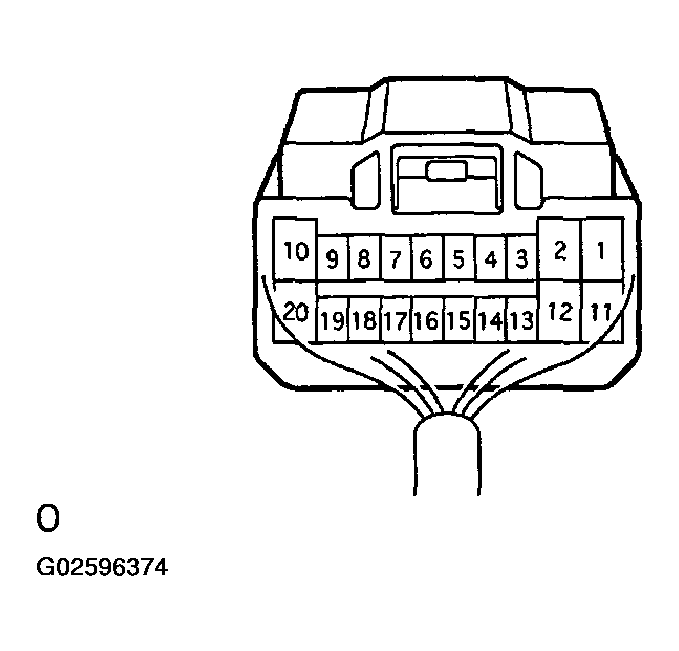

   Fig 3: Identifying Power Window Regulator Master Switch Connector Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. NG REPAIR OR REPLACE HARNESS AND CONNECTOR
2. OK: Go To Next Step

1. Disconnect the master switch connector.
2. Inspect the door glass operation when the battery voltage is applied between terminals 1 (UP) and 11 (DN) of the vehicle's side connector of the master switch.

   Standard:

   MEASURING CONDITION AND OPERATIONAL DIRECTION



   Measuring Condition	Operational Direction
   Battery positive - Terminal 1 (UP) Battery negative - Terminal 11 (DN)	Upward
   Battery positive - Terminal 11(DN) Battery negative - Terminal 1 (UP)	Downward

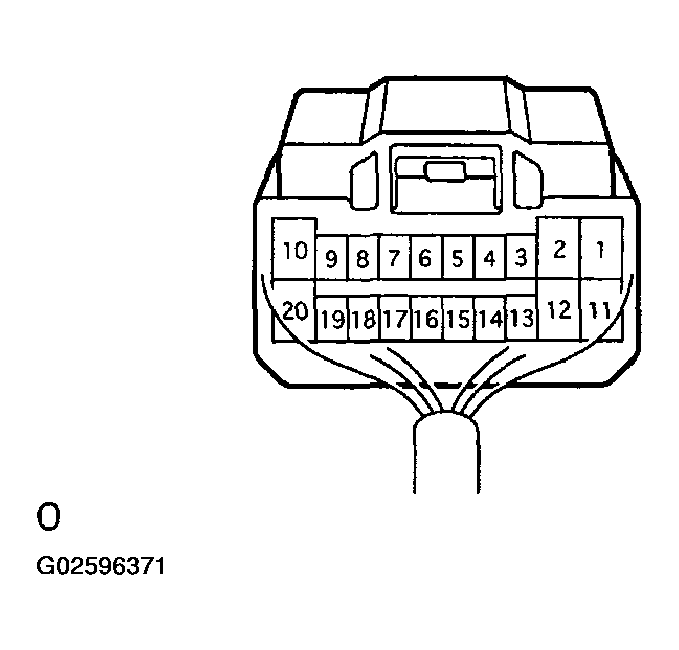

   Fig 4: Identifying Power Window Regulator Motor LH (Driver's Side) Connector Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. OK: REPLACE POWER WINDOW REGULATOR MASTER SWITCH ASSY
2. NG: Go To Next Step

1. Inspect the power window regulator motor assy LH (Driver side) operation.
   NOTE:

   • Do not apply the battery voltage, because the pulse sensor and limit switch could be damaged if the battery voltage is applied to terminals 2, 3 and 6 of the power window regulator motor connector.
   • Be sure to reset the power window regulator motor (initial position setting of limit switch) when the driver's side power window regulator motor is installed to the regulator.

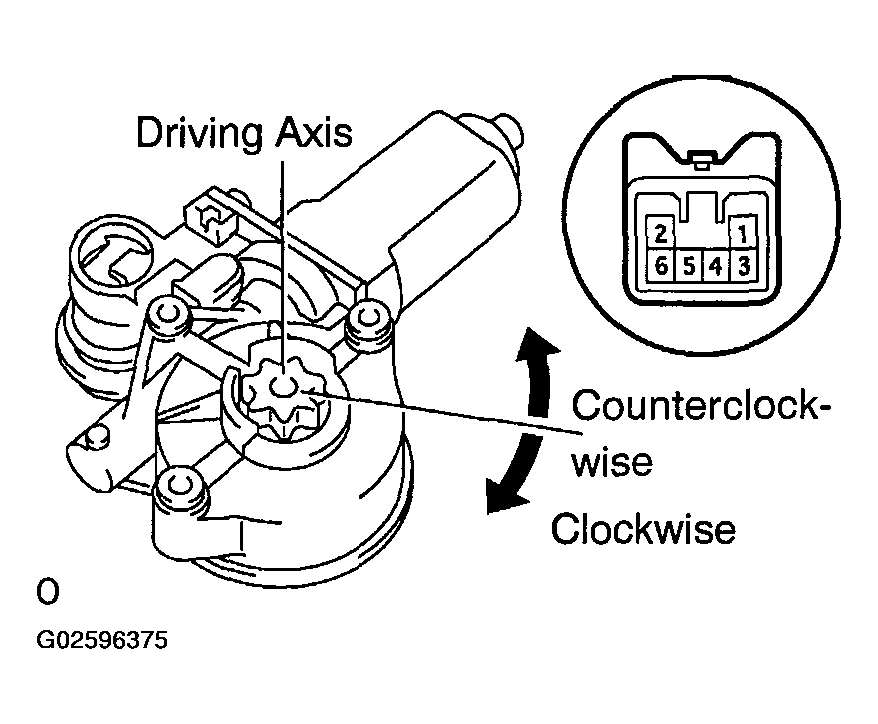

   Fig 5: Identifying Power Window Regulator Motor Assy LH (Driver Side) Connector Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   1. Check that the motor operator operates smoothly when the battery positive voltage is applied to each terminal of the connector.

   Standard:

   MEASURING CONDITION AND OPERATIONAL DIRECTION



   Measuring Condition	Operational Direction
   Battery positive - Terminal 5 Battery negative - Terminal 4	Clockwise
   Battery positive - Terminal 4 Battery negative - Terminal 5	Counterclockwise

2. Inspect the PTC operation inside the power window regulator motor.
   NOTE: The inspection should be performed with the power window regulator and door glass installed to the vehicle.
   1. Set a DC 400 A probe of the electrical tester in the wire harness of terminal 4 or 5.
      NOTE: Match the arrow mark of the probe with the current direction.
   2. Set the door glass in the fully closed position.
   3. When 60 seconds have elapsed after the door glass is fully closed, check now long the current takes to charge, from approximately 16 - 34 A into 1 A or less, when the power window switch is turned UP once again.

      Standard: Approximately 4 - 90 seconds

   4. When approximately 60 seconds have elapsed after the inspection of the current cut-off, check that the door glass goes down when the power window regulator switch is turned DOWN.

1. NG: REPLACE POWER WINDOW REGULATOR MOTOR ASSY LH
2. OK: REPAIR OR REPLACE HARNESS AND CONNECTOR
