ECM (2AZ-FE): Replacement

  1. DISCONNECT BATTERY NEGATIVE TERMINAL
  2. REMOVE FRONT DOOR SCUFF PLATE RH (See  REPLACEMENT  )
  3. REMOVE COWL SIDE TRIM SUB-ASSY RH (See  REPLACEMENT  )
  4. REMOVE GLOVE COMPARTMENT DOOR ASSY (See  REPLACEMENT  )
  5. REMOVE INSTRUMENT PANEL FINISH PANEL LOWER NO.2 (See  REPLACEMENT  )
  6. REMOVE ECM
    1. Remove the 2 wire harness clamps.
    2. Disconnect the 5 ECM connectors.
    3. Remove the 2 nuts and ECM.

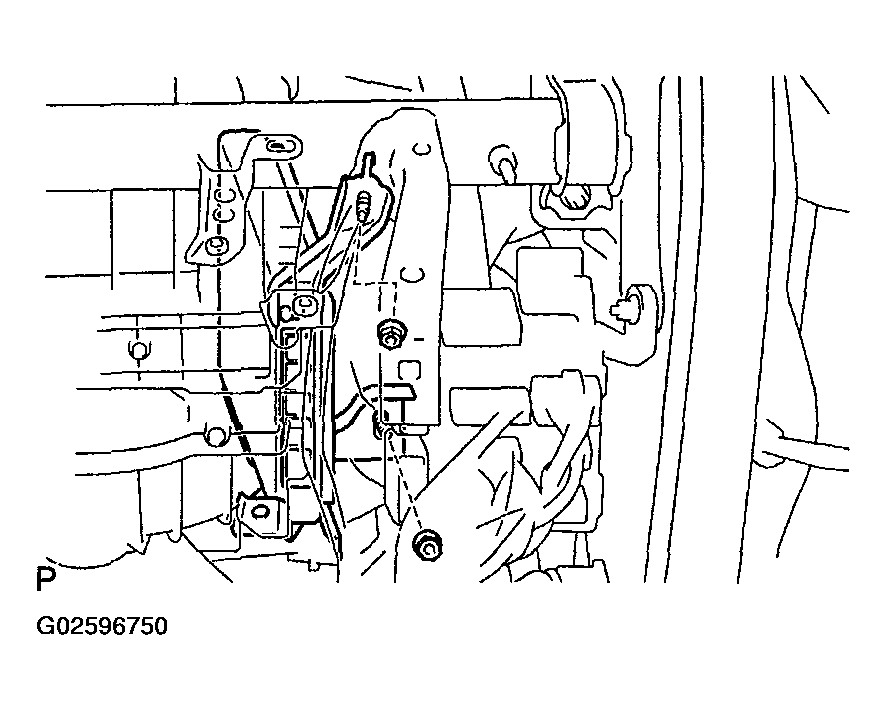

    Fig 1: Removing ECM
    G02596750Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE ECM BRACKET NO.1
    1. Remove the 2 screws and ECM bracket.

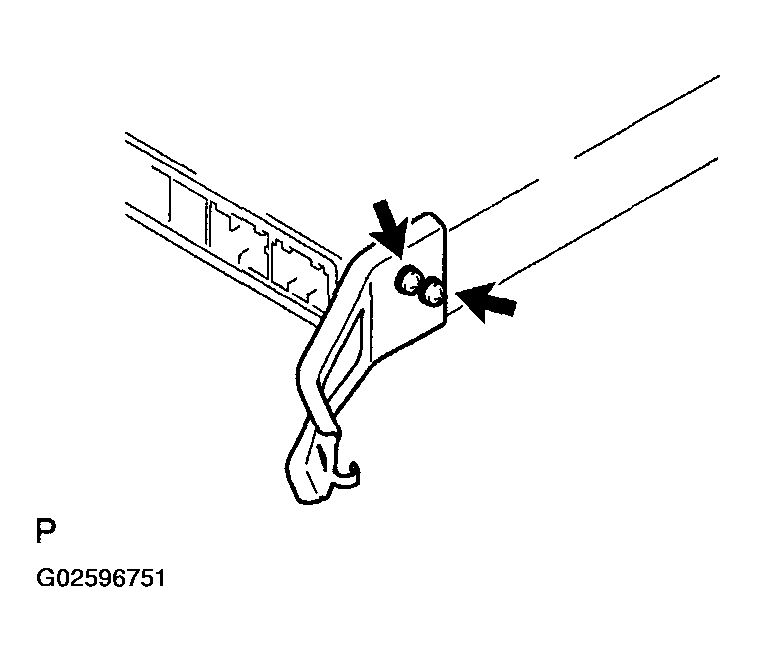

    Fig 2: Removing ECM Bracket No.1
    G02596751Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE ECM BRACKET NO.2
    1. Remove the 2 screws and ECM bracket.
  9. INSTALL ECM BRACKET NO. 2
    1. Install the ECM bracket with the 2 screws.

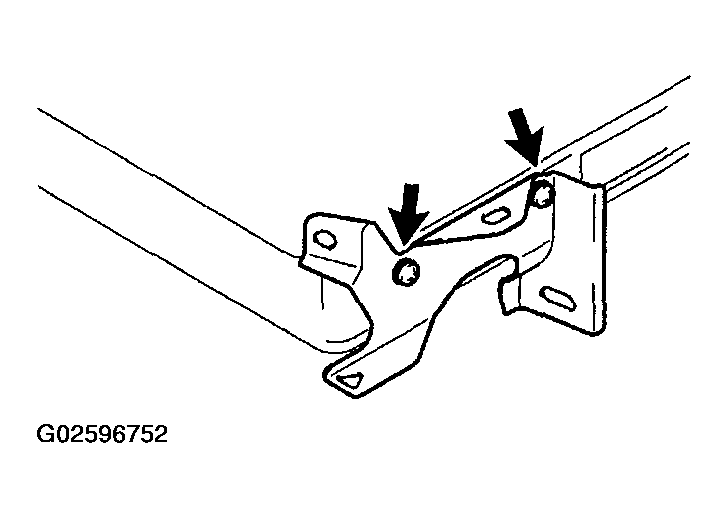

    Fig 3: Installing ECM Bracket No. 2
    G02596752Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. INSTALL ECM BRACKET NO. 1
    1. Install the ECM bracket with the 2 screws.
    Fig 4: Installing ECM Bracket No. 1
    G02596753Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. INSTALL ECM
    1. Install the 2 wire harness clamps
    2. Connect the 5 ECM connectors.
    3. Install the ECM with the 2 nuts.

      Torque: 5.5 N m (56 kgf.cm, 49 in. lbf)

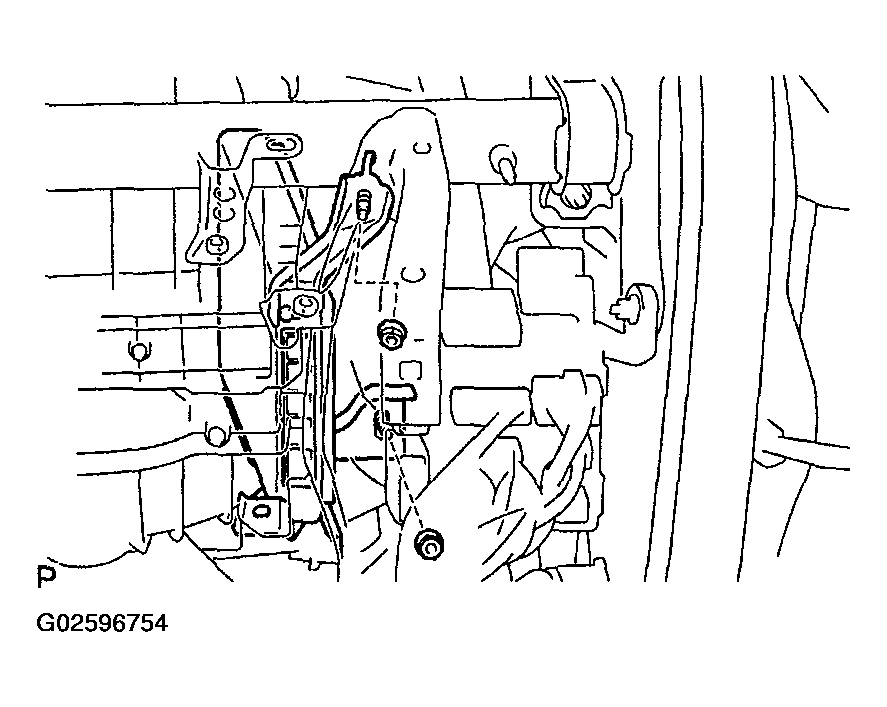

    Fig 5: Installing ECM
    G02596754Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. INSTALL INSTRUMENT PANEL FINISH PANEL LOWER NO.2 (See  REPLACEMENT  )
  13. INSTALL GLOVE COMPARTMENT DOOR ASSY (See  REPLACEMENT  )
  14. INSTALL COWL SIDE TRIM SUB-ASSY RH (See  REPLACEMENT  )
  15. INSTALL FRONT DOOR SCUFF PLATE RH (See  REPLACEMENT  )
  16. CONNECT BATTERY NEGATIVE TERMINAL
