Power Mirror Control System: Inspection

INSPECT OUTER MIRROR SWITCH ASSY
1. Inspect the mirror switch continuity.
  1. Turn to the left/right adjustment switch to the L position.
    Inspect the left side mirror switch continuity.

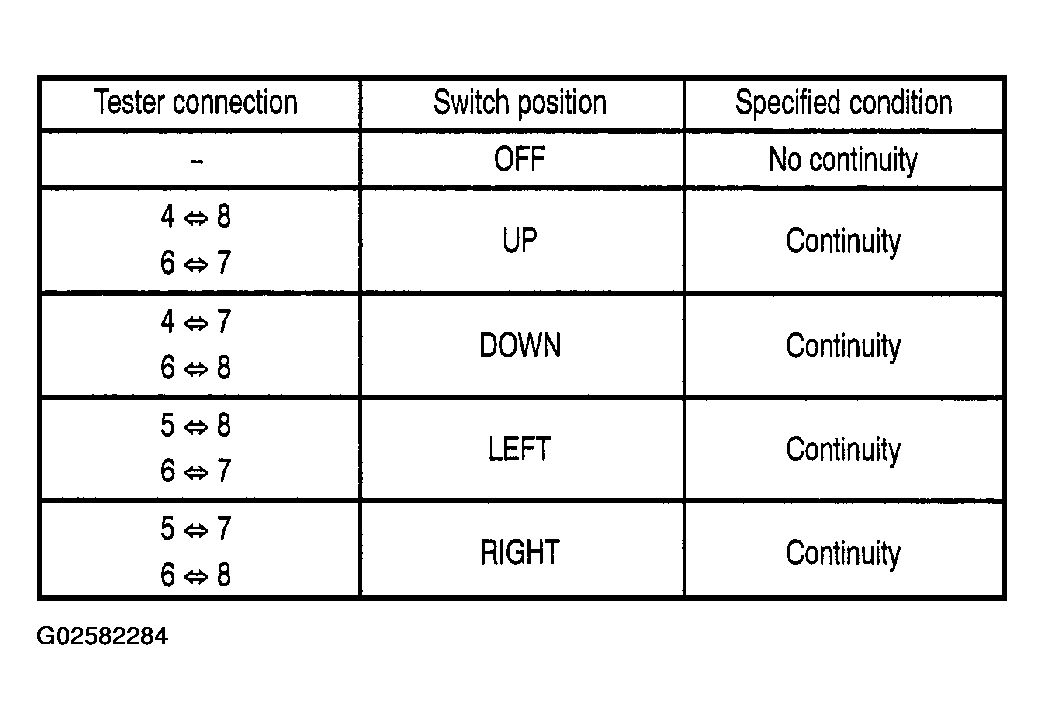

    Fig 1: Left Side Mirror Switch Continuity Chart
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    If the continuity is not as specified, replace the switch.
  2. Turn to the left/right adjustment switch to the R position.
    Inspect the right side mirror switch continuity.

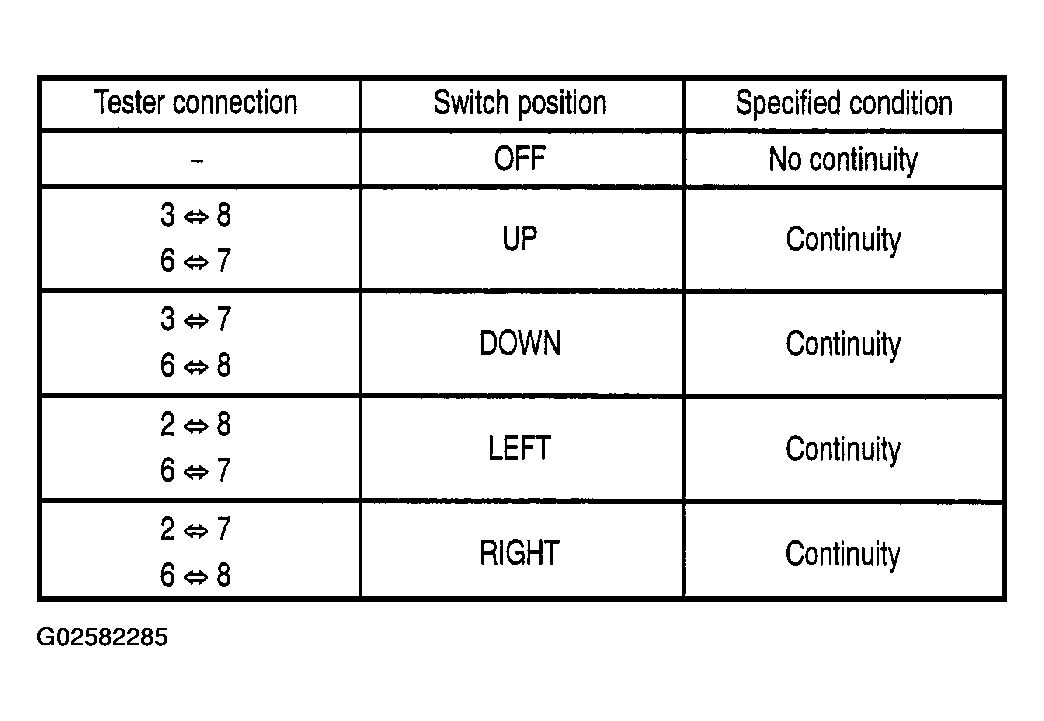

    Fig 2: Right Side Mirror Switch Continuity Chart
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    If the continuity is not as specified, replace the switch.

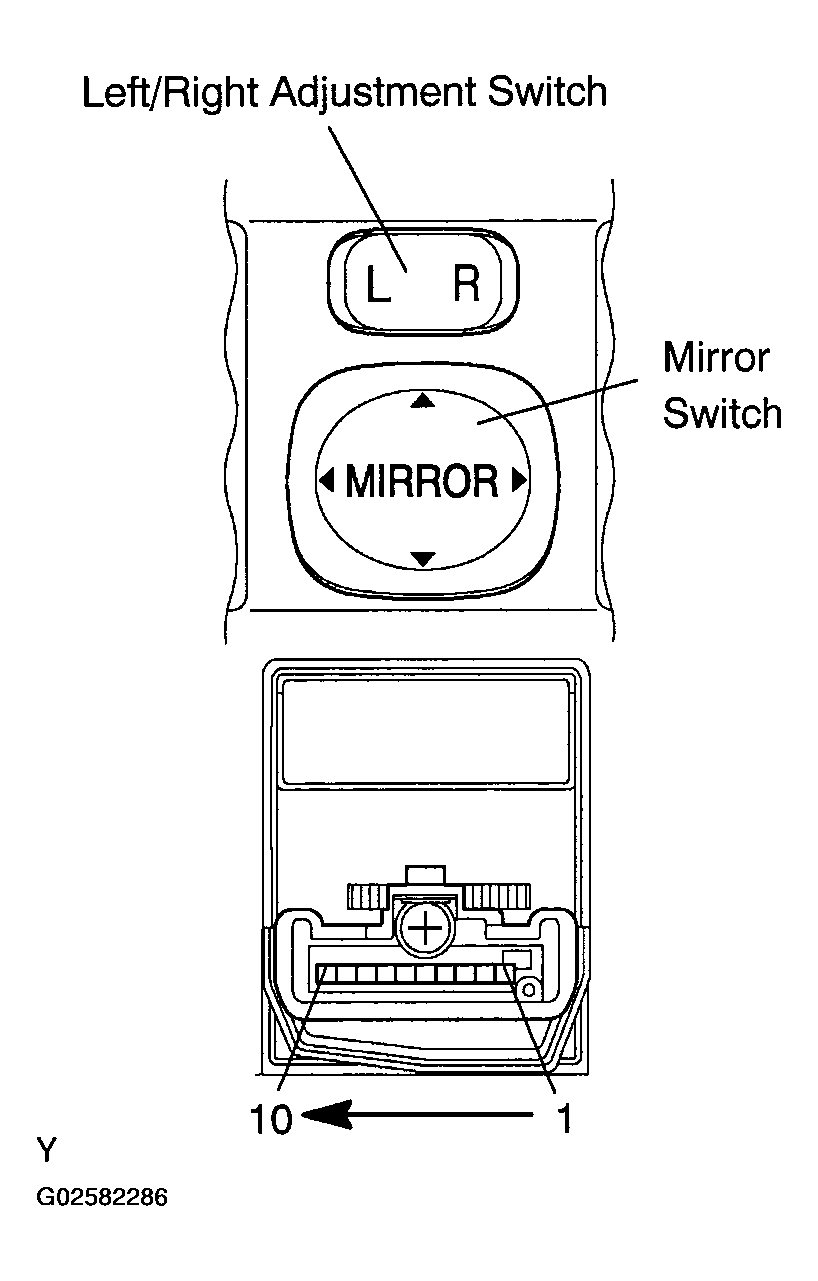

    Fig 3: Inspecting Outer Mirror Switch Assy
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

INSPECT OUTER REAR VIEW MIRROR ASSY RH

Inspect operation of the mirror motor.

BATTERY CONNECTION AND MIRROR OPERATION

Battery connection	Mirror operation
Positive (+) - 6 Negative (-) - 5	Upward
Positive (+) - 5 Negative (-) - 6	Downward
Positive (+) - 4 Negative (-) - 5	Left
Positive (+) - 5 Negative (-) - 4	Right

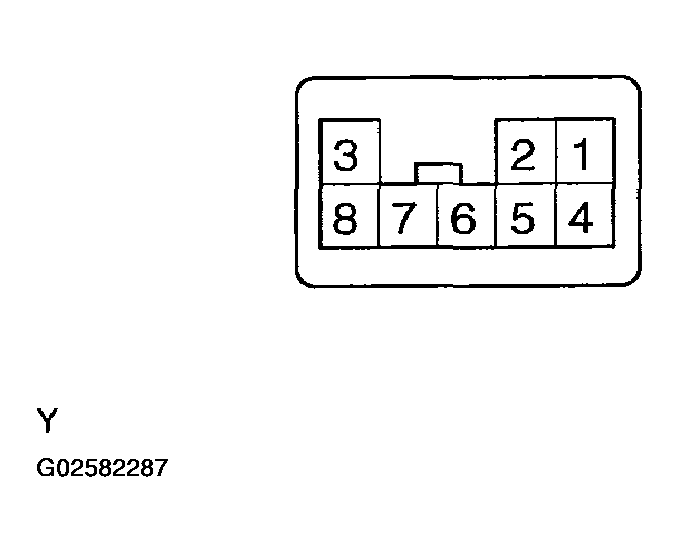

Fig 4: Identifying Terminals Of Mirror Motor Connector (Outer Rear View Mirror Assy RH)

G02582287

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Check operation of the mirror heater.
1. Check the mirror between terminals 7 and 8 of the connector.
  Standard: continuity
2. Check that the mirror is warmed up when connecting the battery positive (+) to terminal 7 and the battery negative (-) to terminal 8 of the connector.

INSPECT OUTER REAR VIEW MIRROR ASSY LH

Inspect operation of the mirror motor.

BATTERY CONNECTION AND MIRROR OPERATION

Battery connection	Mirror position
Positive (+) - 6 Negative (-) - 5	Turn upward
Positive (+) - 5 Negative (-) - 6	Turn downward
Positive (+) - 4 Negative (-) - 5	Turn left
Positive (+) - 5 Negative (-) - 4	Turn right

Check operation of the mirror heater.
1. Check the mirror between terminals 7 and 8 of the connector.
  Standard: continuity
2. Check that the mirror is warmed up when connecting the battery positive (+) to terminal 7 and the battery negative (-) to terminal 8 of the connector.

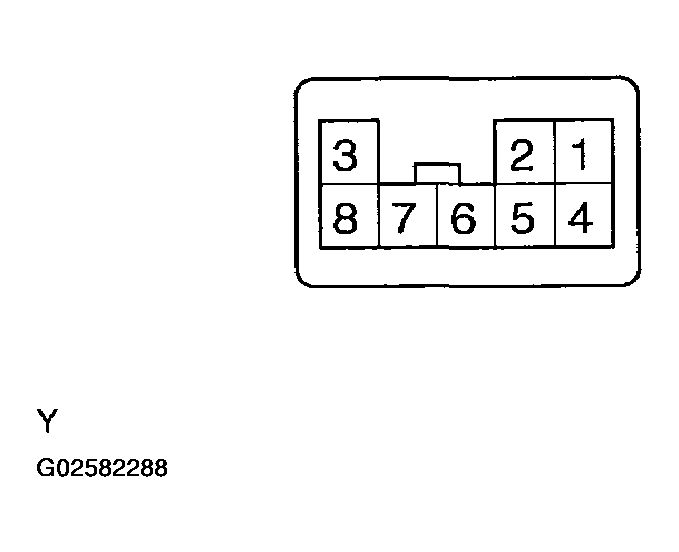

  Fig 5: Identifying Terminals Of Mirror Motor Connector (Outer Rear View Mirror Assy LH)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
