Diagnostic Trouble Code Table
DIAGNOSTIC TROUBLE CODES (DTC) LIST
| DTC | Description |
|---|---|
| DTC P0500/21, P0503/23 | Vehicle Speed Sensor "A" Intermittent/Erratic/High |
| DTC P0571/52 | Brake Switch "A" Circuit |
| DTC P0607/54 | Control Module Performance |

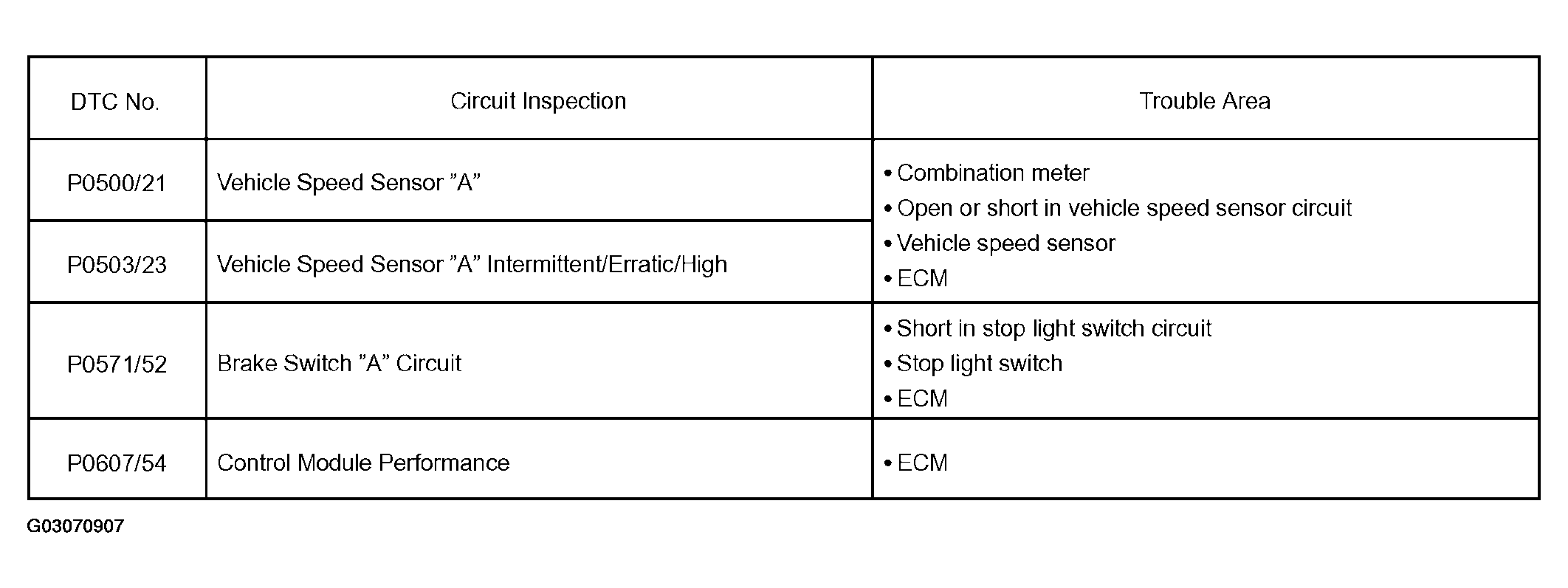

If a malfunction code is displayed during the DTC check, check the circuit listed for that code in Fig 1 and proceed to the appropriate DTC No.
