Front Seat: Reassembly

INSTALL SEAT POSITION SENSOR

1. Install the seat position sensor with a new bolt, then connect the connector.

Part No.:

Bolt: 90119-06871

Torque: 8.0 N.m (82 kgf.cm, 71 in.lbf)

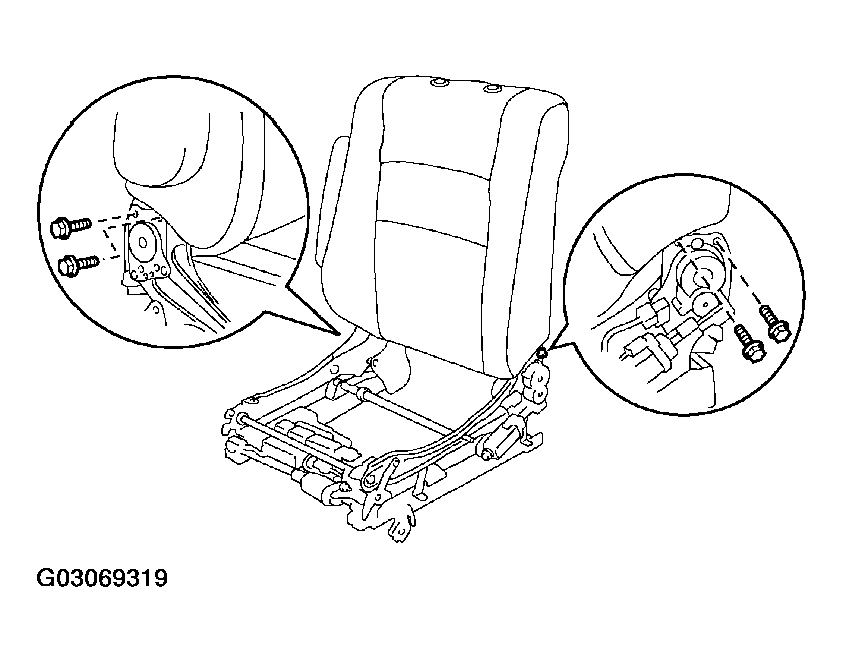

Fig 1: Identifying Seat Position Sensor Bolt (Driver's Side)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Install the seat position control relay with the 2 bolts, then connect the connectors.

Torque: 5.5 N.m (56 kgf.cm, 49 in.lbf)

Install the seatback cover to the seatback pad with new hog rings.

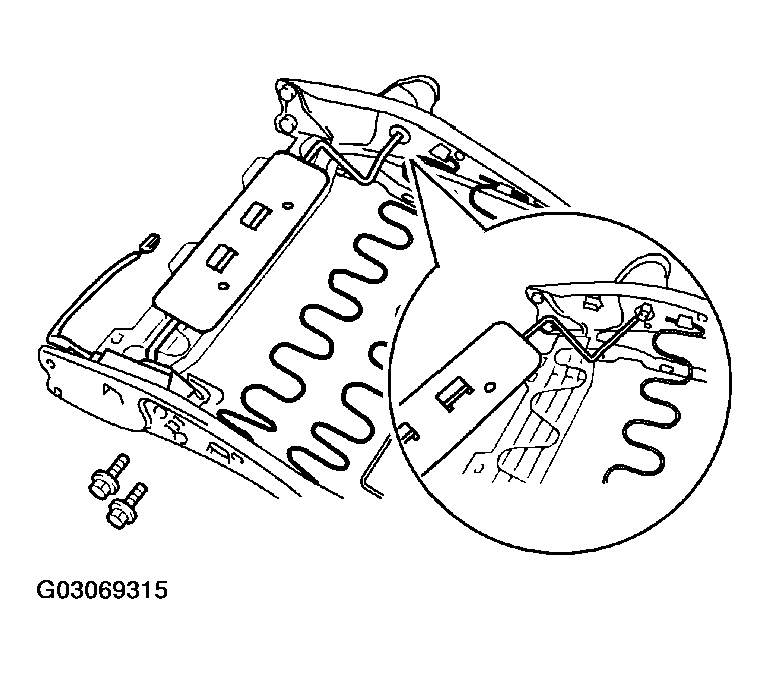

Fig 2: Identifying Seatback Cover Hog Rings

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Install the lumber support and the spacer with the 2 bolts.

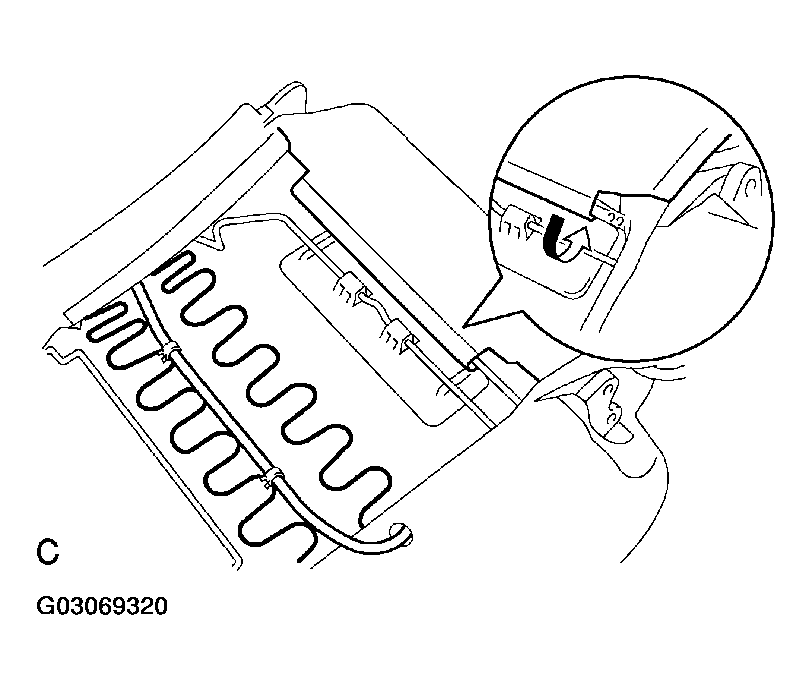

Fig 3: Identifying Lumber Support Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

INSTALL SEATBACK FRAME

1. Install the seatback cover to the seatback frame.
2. Install new hog rings.
3. Install the 2 headrest supports.
   Fig 4: Seatback Frame (Without Side Airbag)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

INSTALL SEATBACK FRAME

1. Install the seatback cover to the seatback frame.
2. Install new hog rings, the clamps and the 2 bolts.

   Torque: 4.7 N.m (48 kgf.cm, 42 in.lbf)

3. Install the 2 headrest supports.
   Fig 5: Seatback Frame (With Side Airbag)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. w/o Side Airbag:

   Install the RH reclining adjuster inside shield with a screw.

2. w/ Side Airbag:

   Place the airbag connector along the inner seat adjuster, and then install the RH reclining adjuster inside shield with a screw so that the connector is placed in between.

   NOTE: When handling the airbag connector, take care not to damage the airbag wire harness.
3. Install the LH reclining adjuster inside shield with a screw.
   Fig 6: Identifying Reclining Adjuster Inside Shield Screw

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Install the seatback assembly with the 4 bolts.

   Torque: 43 N.m (440 kgf.cm, 32 ft.lbf)

   Fig 7: Identifying Seatback Assembly Bolts

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Install new hog rings.
6. Hang the hook.
   Fig 8: Disengaging Hook

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
7. Connect the connectors.

Torque: 37 N.m (380 kgf.cm, 27 ft.lbf)

1. Install the seat cushion frame with new hog rings to the seat cushion cover with pad.
2. Hang the hook.

1. Install the seat cushion assembly with the 4 bolts to the seat adjuster.

   Torque: 21 N.m (210 kgf.cm, 15 ft.lbf)

2. Engage the wire harness clamp.
   Fig 9: Identifying Seat Cushion Assembly Bolts

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Install the seat cushion shield with the screw.

Fig 10: Identifying Front Seat Cushion Shield Screw

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Install the seat cushion shield with the screw.

Fig 11: Identifying Lower Seat Cushion Shield Fasteners

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Install the seat cushion inner shield with the 3 screws.

Fig 12: Identifying Seat Cushion Inner Shield Screws

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Engage the clamp, then connect the connector.
2. Install the inner belt with the bolt.

   Torque: 42 N.m (430 kgf.cm, 31 ft.lbf)

   Fig 13: Identifying Inner Belt Bolt

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the power seat switch with the 3 screws.
2. Install the lumber support switch with the 2 screws.
3. Connect the connectors as shown.
   Fig 14: Identifying Seat Cushion Outer Shield Electrical Connectors

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Install the seat cushion outer shield with the 4 screws.
5. Install the power seat switch knobs.
