Front Door: Components

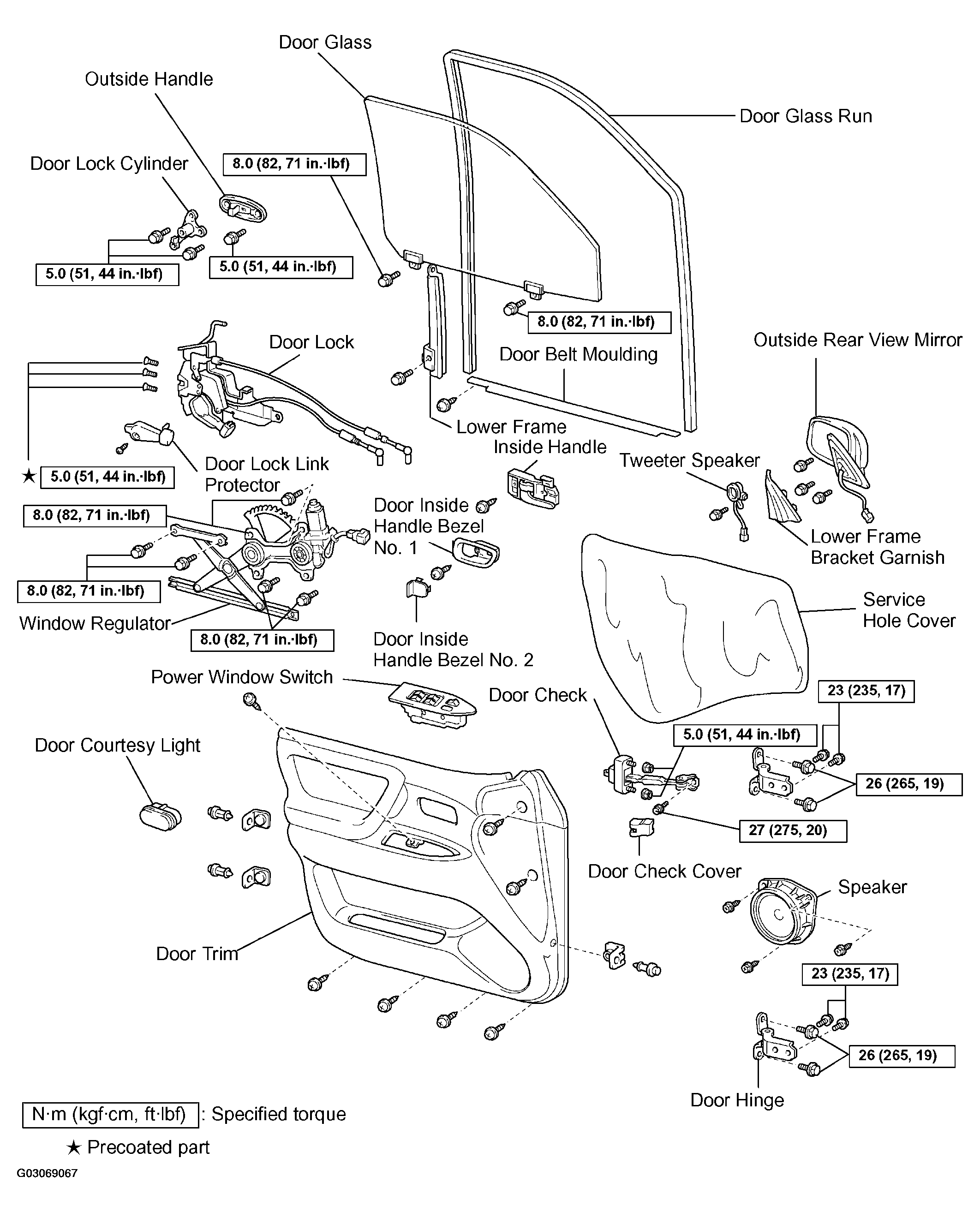

Fig 1: Identifying Components

G03069067

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
