Power Source: Location

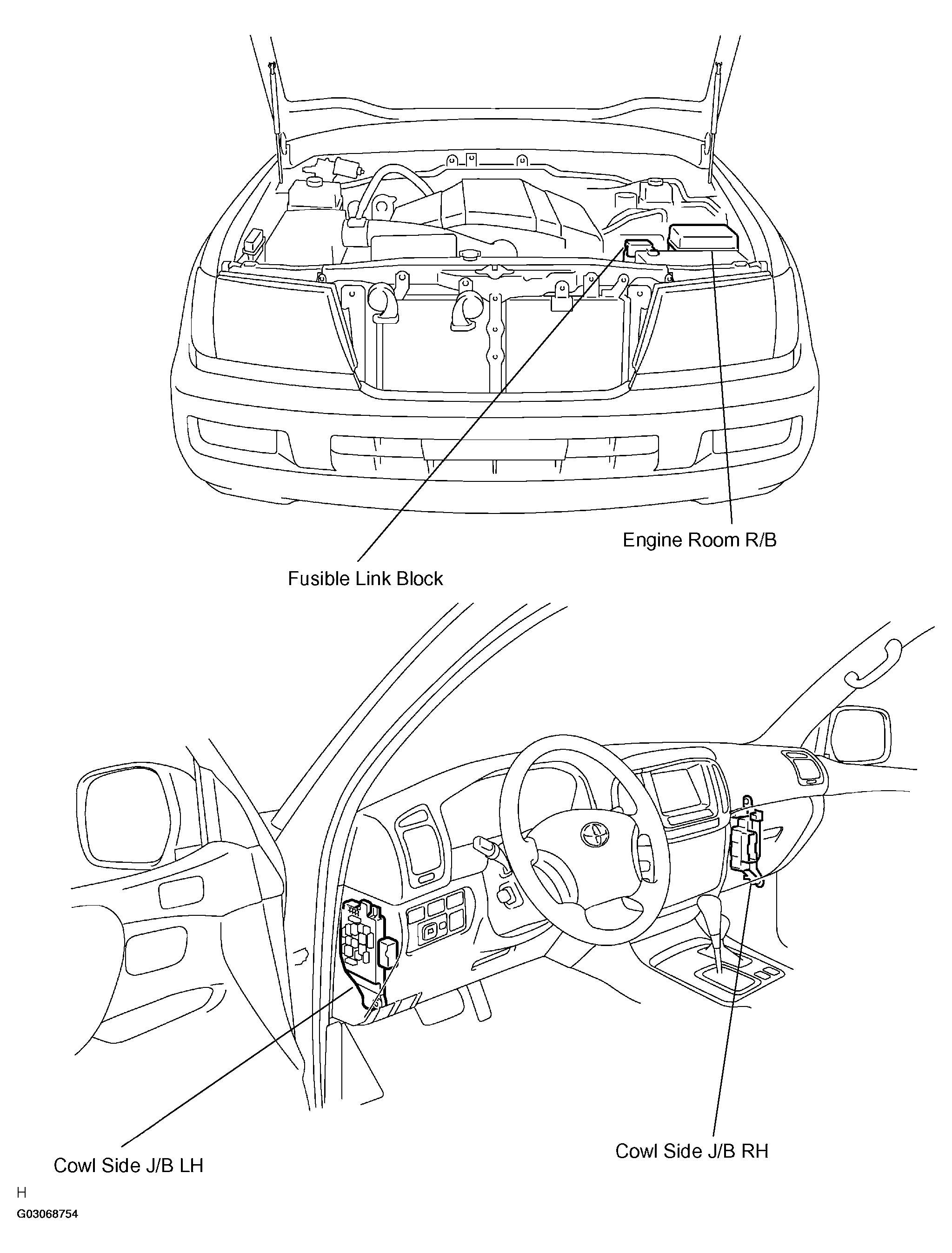

Fig 1: Identifying Power Source Components Location
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

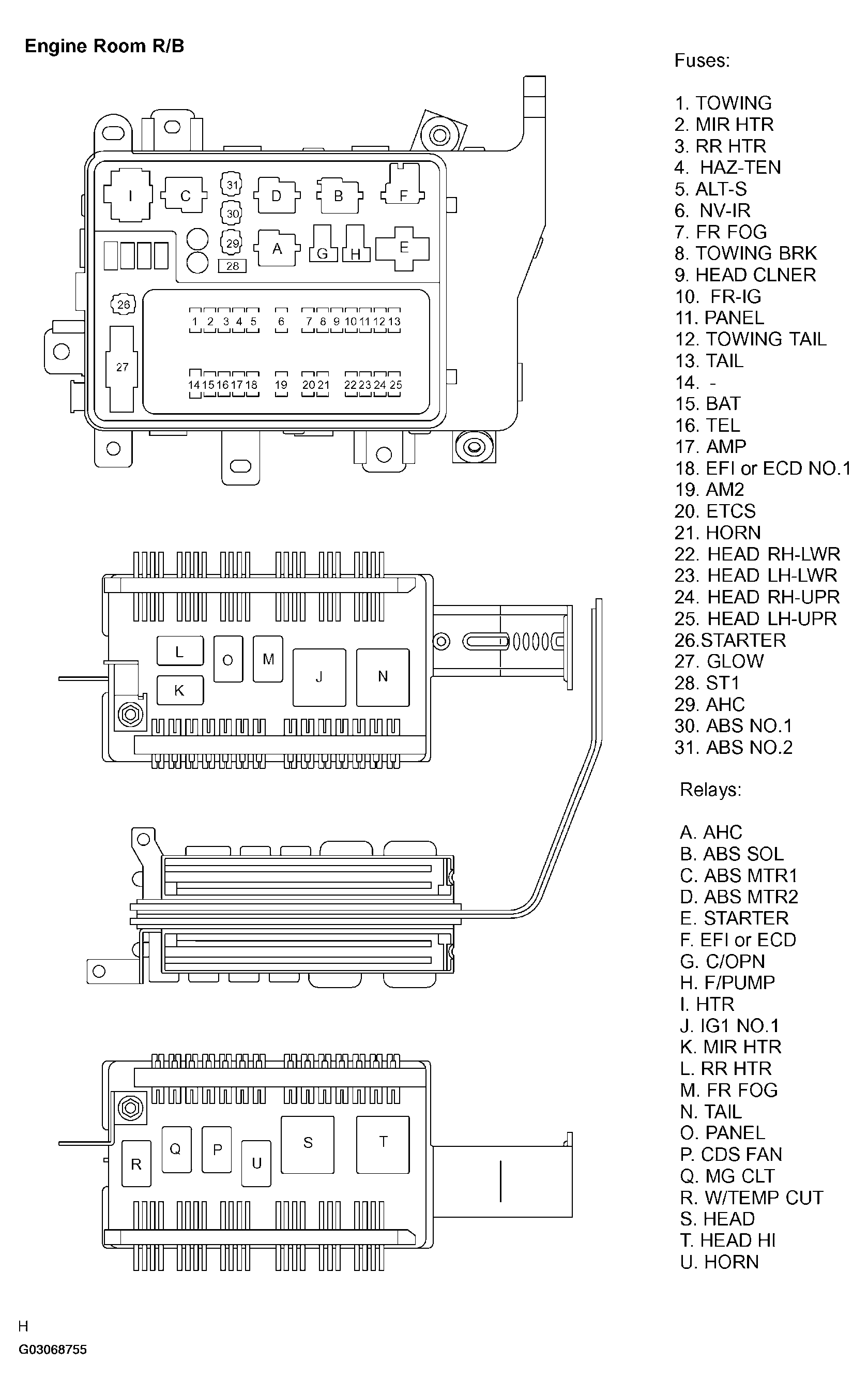

Fig 2: Identifying Power Source Component Location (Engine Room R/B)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

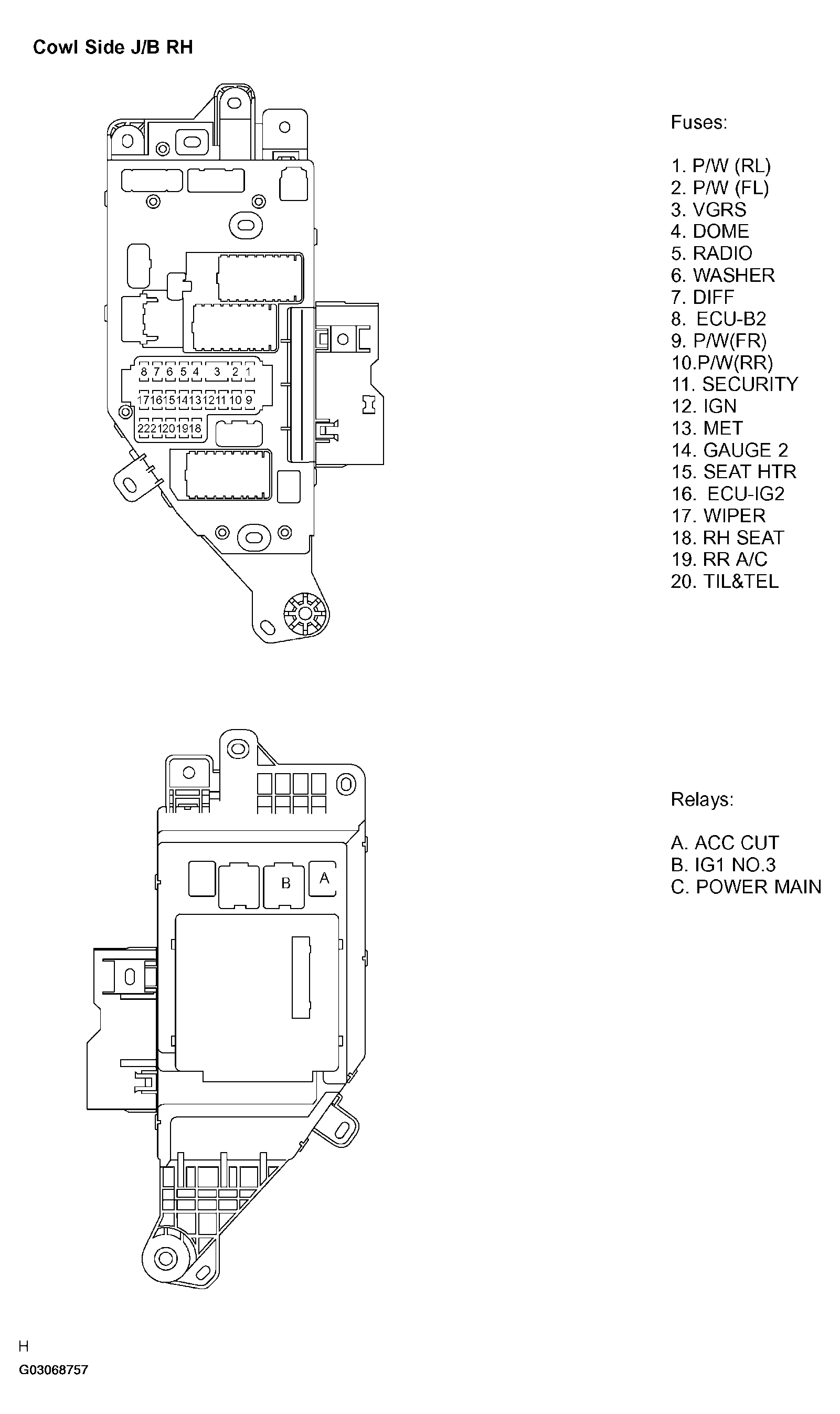

Fig 3: Identifying Power Source Component Location (Cowl Side J/B RH)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

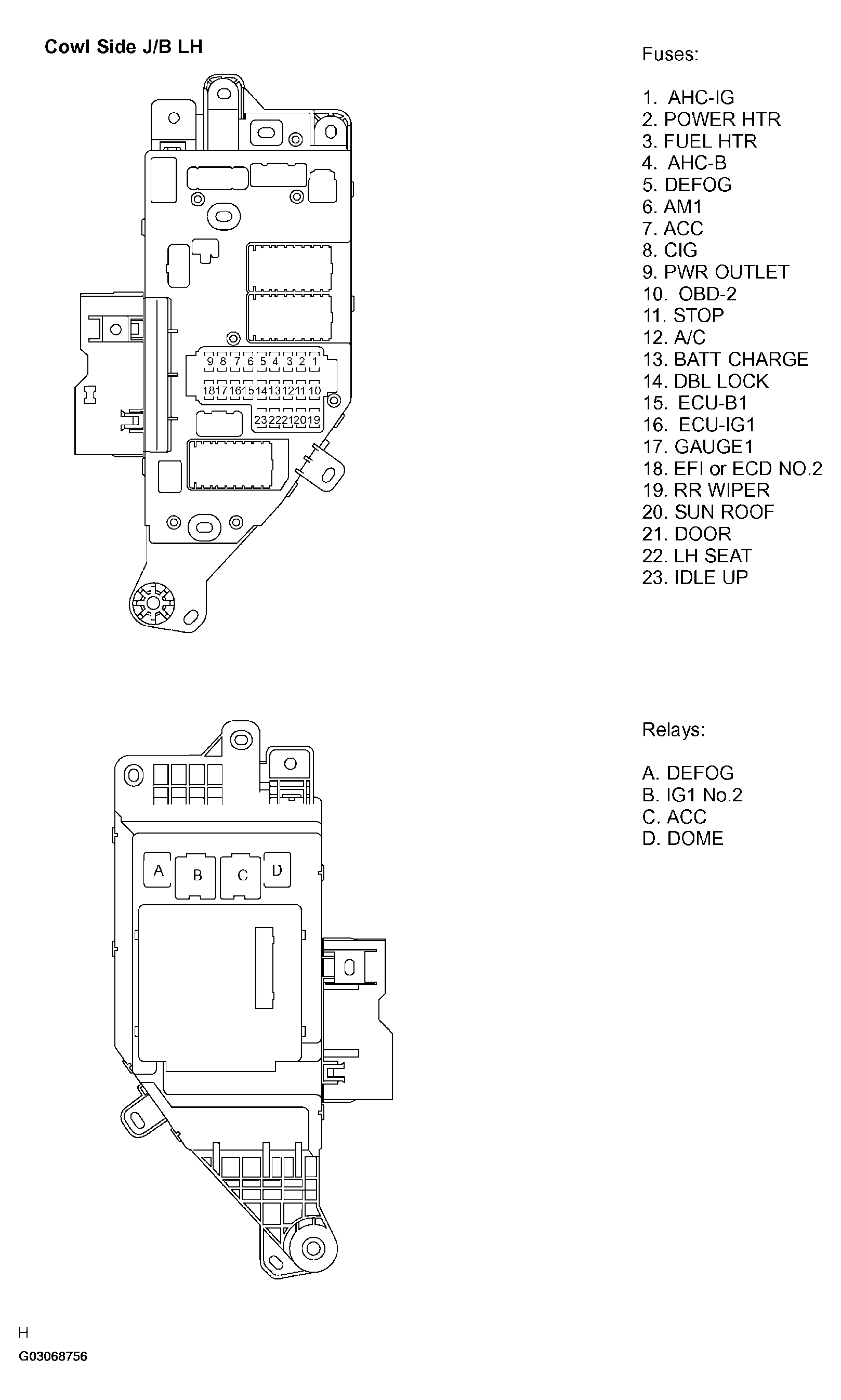

Fig 4: Identifying Power Source Component Location (Cowl Side J/B LH)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
