Overhead Junction Block: Circuit

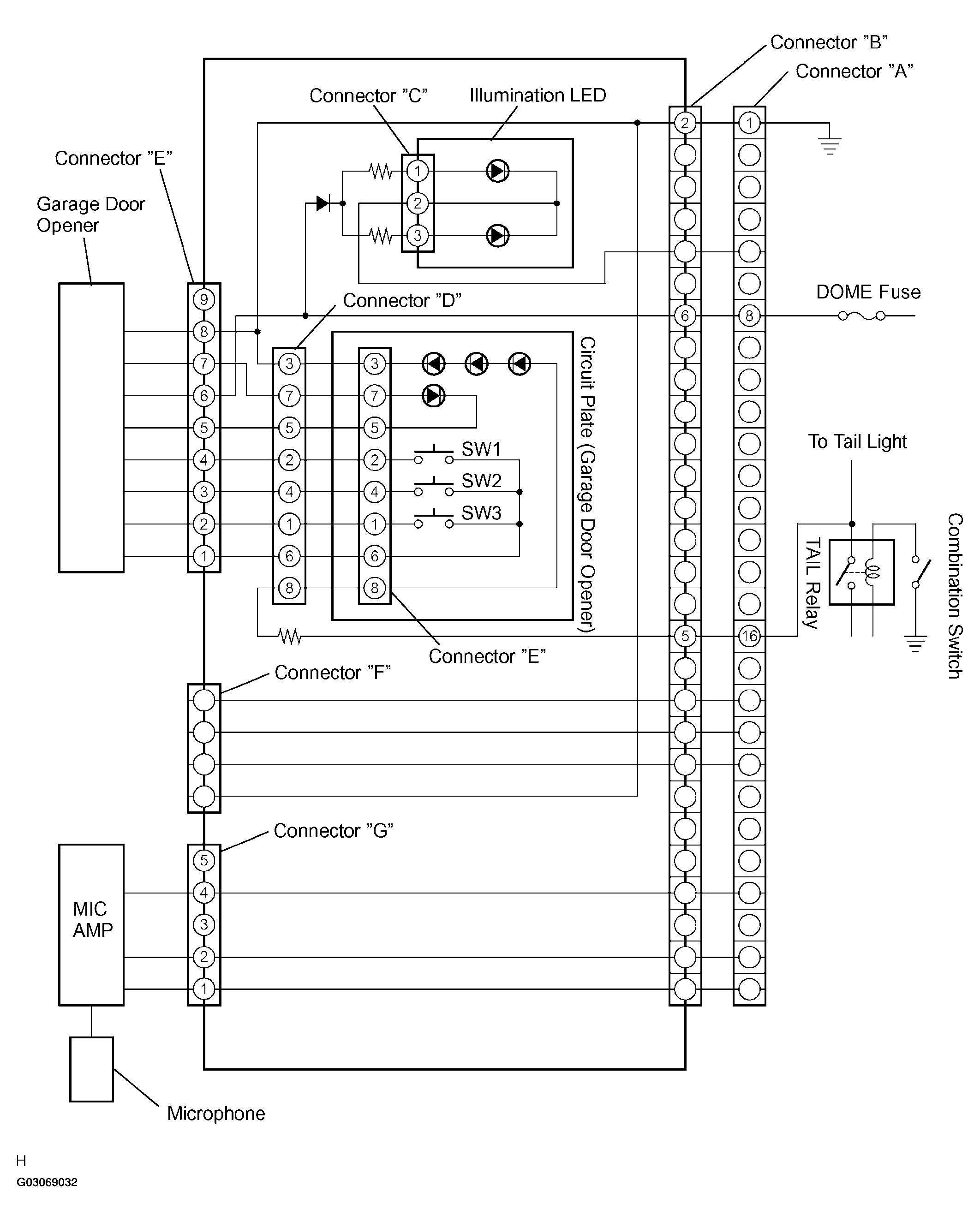

Fig 1: Overhead Junction Block Circuit
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
