Overhead Junction Block: Location

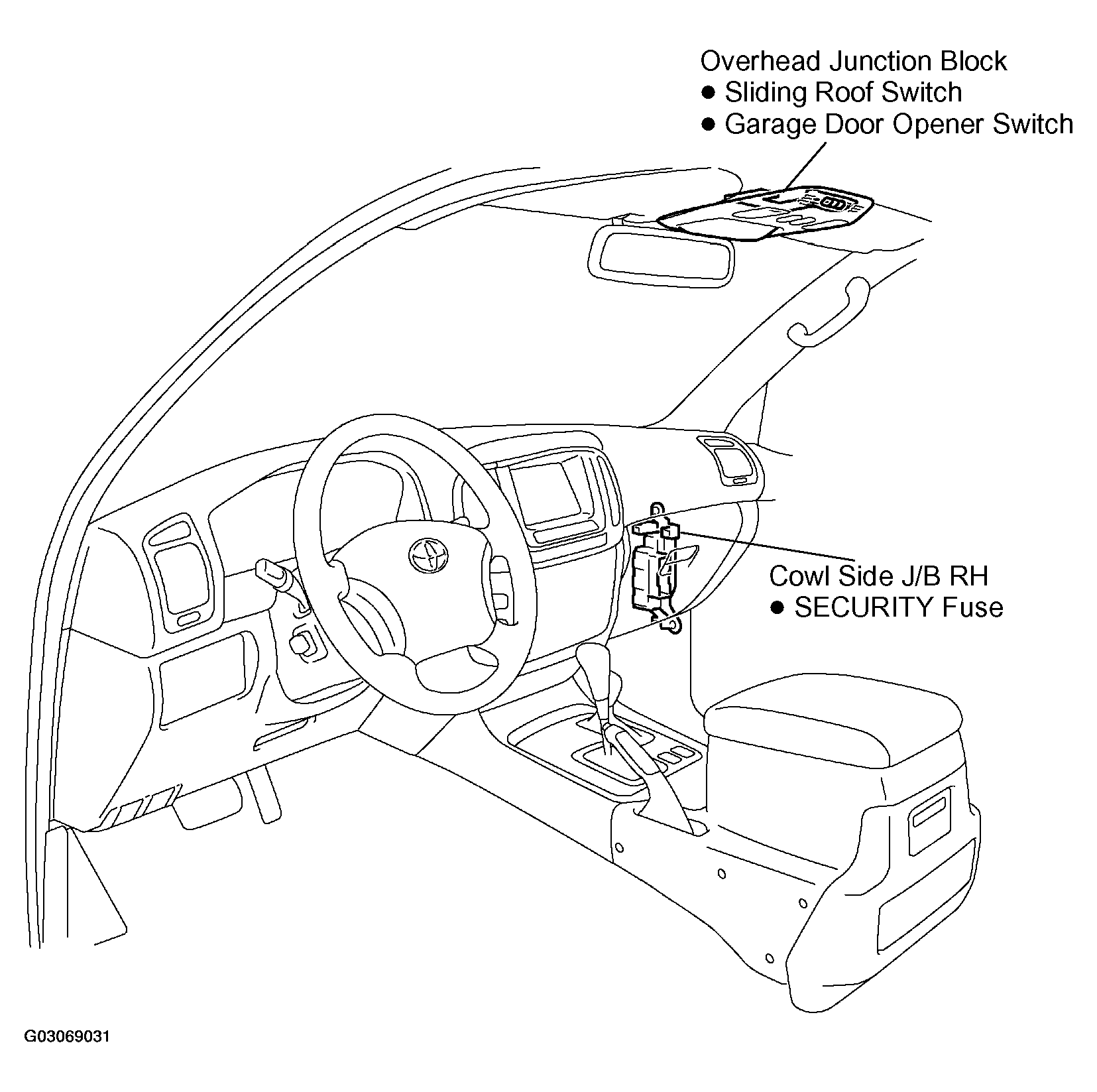

Fig 1: Locating Overhead Junction Block Components
G03069031Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
