Circuit Description

Refer to DTC P0115  .

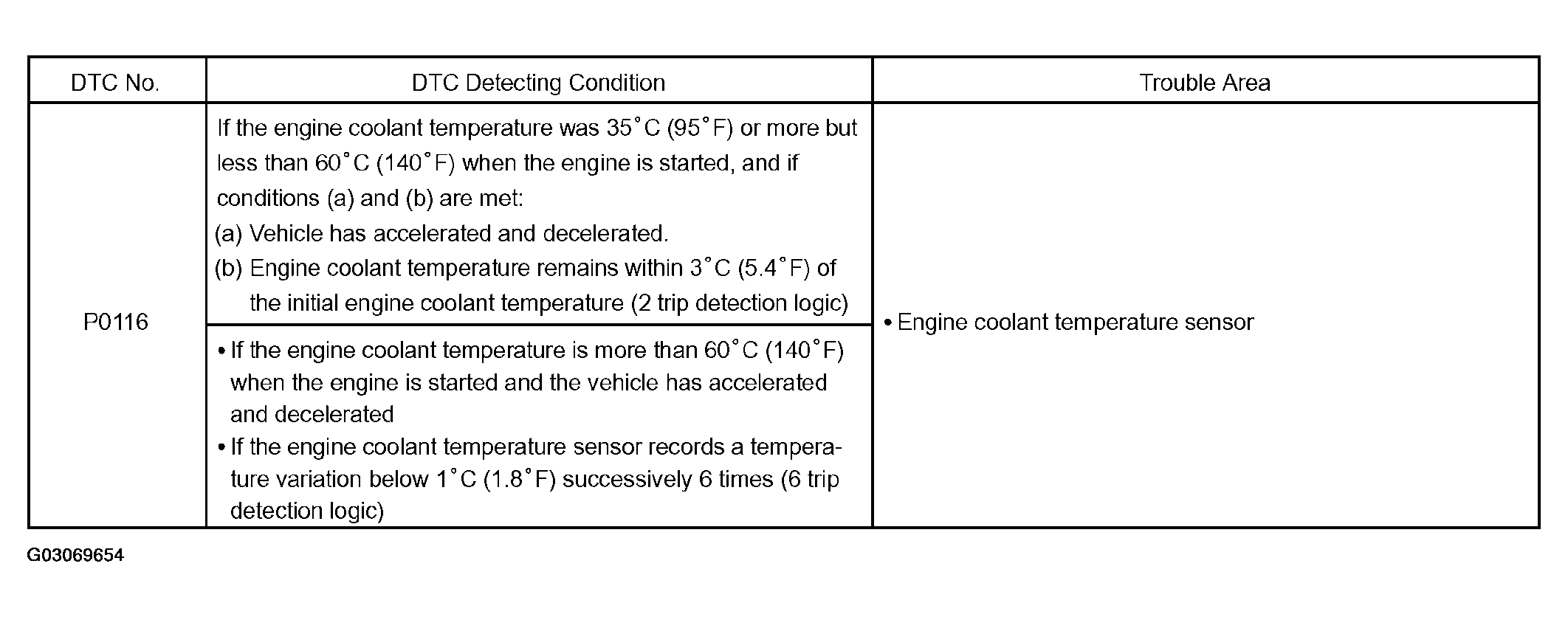

Fig 1: DTC Detecting Condition Table
G03069654Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
