Engine - Diagnostics
>>
Circuit Inspection
>>
DTC P2121: Throttle/Pedal Position Sensor/Switch "D" Circuit Range/Performance
>>
Circuit Description
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit Description

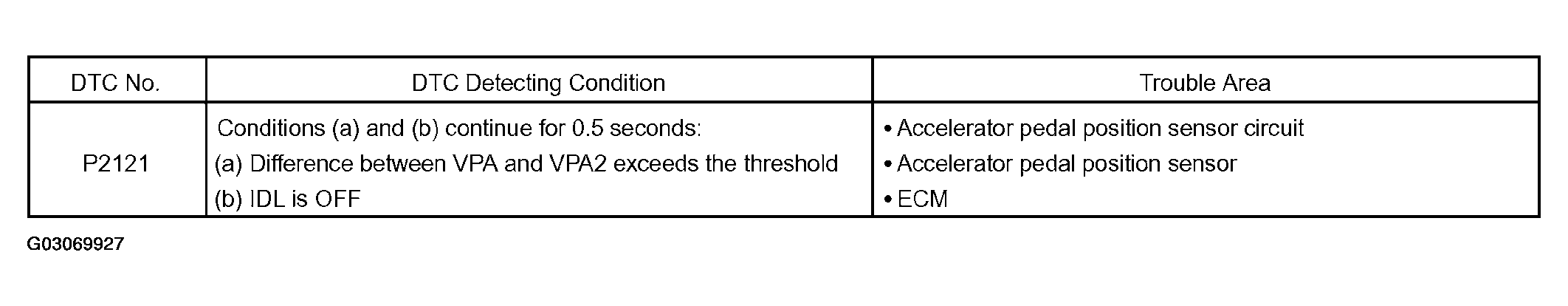

Fig 1: DTC Detecting Condition Table
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
