Automatic Transmission - Diagnostics
>>
DTC P0717: Input Speed Sensor Circuit No Signal
>>
Typical Enabling Conditions
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
Typical Enabling Conditions

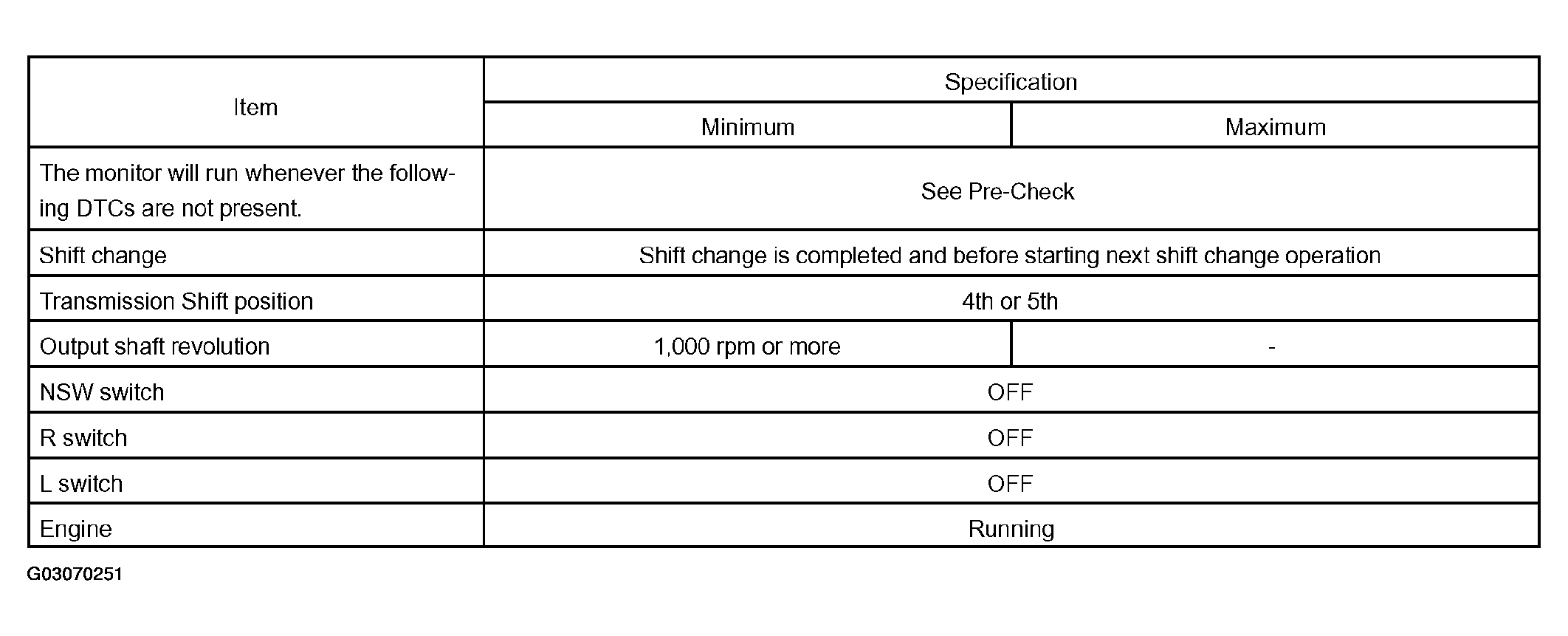

Fig 1: Typical Enabling Conditions Table
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
