Pattern Select Switch Circuit (PWR Mode Switch): Wiring Diagram

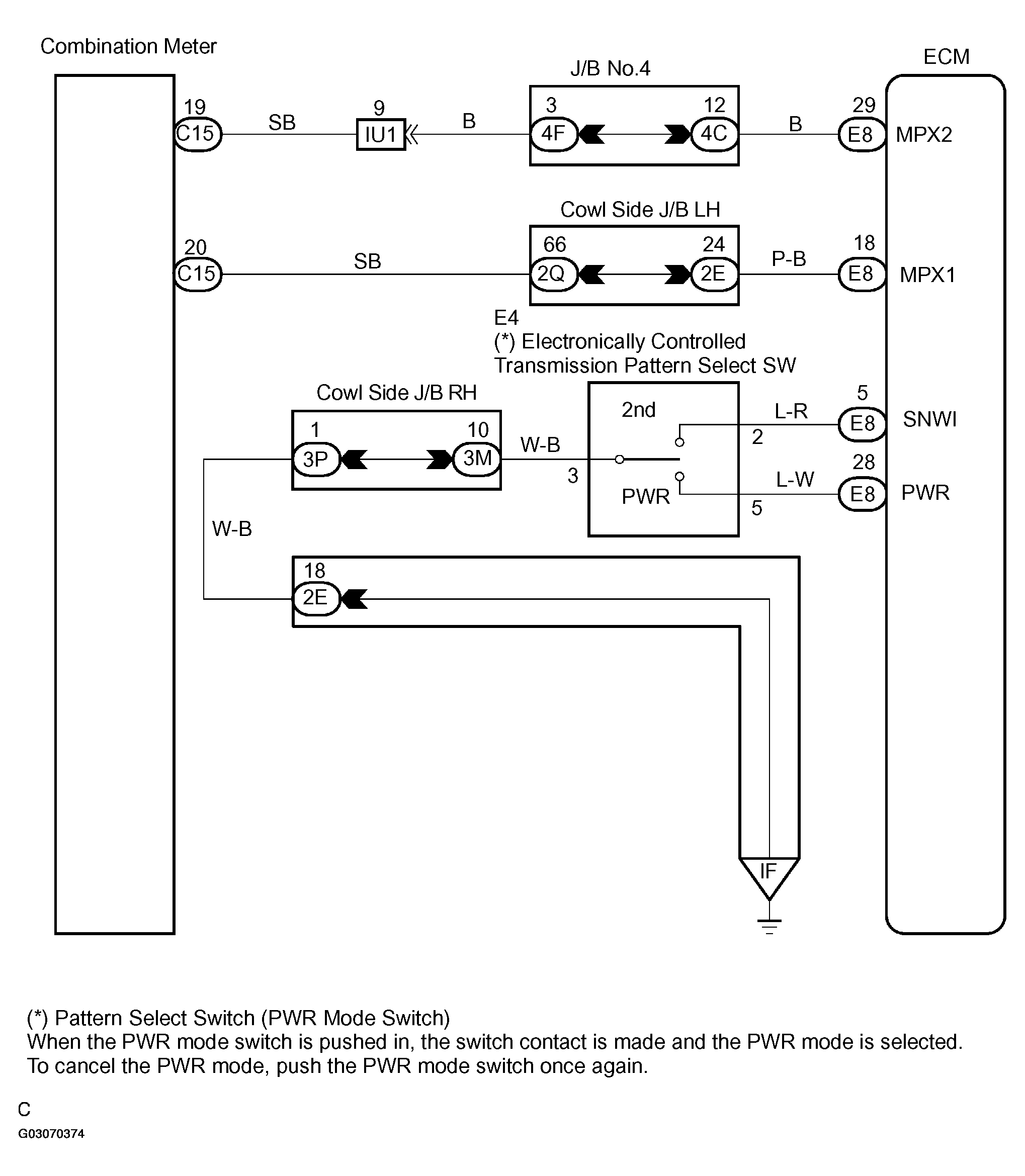

Fig 1: Pattern Select Switch Circuit Wiring Diagram
G03070374Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
