SST (Special Service Tools)

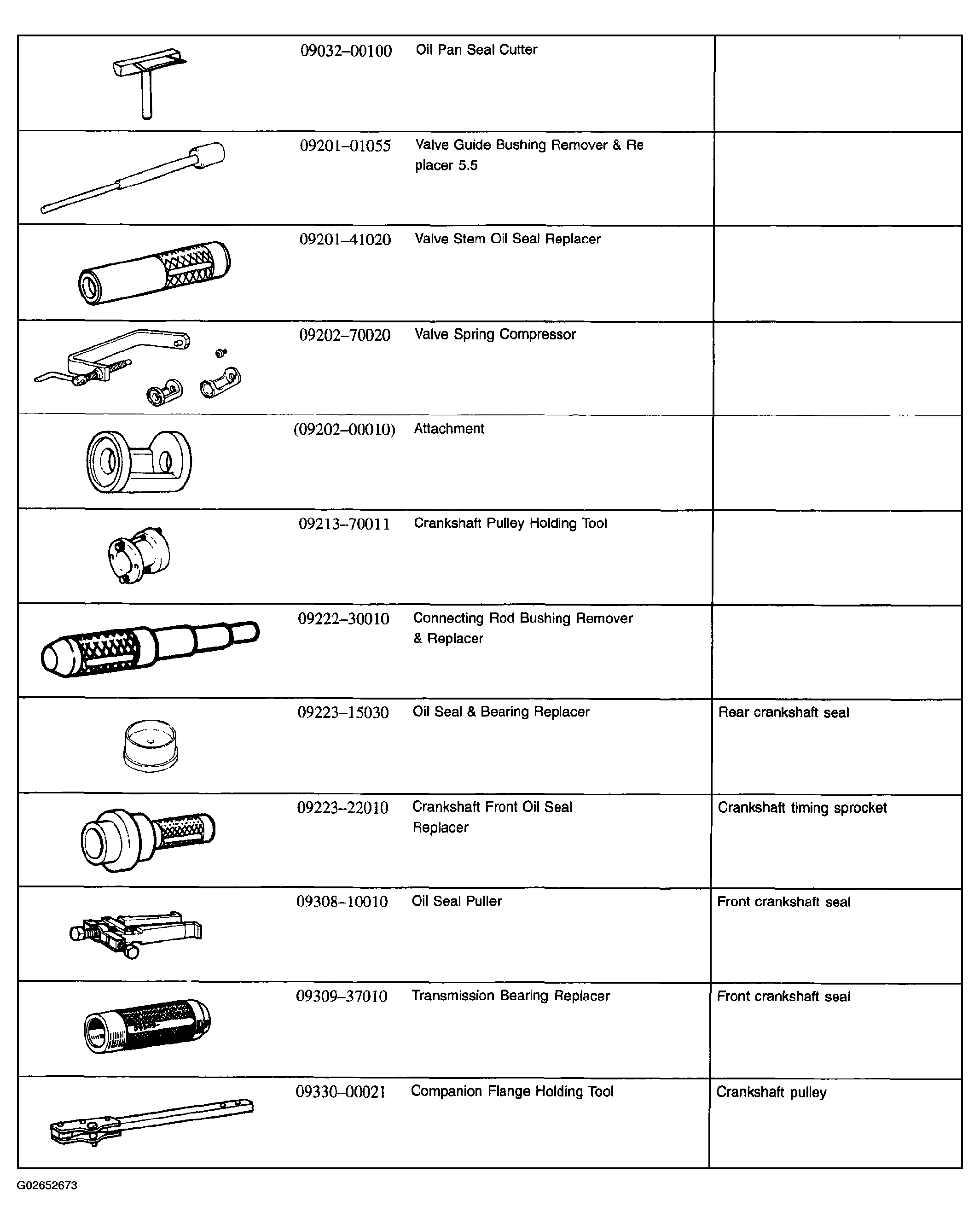

Fig 1: SST (Special Service Tools) - Engine Mechanical (1 Of 2)
G02652673Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

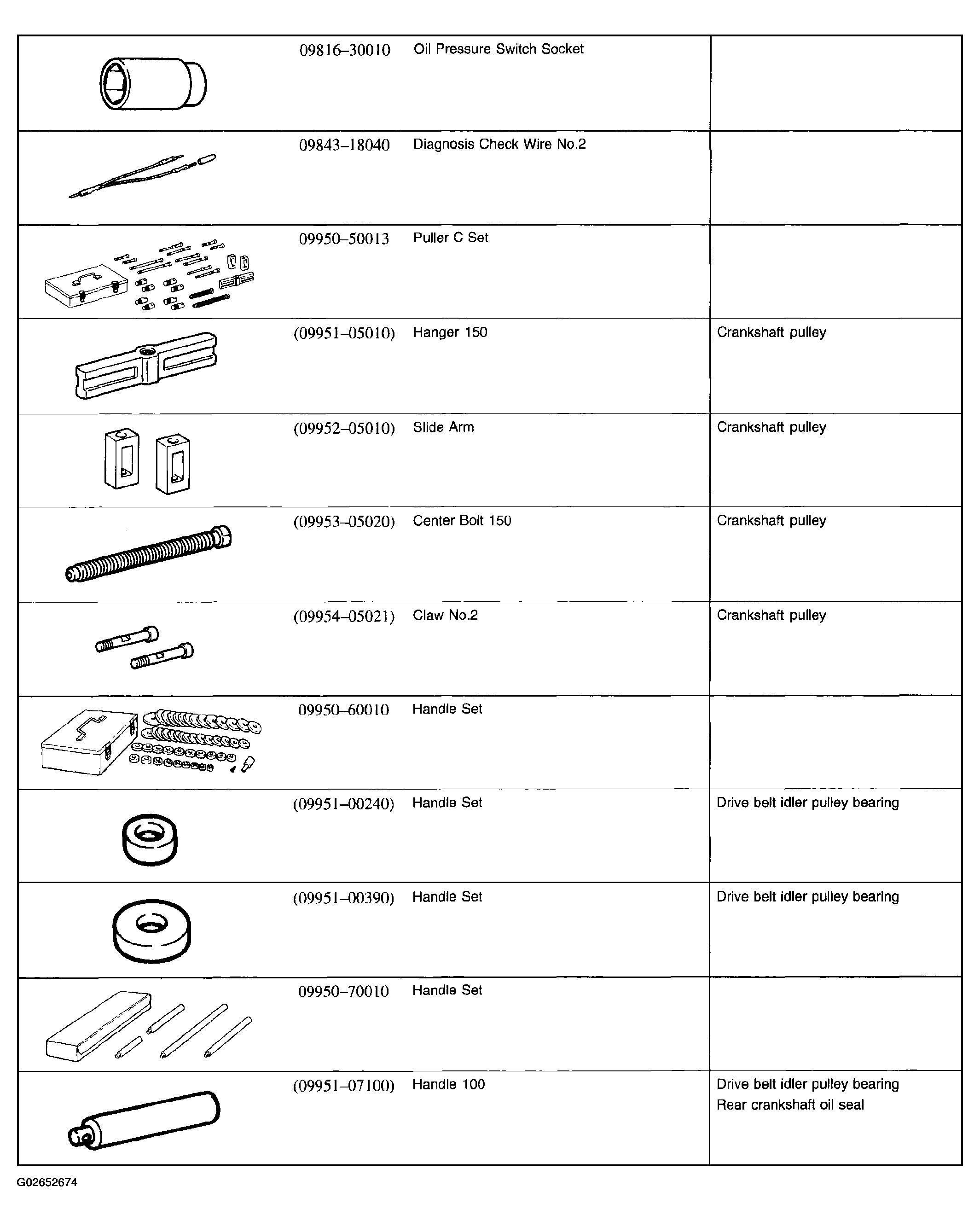

Fig 2: SST (Special Service Tools) - Engine Mechanical (2 Of 2)
G02652674Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
