Charging System: Generator: Components

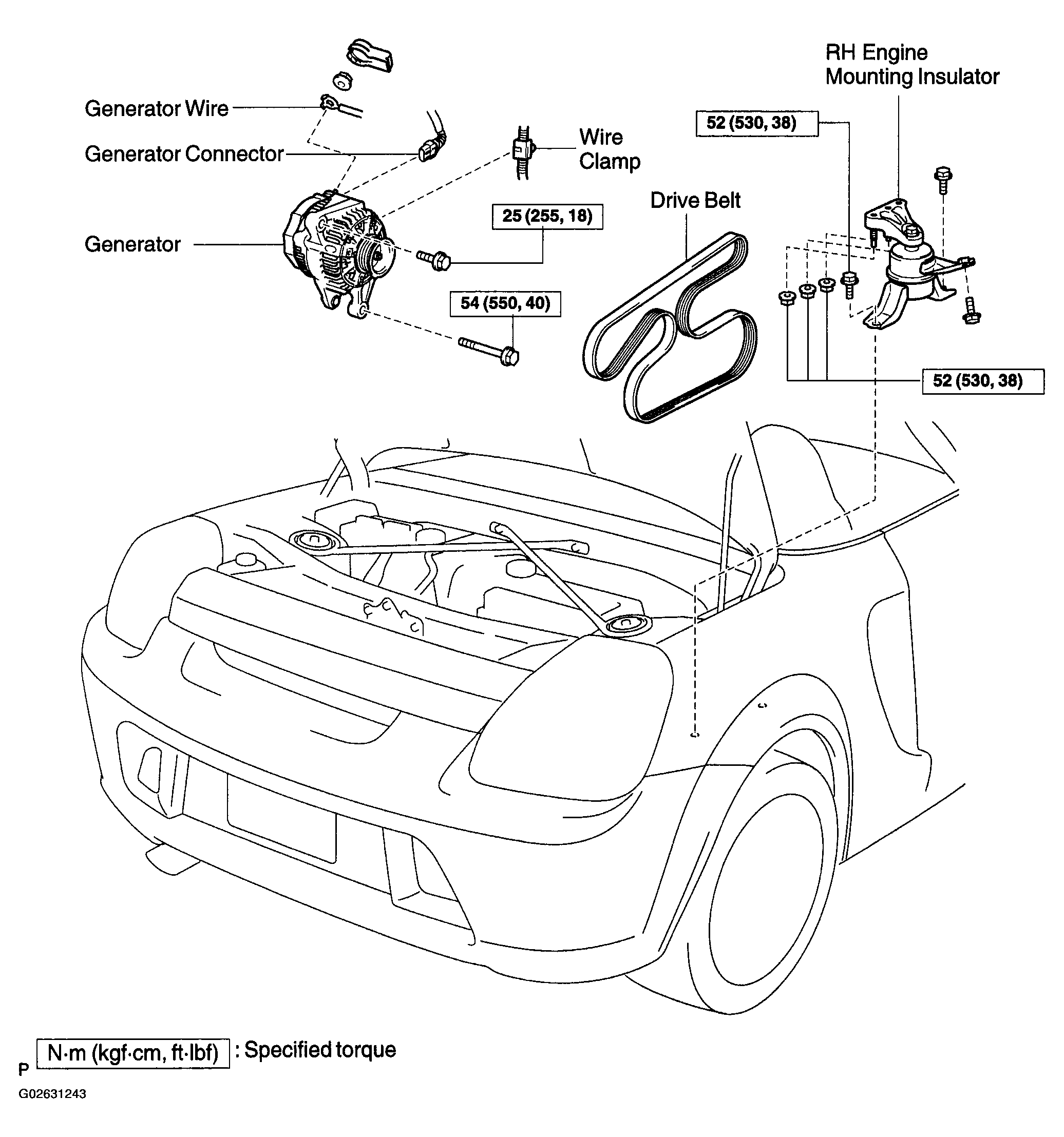

Fig 1: Identifying Generator Replacement Components
G02631243Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

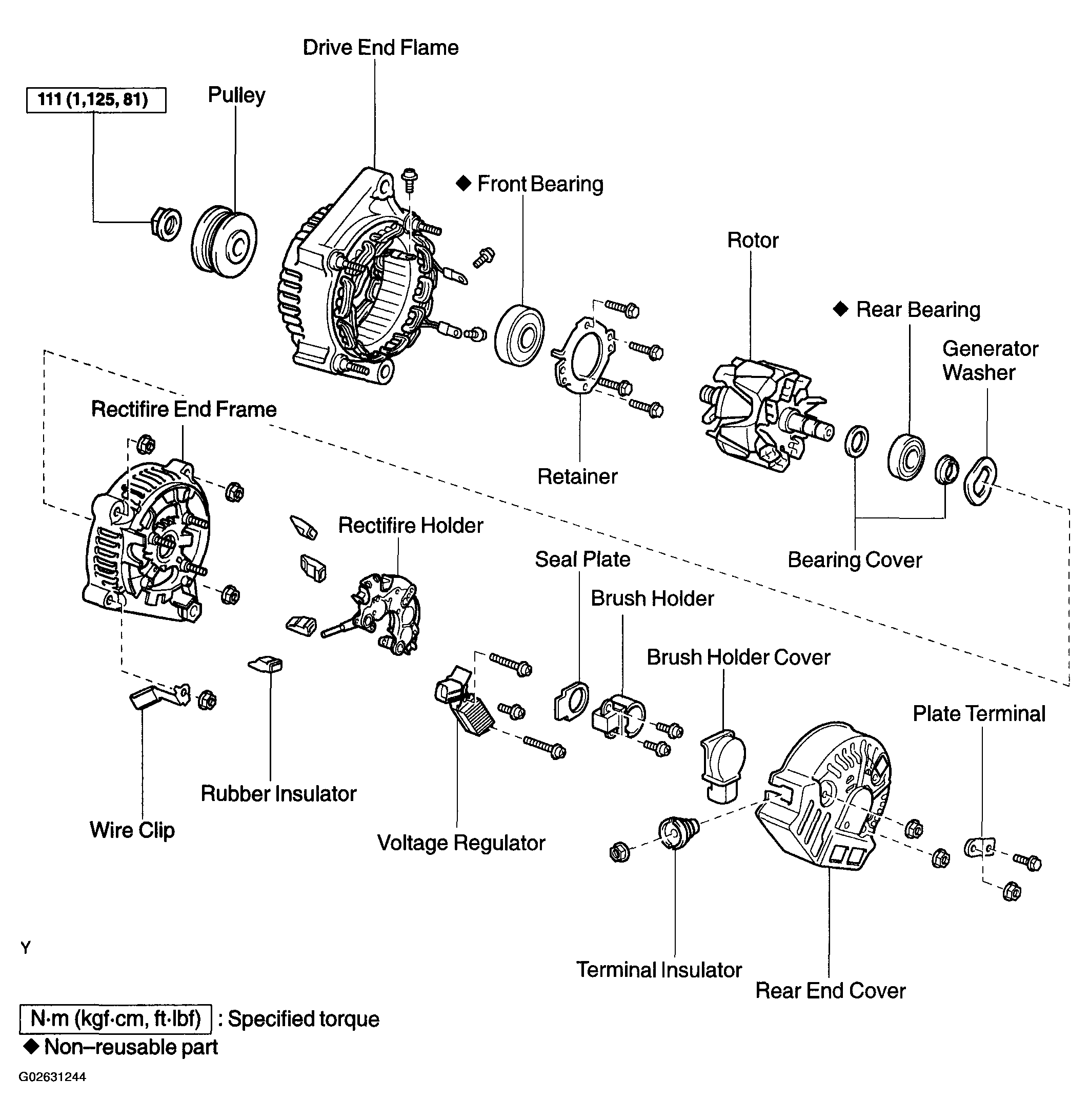

Fig 2: Exploded View Of Generator
G02631244Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
