SST (Special Service Tools)

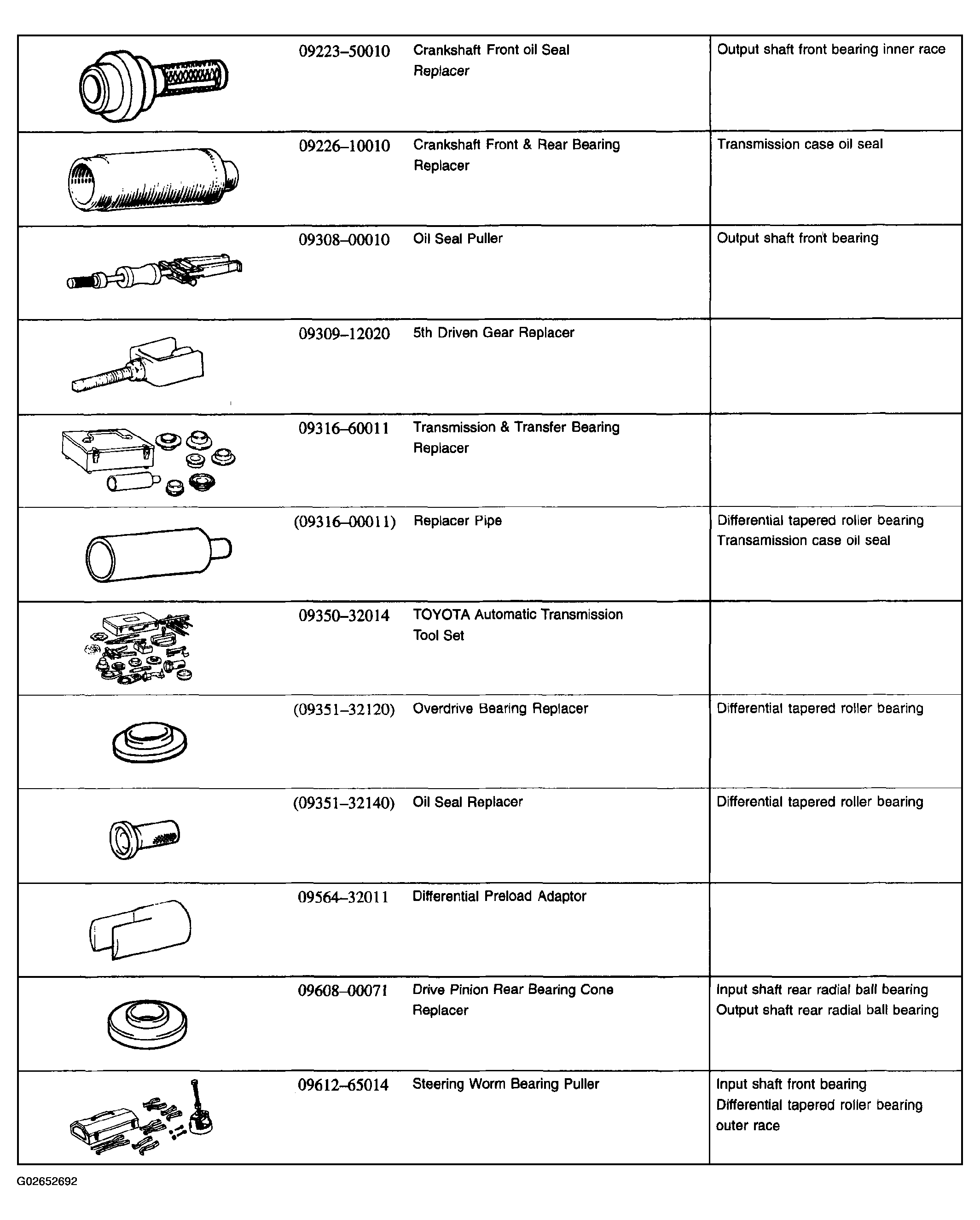

Fig 1: SST (Special Service Tools) - Manual Transaxle (C56) (1 Of 3)
G02652692Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

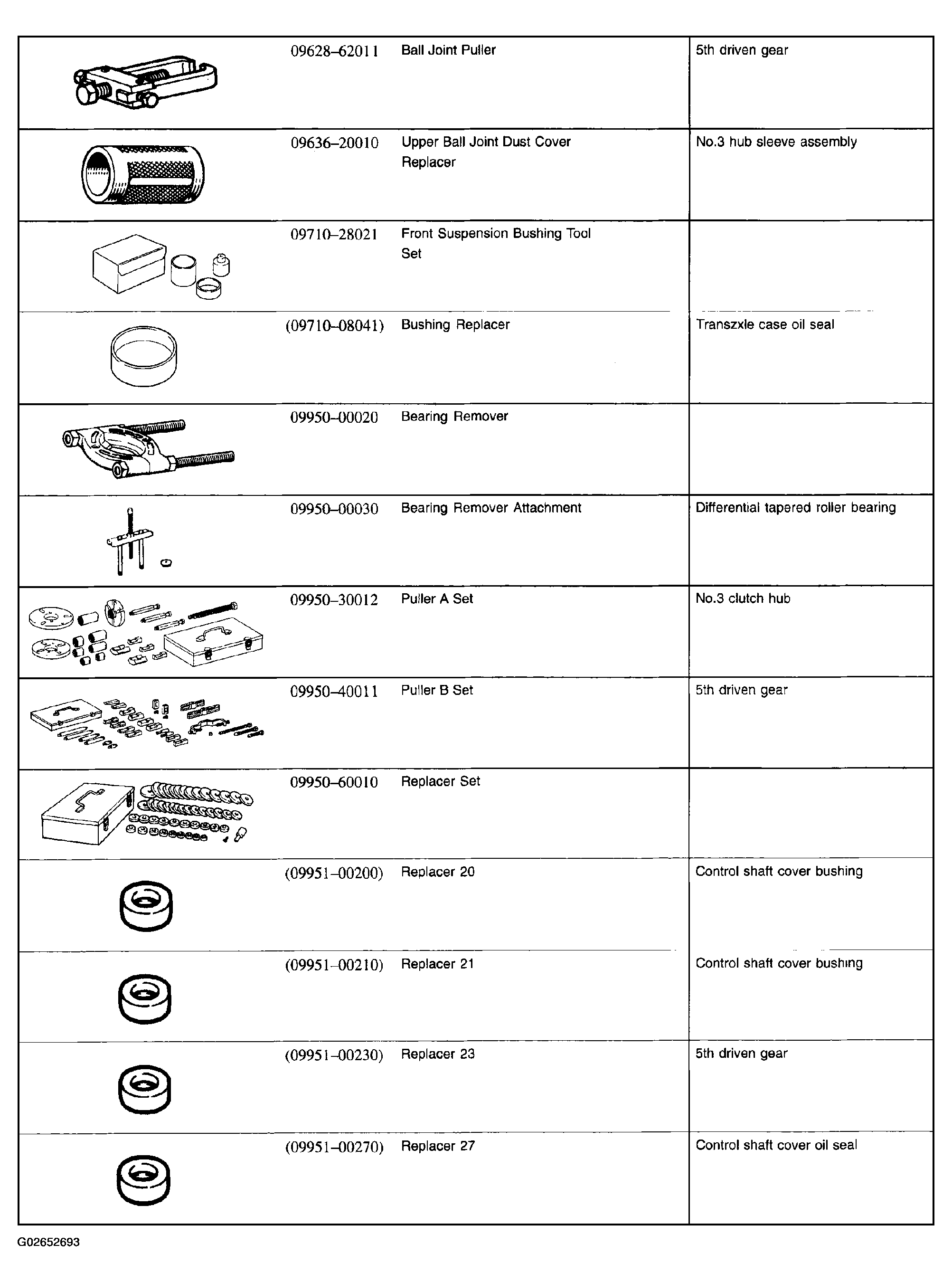

Fig 2: SST (Special Service Tools) - Manual Transaxle (C56) (2 Of 3)
G02652693Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

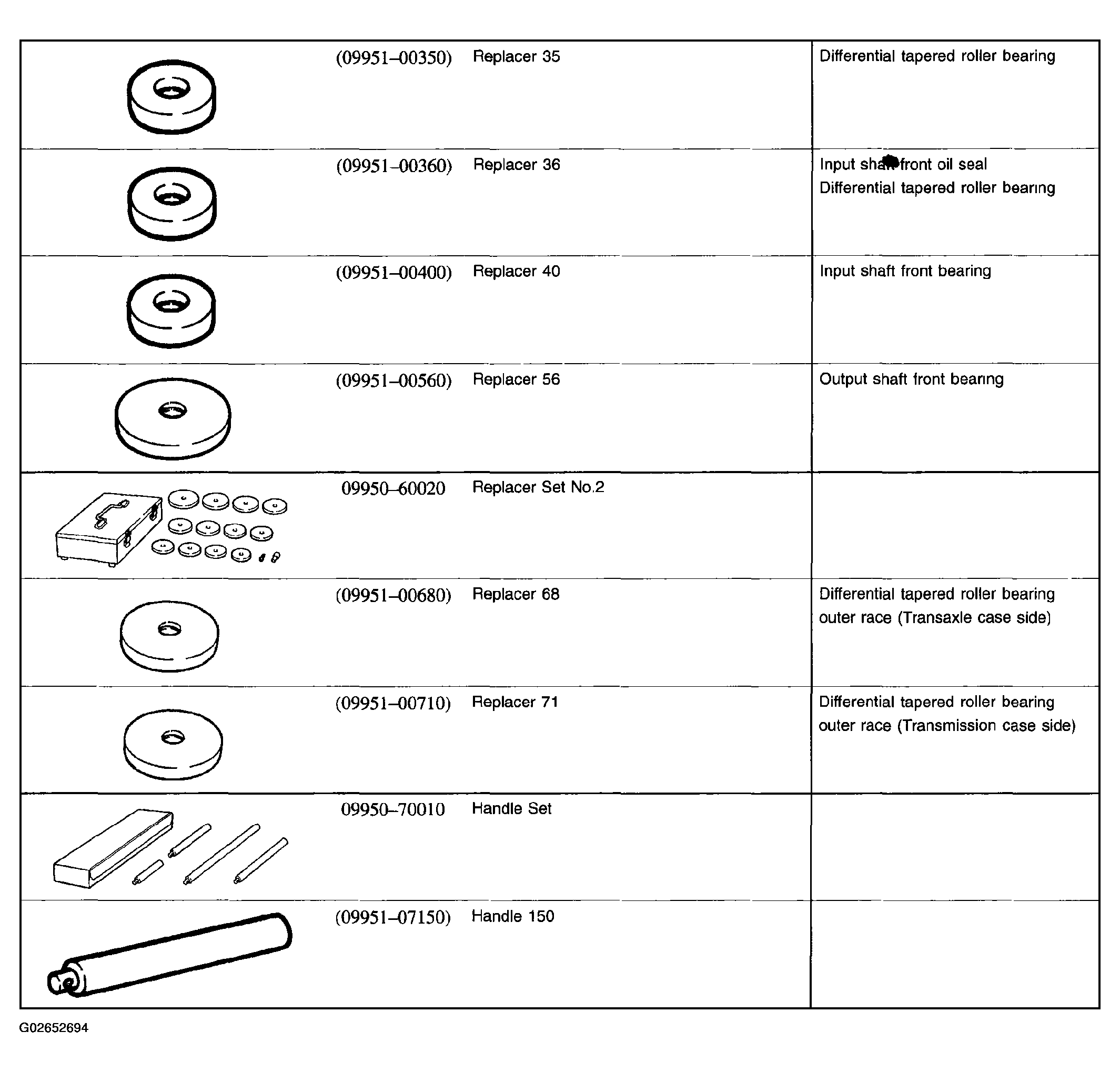

Fig 3: SST (Special Service Tools) - Manual Transaxle (C56) (3 Of 3)
G02652694Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
