Circuit Description

The transmission control ECU and ECM communicate with each other through the CAN communication line.

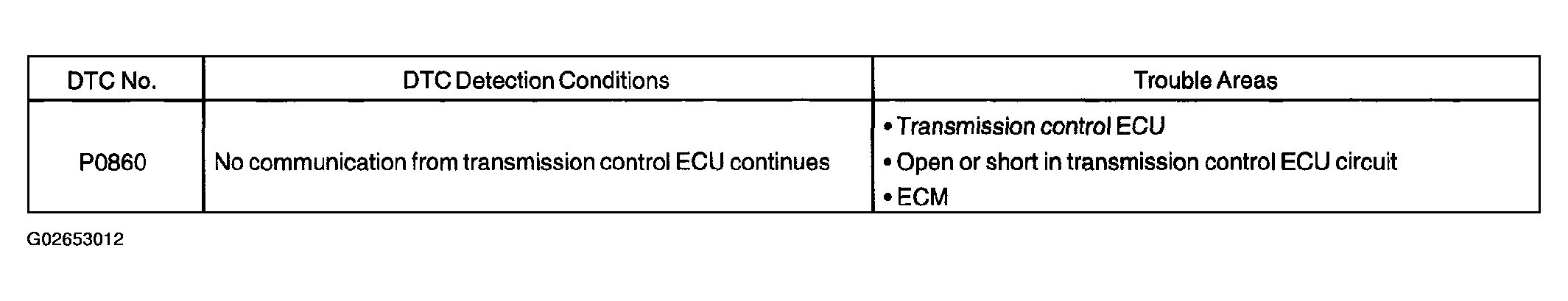

Fig 1: DTC Chart
G02653012Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
