Circuit Description

Refer to DTC P2120 on DTC P2120 THROTTLE/PEDAL POSITION SENSOR/SWITCH "D" CIRCUIT*  .

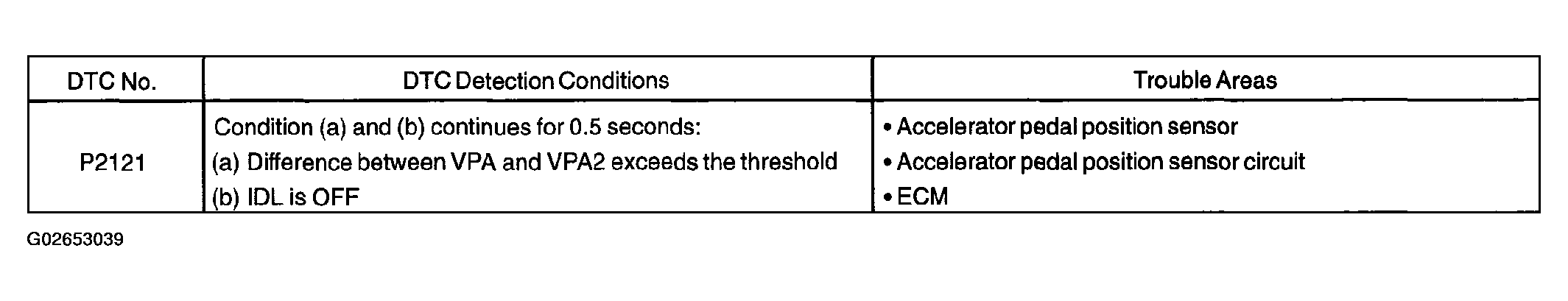

Fig 1: DTC Chart
G02653039Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
