Skid Control ECU Communication Stop Mode
SKID CONTROL ECU COMMUNICATION STOP MODE

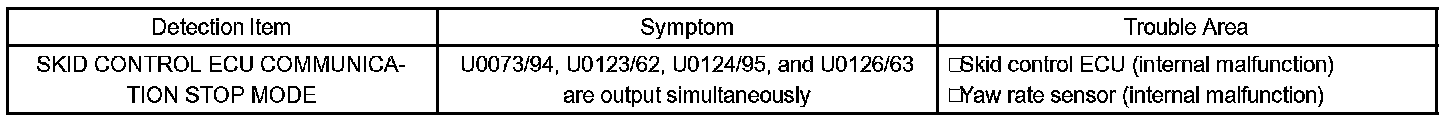

CIRCUIT DESCRIPTION

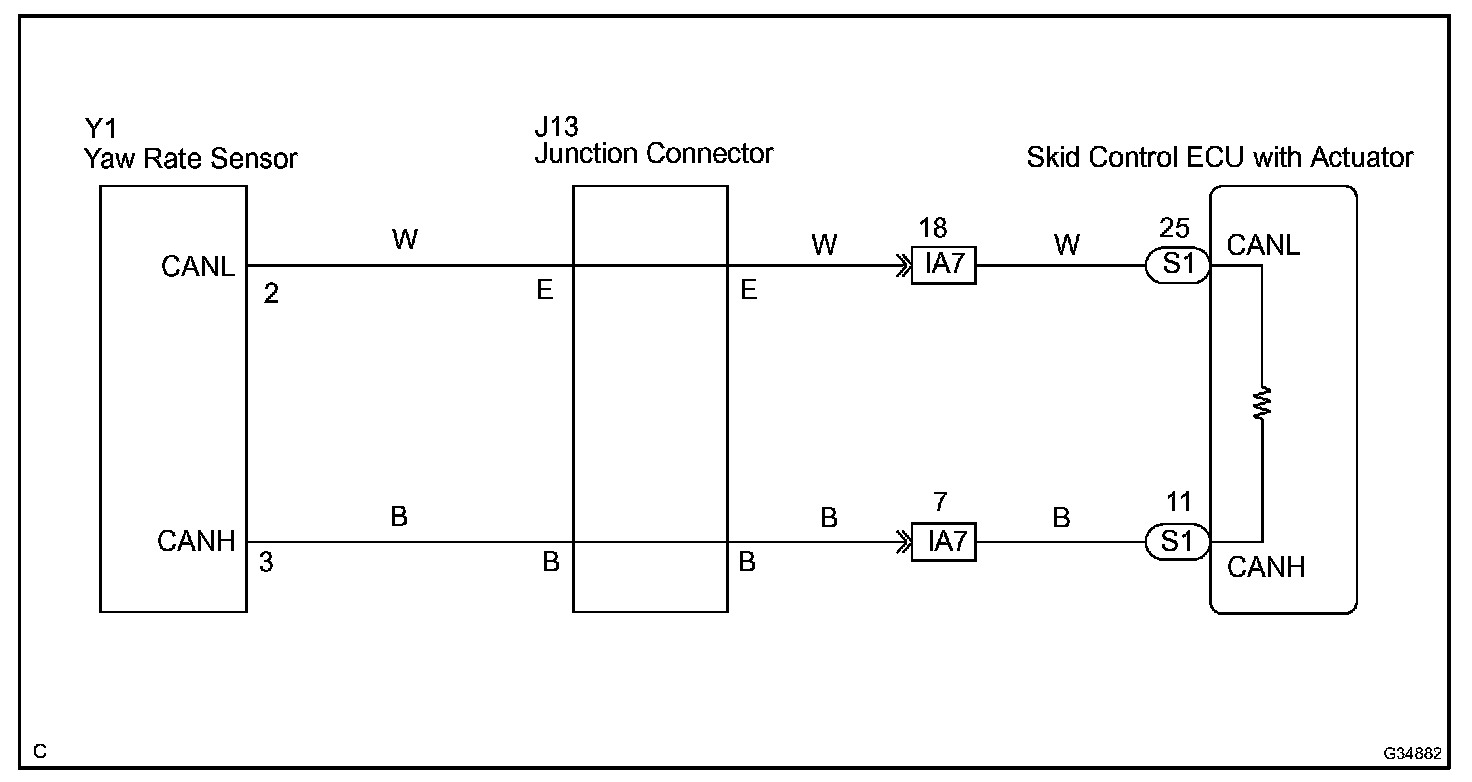

Wiring Diagram:

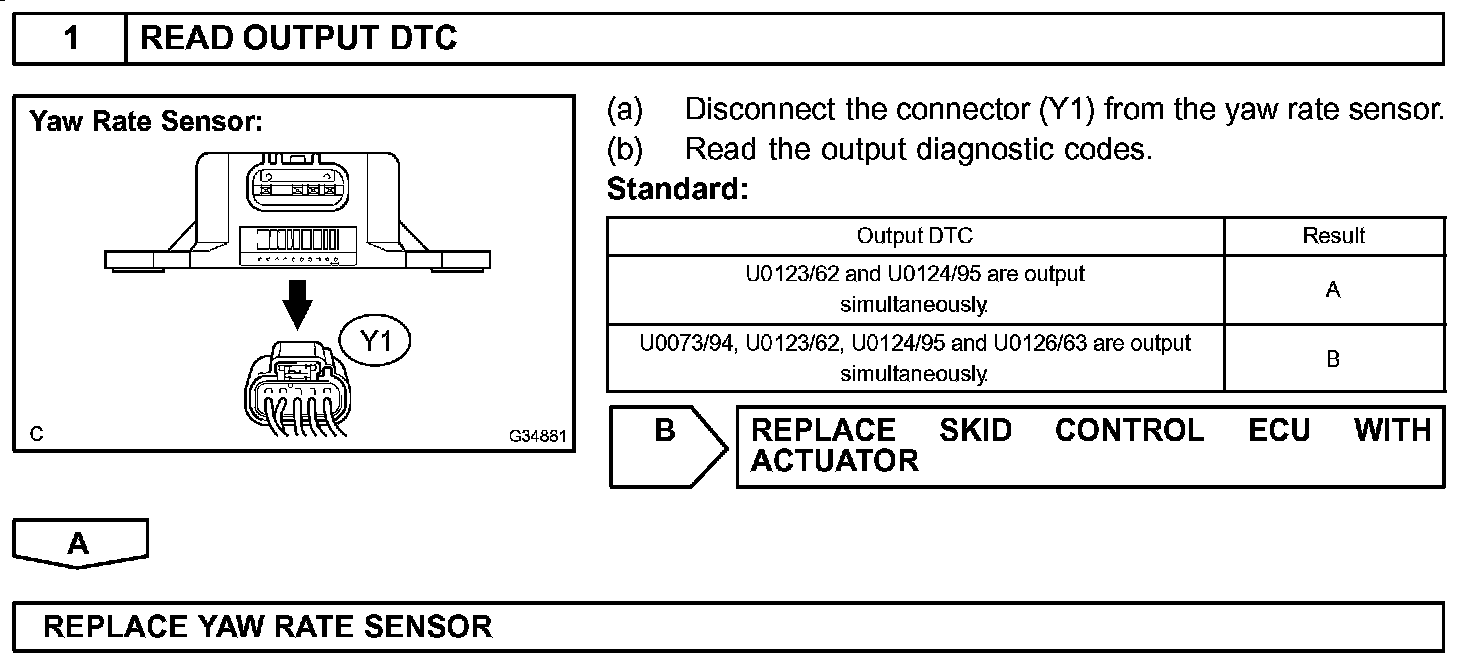

Step 1:
INSPECTION PROCEDURE
