ABS W/EBD System

TERMINALS OF ECU

Terminals Of Control Module/Pinouts:

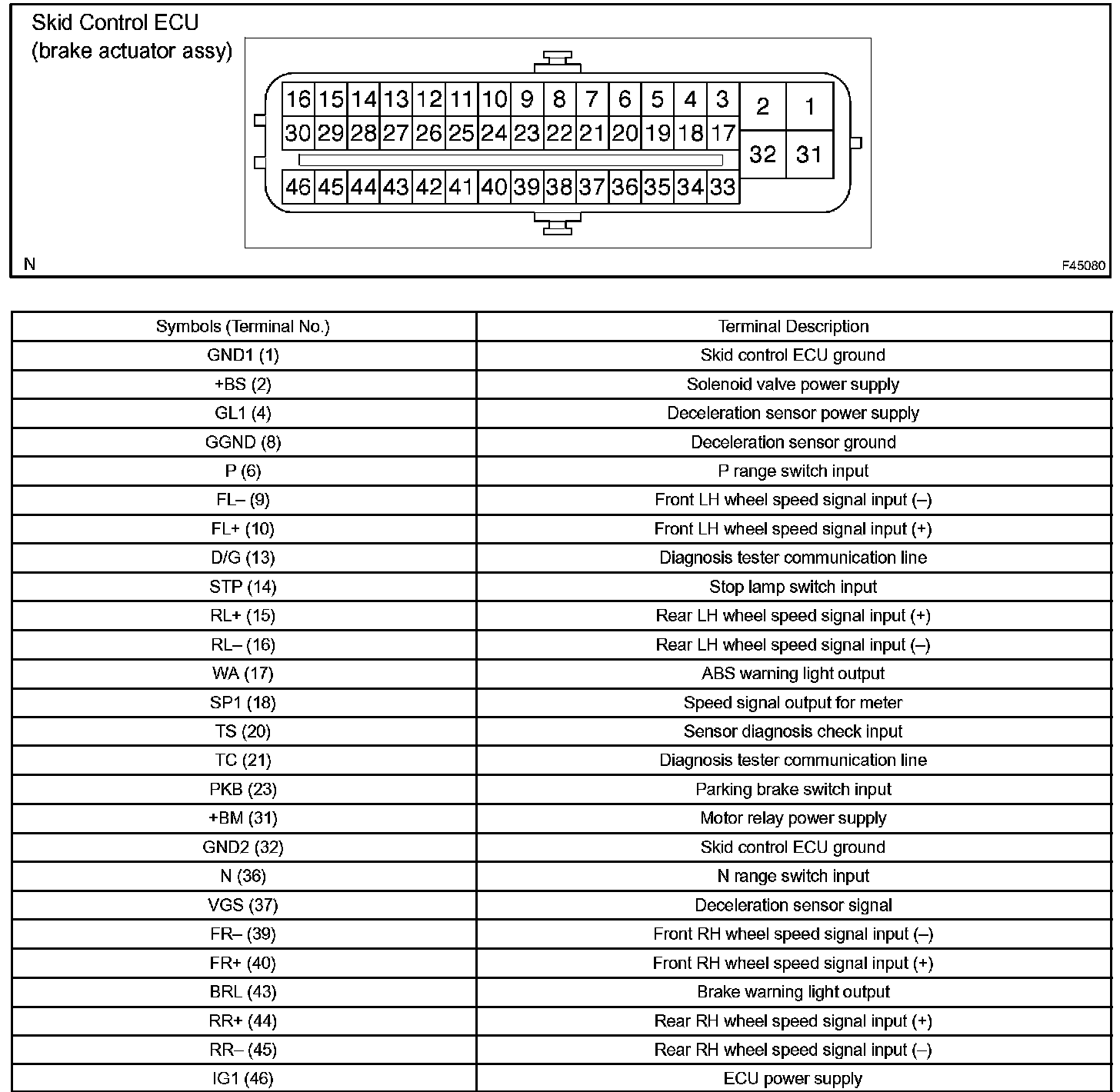

1. Terminals of ECU

2. Terminal Inspection

Terminals Of Control Module/Pinouts:

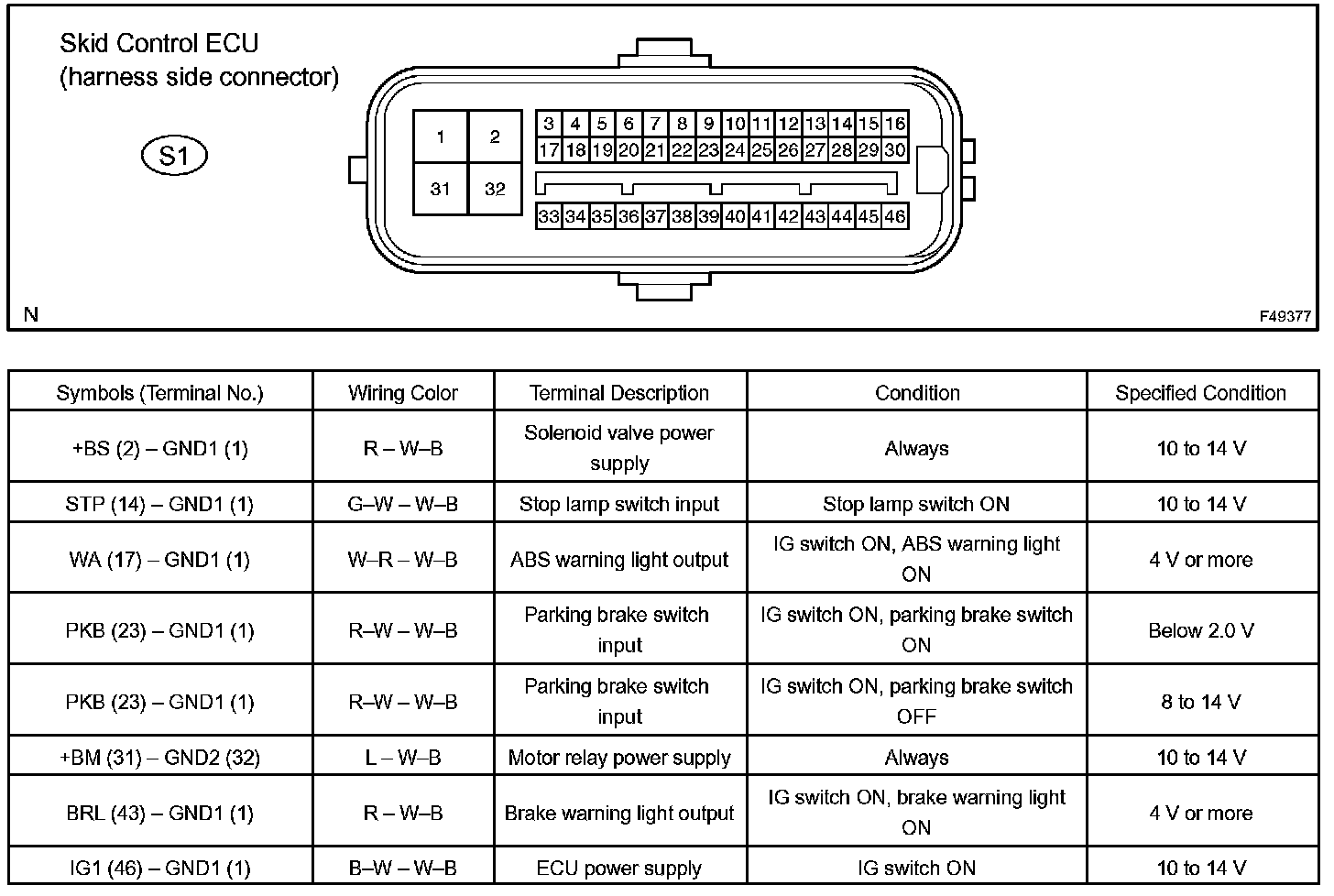

Disconnect the connector and measure the voltage on the wire harness side.

HINT: Voltage can not be measured with the connector connected to the skid control ECU as the connector is water resistance.
