Differential Assembly

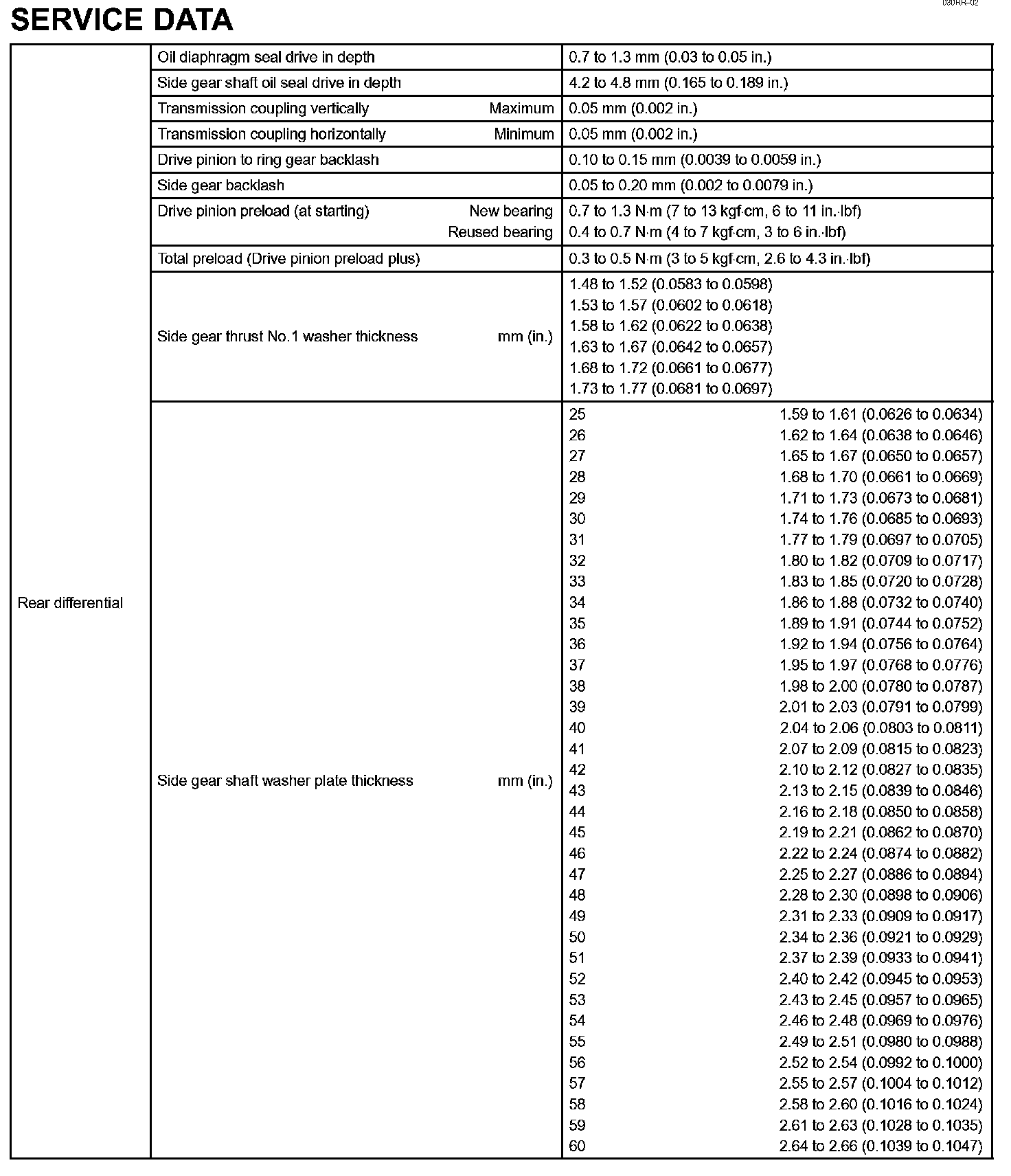

Differential - Service Data Part 1:

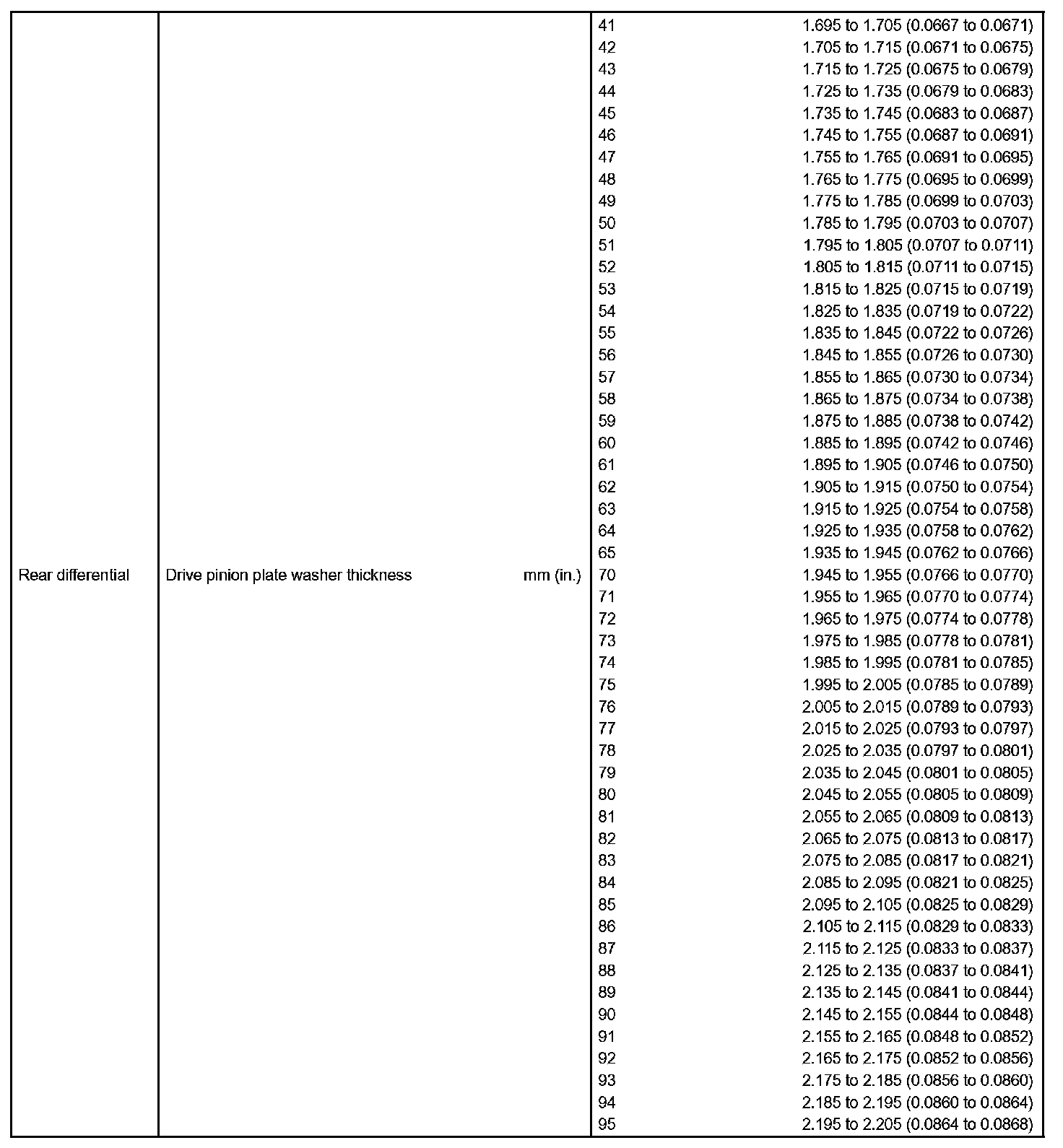

Differential - Service Data Part 2:

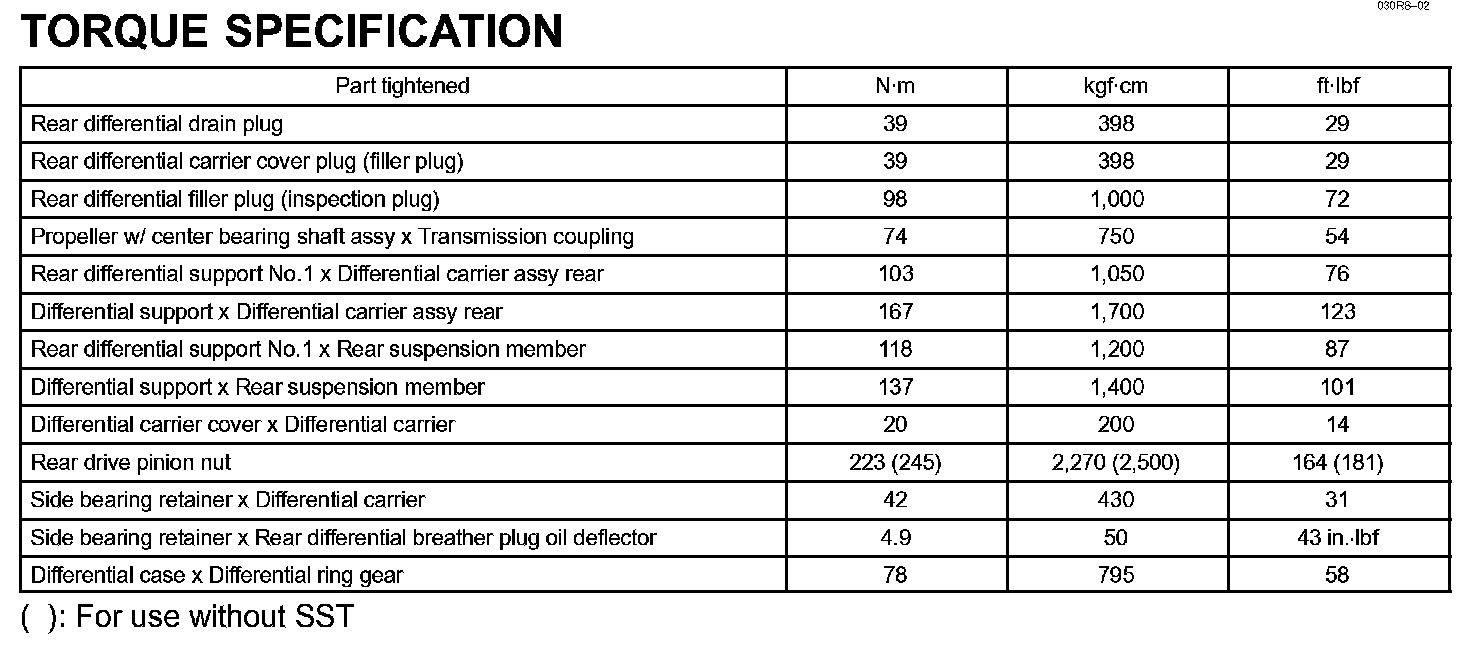

Differential - Torque Specification:
