Inspection Procedure

  1. READ VALUE ON HAND-HELD TESTER
    1. Connect the hand-held tester to the DLC3.
    2. Turn the ignition switch to the ON position.
    3. According to the display on the tester, read the "DATA LIST".
    Fig 1: Inspecting Cruise Control Switch
    G02679645Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    CCS (ECM):

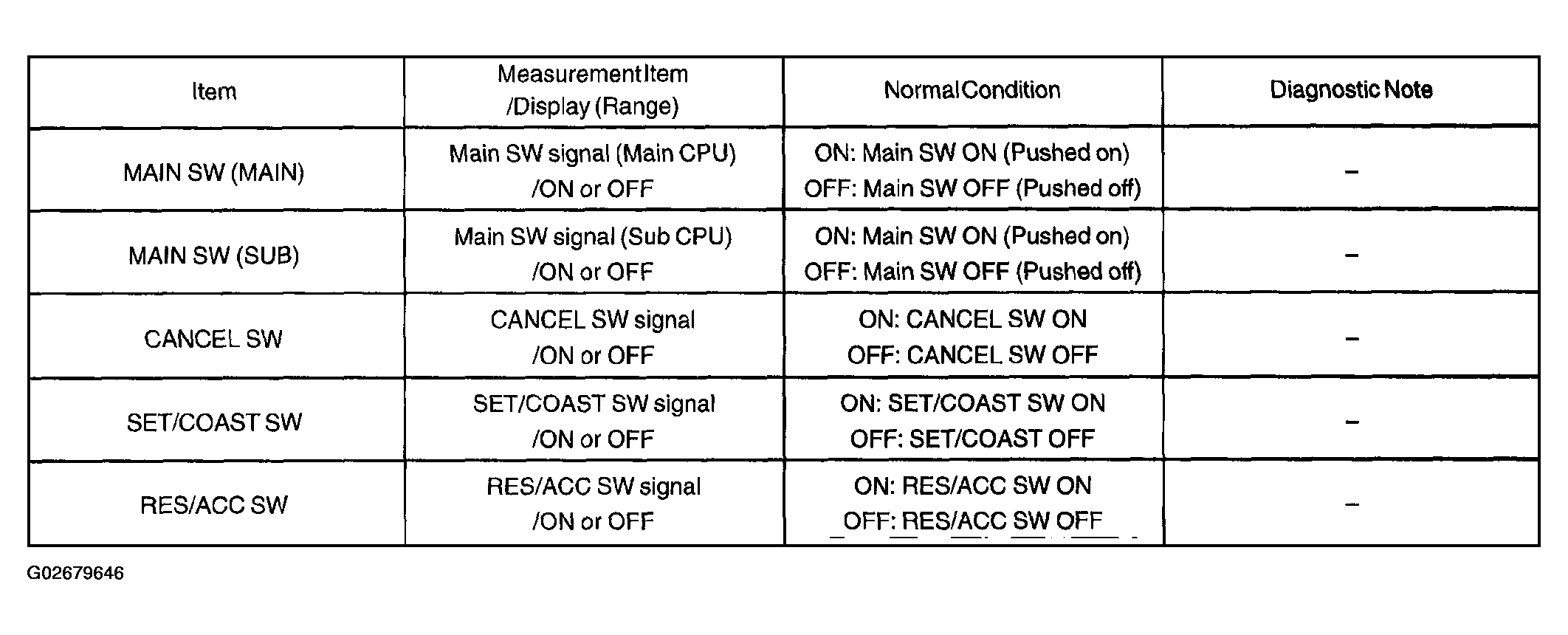

    Fig 2: Data List Item Reference Table
    G02679646Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    OK:

    When the cruise control main switch is operated, the normal conditions listed above are shown on the display.

    Result:

    DISPLAY RESULT

    OK A
    NG (All items are defective.) B
    NG (One to four items are defective.) C
    1. B: Go to step 2
    2. C: REPLACE SPIRAL CABLE SUB-ASSY (SEE  REPLACEMENT  )

    A: Go To Next Step

    PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN  PROBLEM SYMPTOMS TABLE  )

  2. INSPECT CRUISE CONTROL MAIN SWITCH ASSY
    1. Disconnect the cruise control main switch connector.
    2. Measure the resistance according to the value (s) in the table below.

    OK:

    CRUISE CONTROL MAIN SWITCH CONNECTOR RESISTANCE SPECIFICATIONS

    Tester connection Switch position Specified condition
    A-2 -A-3 Neutral Infiniti (No continuity)
    A-2 -A-3 CRUISE ON-OFF 0 Ω (Continuity)
    A-2 -A-3 RES/ACC 210 to 270 Ω
    A-2 -A-3 SET/COAST 560 to 700 a
    A-2 -A-3 CANCEL 1,380 to 1, 700 Ω.

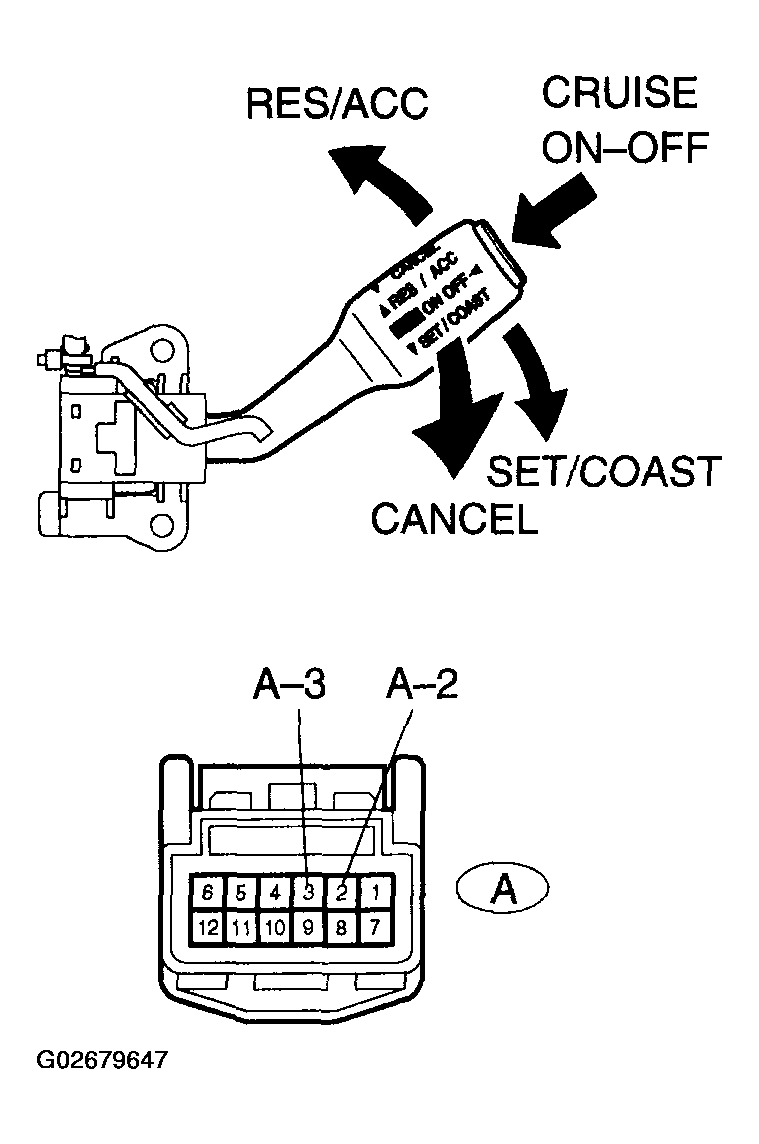

    Fig 3: Inspecting Cruise Control Main Switch Assy
    G02679647Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. NG: REPLACE  CRUISE CONTROL MAIN SWITCH ASSY  )

    OK: Go To Next Step

  3. INSPECT SPIRAL CABLE SUB-ASSY
    1. Disconnect the spiral cable vehicle side connector.
    2. Measure the resistance according to the value (s) in the table below.

    Standard:

    SPIRAL CABLE VEHICLE SIDE CONNECTOR RESISTANCE SPECIFICATIONS

    Tester connection Condition Specified condition
    A-2-C13-2 Always Below 1 Ω
    A-3-C13-3 Always Below 1 Ω

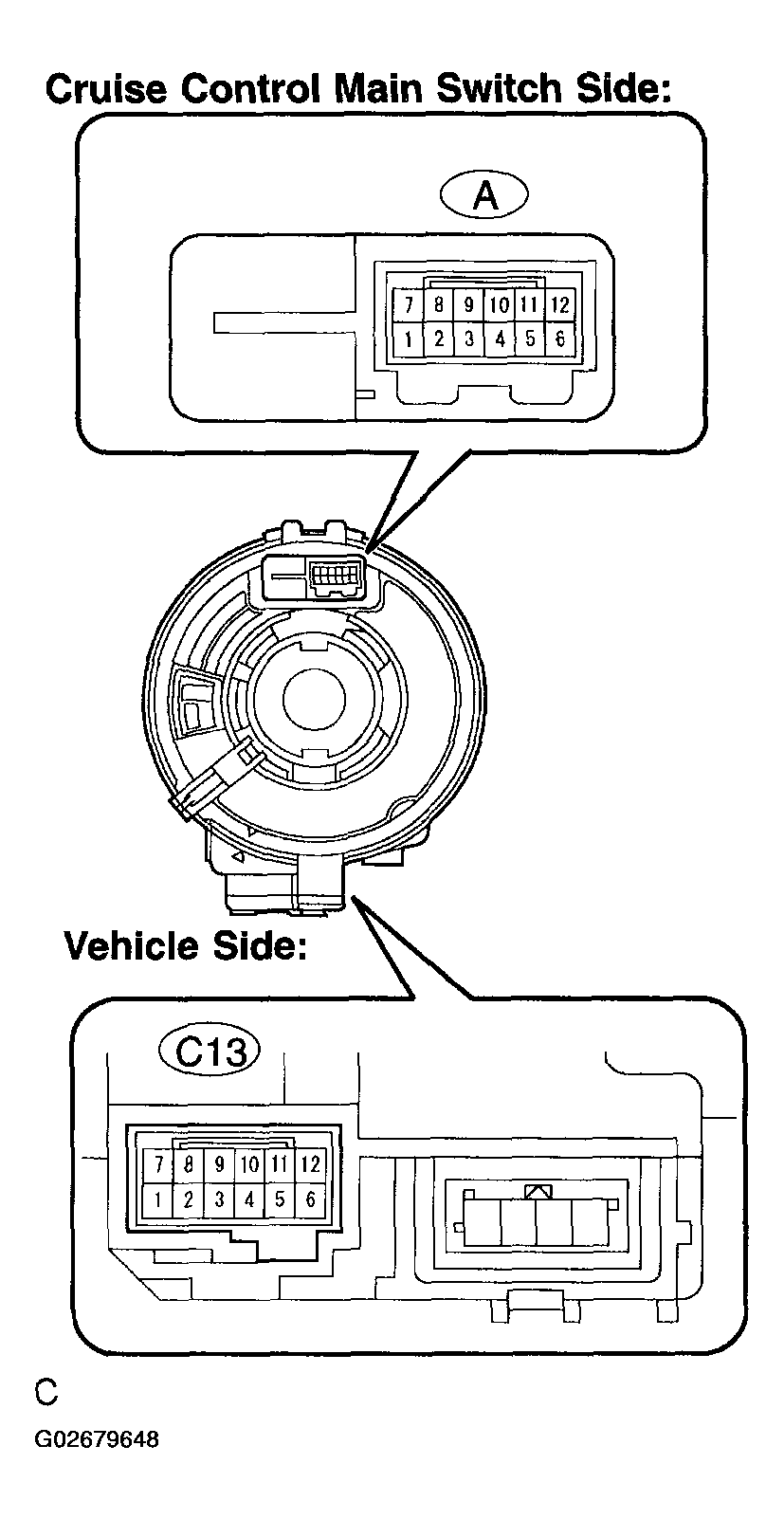

    Fig 4: Identifying Spiral Cable Vehicle Side Connector Terminals
    G02679648Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. NG: REPLACE SPIRAL CABLE SUB-ASSY (SEE  REPLACEMENT  )

    OK Go To Next Step

  4. CHECK HARNESS AND CONNECTOR (SPIRAL CABLE SUB-ASSY - ECM) (SEE  ELECTRONIC CIRCUIT INSPECTION PROCEDURE  )
    1. Disconnect the ECM connector.
    2. Measure the resistance according to the value (s) in the table below.

    Standard:

    SPIRAL CABLE SUB-ASSY AND ECM CONNECTOR RESISTANCE SPECIFICATIONS

    Tester connection Condition Specified condition
    Spiral cable (C13-2)-CCS (E5-24) Always Below 1 Ω
    CCS (E5-24)-Body ground Always 10 kΩ or higher
    Spiral cable (C13-2)-Body ground Always Below 1 Ω
    Fig 5: Identifying Spiral Cable Sub-Assy Connector Terminals
    G02679649Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

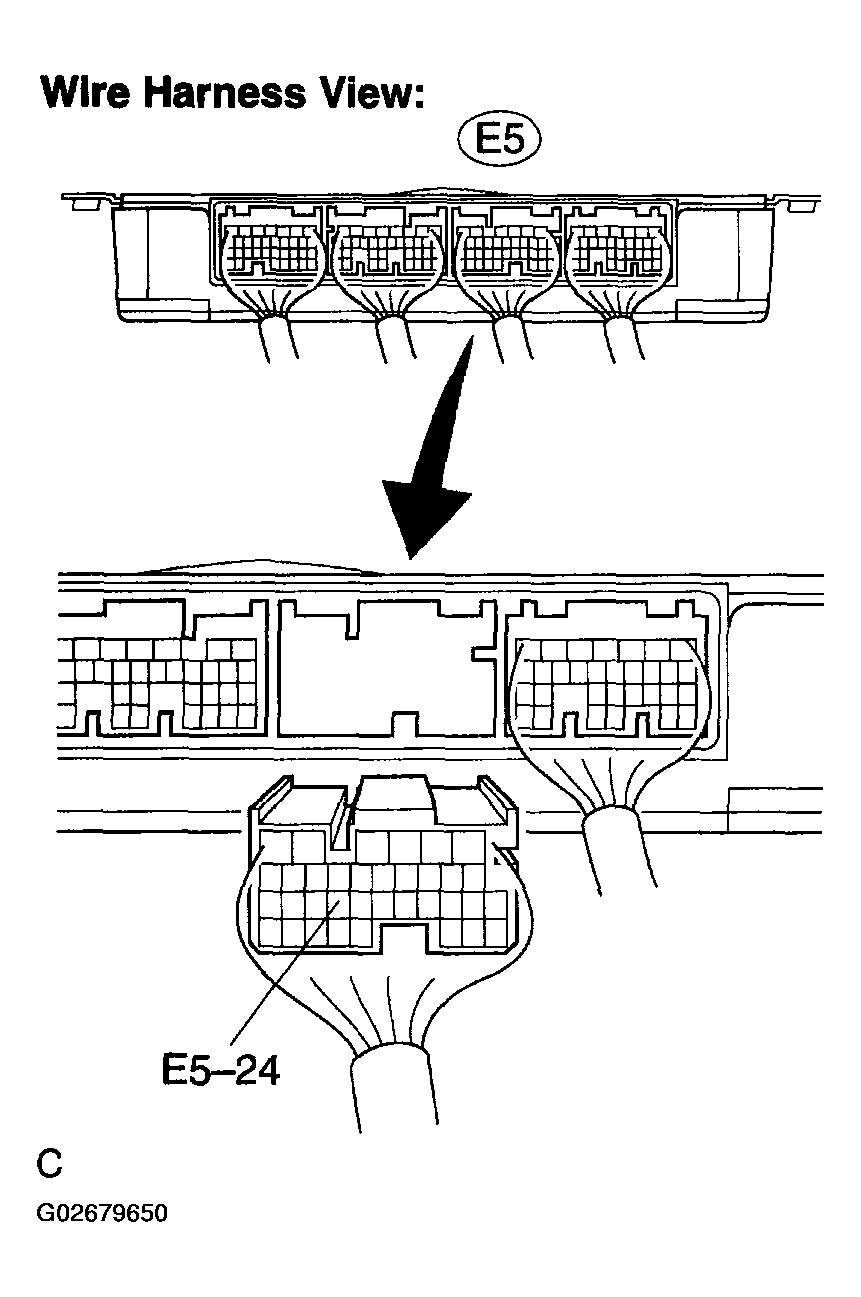

    Fig 6: Identifying ECM Connector Terminals
    G02679650Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: Go To Next Step

    REPLACE  ECM (1ZZ-FE/2ZZ-GE)  )
