Data List/Active Test

1. While the hand-held tester is connected to the DLC3 with the ignition switch in the ON position, the CRUISE CONTROL data list can be displayed. Follow the prompts on the tester screen to access the data list.

CCS (ECM):

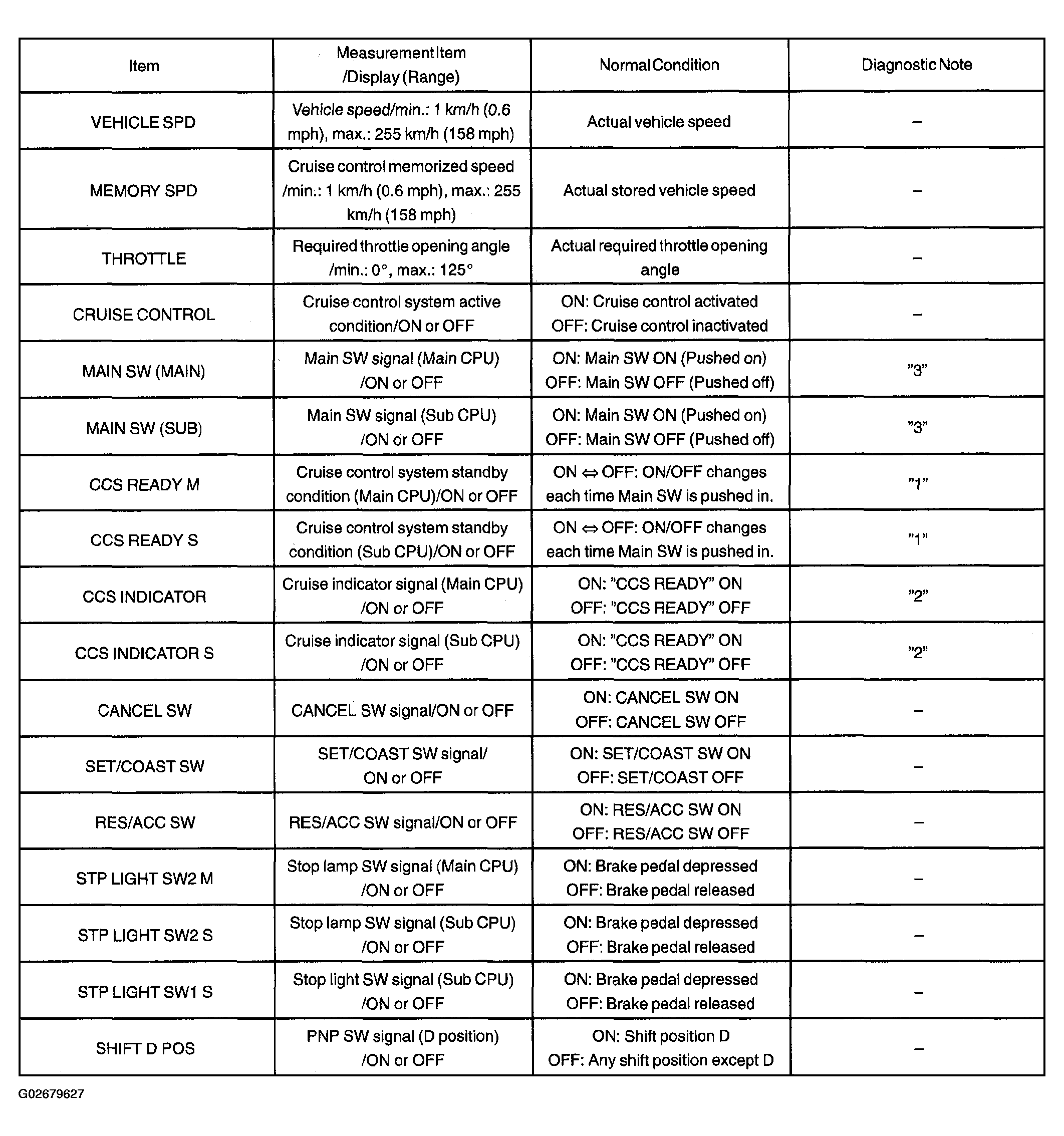

Fig 1: Data List Item Reference Table

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

"3" is OK but "1" is NG ECM failure

"1" is OK but "2" is NG DTC output or ECM failure

"3" is OK but the cruise indicator does not turn on CRUISE MAIN indicator, wire harness or ECM failure
